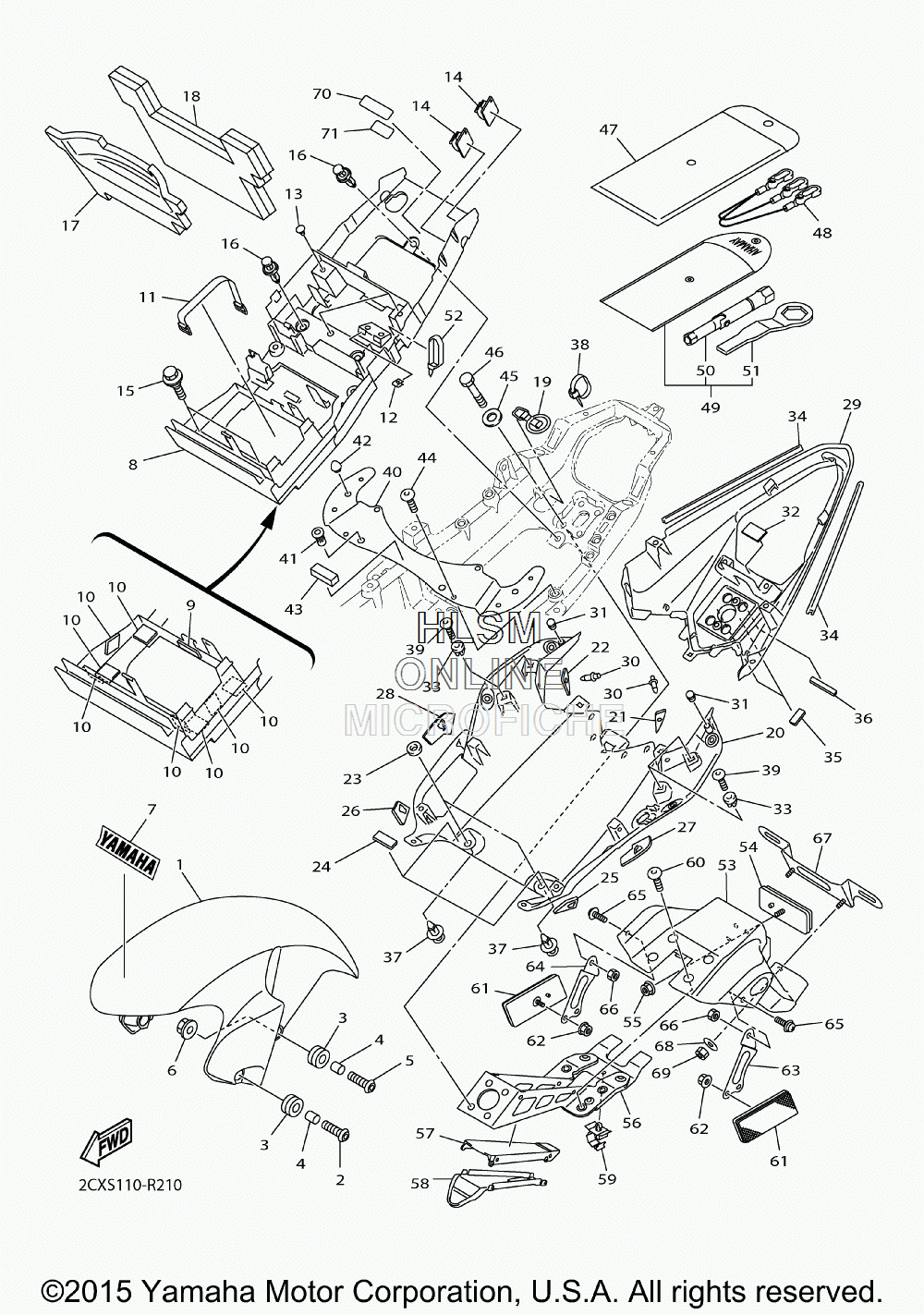

FENDER - FRONT / REAR для Yamaha YZF-R6 [YZFR6GGY] - 2016 года выпуска
-
№АртикулНазвание
-
12C0-21511-00-P0 FENDER, FRONT (FOR DPBMC)FENDER, FRONT (FOR DPBMC)
-
12C0-21511-00-PB FENDER, FRONT (FOR MNM3)FENDER, FRONT (FOR MNM3)
-
290111-06043-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
390480-14003-00 GROMMETGROMMET
-
490387-06057-00 COLLARCOLLAR
-
590111-06030-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
695702-06500-00 NUT, FLANGENUT, FLANGE
-
799244-00080-00 EMBLEM, YAMAHA (FOR MNM3)EMBLEM, YAMAHA (FOR MNM3)
-
799241-00080-00 EMBLEM, YAMAHA (FOR DPBMC)EMBLEM, YAMAHA (FOR DPBMC)
-
813S-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
951Y-21639-00-00 DAMPER 2DAMPER 2
-
1013S-21649-00-00 DAMPERDAMPER
-
11133-82131-00-00 BAND, BATTERYBAND, BATTERY
-
1290183-04039-00 NUT, SPRINGNUT, SPRING
-
1390338-06018-00 PLUGPLUG
-
1490464-13185-00 CLAMPCLAMP
-
1590109-06171-00 BOLTBOLT
-
1690269-07010-00 RIVETRIVET
-
1713S-21652-00-00 PROTECTORPROTECTOR
-
1813S-24140-00-00 DAMPER PLATE ASSYDAMPER PLATE ASSY
-
1913S-21376-00-00 BAND, TOOLBAND, TOOL
-
2013S-21611-00-P0 FENDER, REAR (FOR DPBMC)FENDER, REAR (FOR DPBMC)
-
2013S-21611-00-P9 FENDER, REAR (FOR MNM3)FENDER, REAR (FOR MNM3)
-
2113S-2172P-00-00 SEATSEAT
-
2213S-2173P-00-00 SEAT 2SEAT 2
-
2313S-21735-00-00 SEAL 2SEAL 2
-
244D9-21717-00-00 DAMPERDAMPER
-
2513S-21669-00-00 SEALSEAL
-
2613S-216A2-00-00 SEAL, 2SEAL, 2
-
2713S-216A3-00-00 SEAL, 3SEAL, 3
-
2813S-216A4-00-00 SEAL, 4SEAL, 4
-
2913S-2162R-00-P2 FENDER 2 (FOR DPBMC)FENDER 2 (FOR DPBMC)
-
2913S-2162R-00-P7 FENDER 2 (FOR MNM3)FENDER 2 (FOR MNM3)
-
3090269-06001-00 RIVETRIVET
-
3190338-06018-00 PLUGPLUG
-
325GM-27445-00-00 PLATE 1PLATE 1
-
3390480-08005-00 GROMMETGROMMET
-
3413S-21732-00-00 SEAL 1SEAL 1
-
3513S-21575-00-00 SEAL 1SEAL 1
-
3613S-2173N-00-00 SEAL 4SEAL 4
-
3790269-07010-00 RIVETRIVET
-
3890464-13073-00 CLAMPCLAMP
-
3997702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
4013S-21131-00-00 BRACKETBRACKET
-
4190179-06010-00 NUTNUT
-
424G0-21639-00-00 DAMPER 2DAMPER 2
-
435YT-24665-00-00 DAMPERDAMPER
-
4490111-06104-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4513S-21615-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
4690101-06056-00 BOLTBOLT
-
472C0-28100-00-00 TOOL KITTOOL KIT
-
482C0-21370-00-00 HELMET HANGER ASSYHELMET HANGER ASSY
-
492C0-28110-00-00 TOOL KIT, 2TOOL KIT, 2
-
504XV-2814F-00-00 ...BOX, SPARK PLUG...BOX, SPARK PLUG
-
514FM-28135-00-00 ...SPANNER, SPECIAL...SPANNER, SPECIAL
-
5290465-13M11-00 CLAMPCLAMP
-
532C0-21629-11-00 GUARD, MUDGUARD, MUD
-
543Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
5595602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5613S-21640-00-00 REAR STAY COMP.REAR STAY COMP.
-
572C0-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
582C0-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
5990464-14228-00 CLAMPCLAMP
-
6090109-06182-00 BOLTBOLT
-
613Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
6295702-05500-00 NUT, FLANGENUT, FLANGE
-
632C0-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
642C0-21689-00-00 BRACKET, REAR STAY 2BRACKET, REAR STAY 2
-
6590159-06011-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
6695602-06100-00 NUT, UNUT, U
-
675MT-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
6890201-06057-00 WASHER, PLATEWASHER, PLATE
-
6995602-06100-00 NUT, UNUT, U
-
703JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
713TB-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
