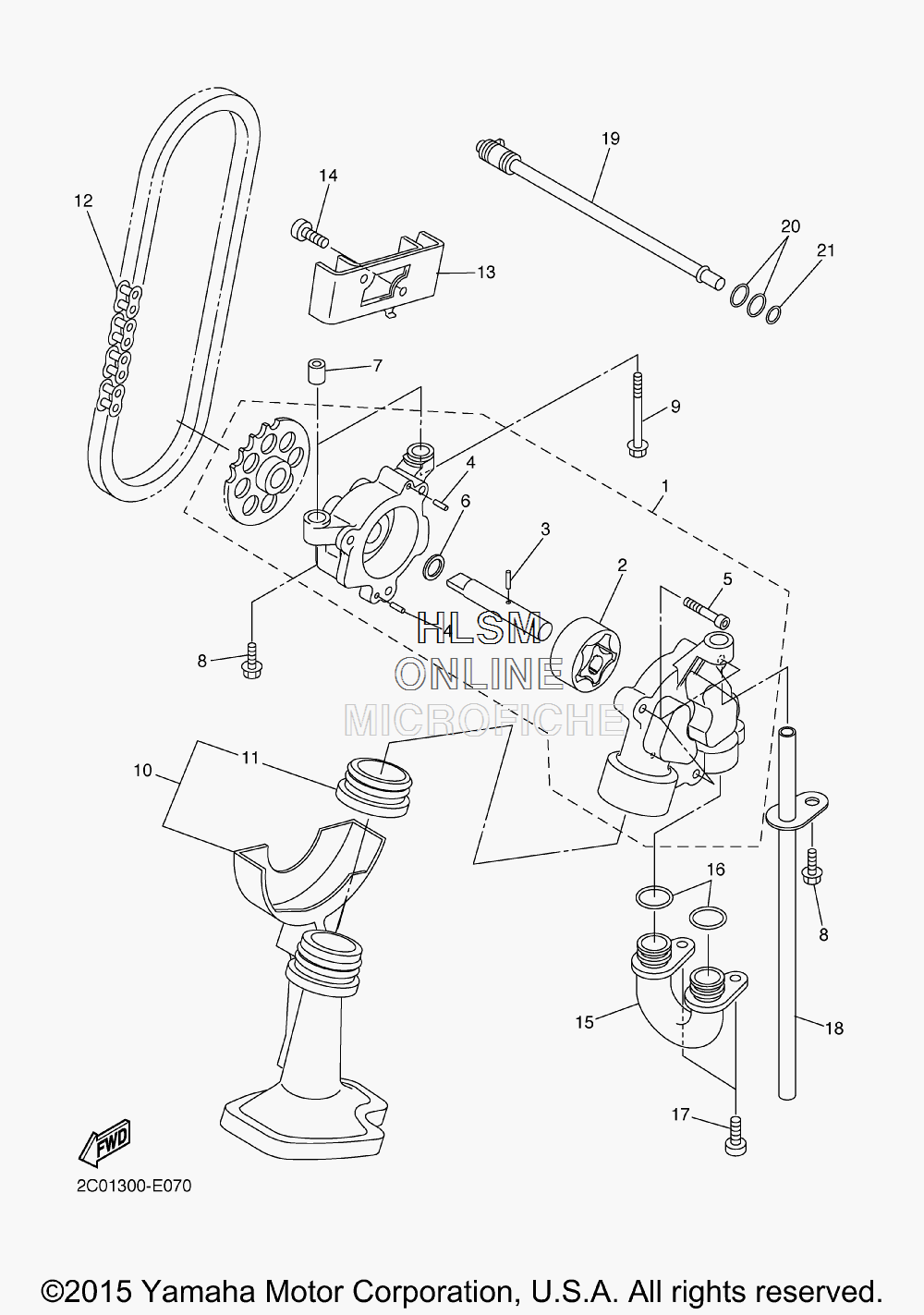

OIL PUMP для Yamaha YZF-R6 [YZFR6GGY] - 2016 года выпуска
-
№АртикулНазвание
-
12C0-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
24SV-13310-00-00 ...ROTOR ASSY 1...ROTOR ASSY 1
-
393603-17070-00 ...PIN, DOWEL...PIN, DOWEL
-
493603-09106-00 ...PIN, DOWEL...PIN, DOWEL
-
591312-06025-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
690201-113K2-00 ...WASHER, PLATE...WASHER, PLATE
-
791808-17032-00 PIN, DOWELPIN, DOWEL
-
895812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
995812-06080-00 BOLT, FLANGEBOLT, FLANGE
-
102C0-13410-00-00 STRAINER HOUSING ASSYSTRAINER HOUSING ASSY
-
112C0-13415-00-00 ...SEAL, OIL STRAINER...SEAL, OIL STRAINER
-
1294580-25074-00 CHAINCHAIN
-
132C0-13898-00-00 HOLDERHOLDER
-
1490110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
152C0-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
1693210-14003-00 O-RINGO-RING
-
1790110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
185EB-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
192C0-1316E-00-00 PIPE, DELIVERY 5PIPE, DELIVERY 5
-
2093210-09165-00 O-RINGO-RING
-
2193210-06667-00 O-RINGO-RING
