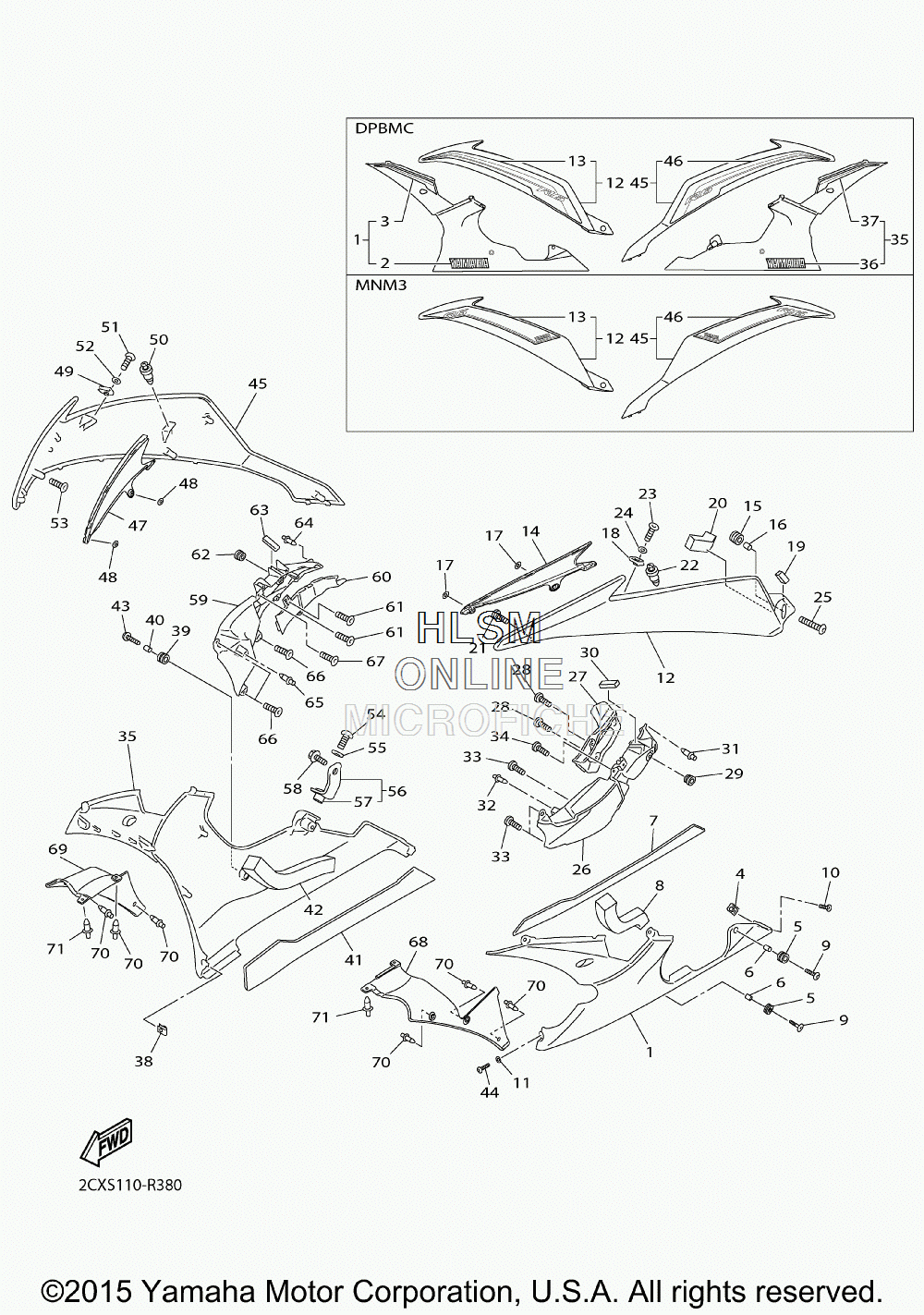

COWLING 2 для Yamaha YZF-R6 [YZFR6GGY] - 2016 года выпуска
-
№АртикулНазвание
-
113S-W2838-U0-P7 UNDER COVER COMP. 1 (FOR DPBMC)UNDER COVER COMP. 1 (FOR DPBMC)
-
113S-28385-00-P6 COVER, UNDER (FOR MNM3)COVER, UNDER (FOR MNM3)
-
299247-00240-00 ......EMBLEM, YAMAHA (FOR DPBMC)......EMBLEM, YAMAHA (FOR DPBMC)
-
32CX-283A1-40-00 ......GRAPHIC, UNDER COVER 1 (FOR DPBMC)......GRAPHIC, UNDER COVER 1 (FOR DPBMC)
-
490183-05076-00 NUT, SPRINGNUT, SPRING
-
590480-14003-00 GROMMETGROMMET
-
690387-06260-00 COLLARCOLLAR
-
713S-2838G-00-00 SEAT 1SEAT 1
-
890520-50002-00 DAMPER, PLATEDAMPER, PLATE
-
990111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1090110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190202-05180-00 WASHER, PLATEWASHER, PLATE
-
1213S-W283U-S0-PC PANEL ASSY 1 (FOR DPBMC)PANEL ASSY 1 (FOR DPBMC)
-
1213S-W283U-T0-PA PANEL ASSY 1 (FOR MNM3)PANEL ASSY 1 (FOR MNM3)
-
132CX-28391-80-00 ......GRAPHIC 1 (FOR DPBMC)......GRAPHIC 1 (FOR DPBMC)
-
132CX-28391-90-00 ......GRAPHIC 1 (FOR MNM3)......GRAPHIC 1 (FOR MNM3)
-
1413S-28219-00-00 COVER 1COVER 1
-
1590480-14003-00 GROMMETGROMMET
-
1690387-06260-00 COLLARCOLLAR
-
1790183-05M02-00 NUT, SPRINGNUT, SPRING
-
1890183-05076-00 NUT, SPRINGNUT, SPRING
-
1913S-28415-00-00 DAMPER 1DAMPER 1
-
2090520-50001-00 DAMPER, PLATEDAMPER, PLATE
-
2197707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2290269-07007-00 RIVETRIVET
-
2390110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2490202-05180-00 WASHER, PLATEWASHER, PLATE
-
2590111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2613S-2137U-00-00 GUIDE, AIR 1GUIDE, AIR 1
-
2713S-2137K-00-00 GUIDE, AIR 3GUIDE, AIR 3
-
2897702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
2990480-01558-00 GROMMETGROMMET
-
3013S-28217-00-00 DAMPER 1DAMPER 1
-
3190269-06008-00 RIVETRIVET
-
3290269-06081-00 RIVETRIVET
-
3397707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
3497702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
3513S-W2839-U0-P7 UNDER COVER COMP. 2 (FOR DPBMC)UNDER COVER COMP. 2 (FOR DPBMC)
-
3513S-28395-00-P6 COVER, UNDER 2 (FOR MNM3)COVER, UNDER 2 (FOR MNM3)
-
3699247-00240-00 ......EMBLEM, YAMAHA (FOR DPBMC)......EMBLEM, YAMAHA (FOR DPBMC)
-
372CX-283A2-40-00 ......GRAPHIC, UNDER COVER 2 (FOR DPBMC)......GRAPHIC, UNDER COVER 2 (FOR DPBMC)
-
3890183-05076-00 NUT, SPRINGNUT, SPRING
-
3990480-14003-00 GROMMETGROMMET
-
4090387-06260-00 COLLARCOLLAR
-
4113S-2848K-00-00 SEAT 2SEAT 2
-
4213S-2847R-00-00 DAMPER 10DAMPER 10
-
4390111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4490110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4513S-W283V-S0-PC PANEL ASSY 2 (FOR DPBMC)PANEL ASSY 2 (FOR DPBMC)
-
4513S-W283V-T0-PA PANEL ASSY 2 (FOR MNM3)PANEL ASSY 2 (FOR MNM3)
-
462CX-28392-80-00 ......GRAPHIC 2 (FOR DPBMC)......GRAPHIC 2 (FOR DPBMC)
-
462CX-28392-90-00 ......GRAPHIC 2 (FOR MNM3)......GRAPHIC 2 (FOR MNM3)
-
4713S-28229-00-00 COVER 2COVER 2
-
4890183-05M02-00 NUT, SPRINGNUT, SPRING
-
4990183-05076-00 NUT, SPRINGNUT, SPRING
-
5090269-07007-00 RIVETRIVET
-
5190110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5290202-05180-00 WASHER, PLATEWASHER, PLATE
-
5397707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
5490109-06207-00 BOLTBOLT
-
5590202-10024-00 WASHER, PLATEWASHER, PLATE
-
5613S-2836G-00-00 BRACKET 4BRACKET 4
-
5790179-06059-00 ...NUT...NUT
-
5890105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
5913S-2137V-00-00 GUIDE, AIR 2GUIDE, AIR 2
-
6013S-2137L-00-00 GUIDE, AIR 4GUIDE, AIR 4
-
6197702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
6290480-01558-00 GROMMETGROMMET
-
6313S-28217-00-00 DAMPER 1DAMPER 1
-
6490269-06008-00 RIVETRIVET
-
6590269-06081-00 RIVETRIVET
-
6697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
6797702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
6813S-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
6913S-2836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
7090269-06008-00 RIVETRIVET
-
7190269-06002-00 RIVETRIVET
