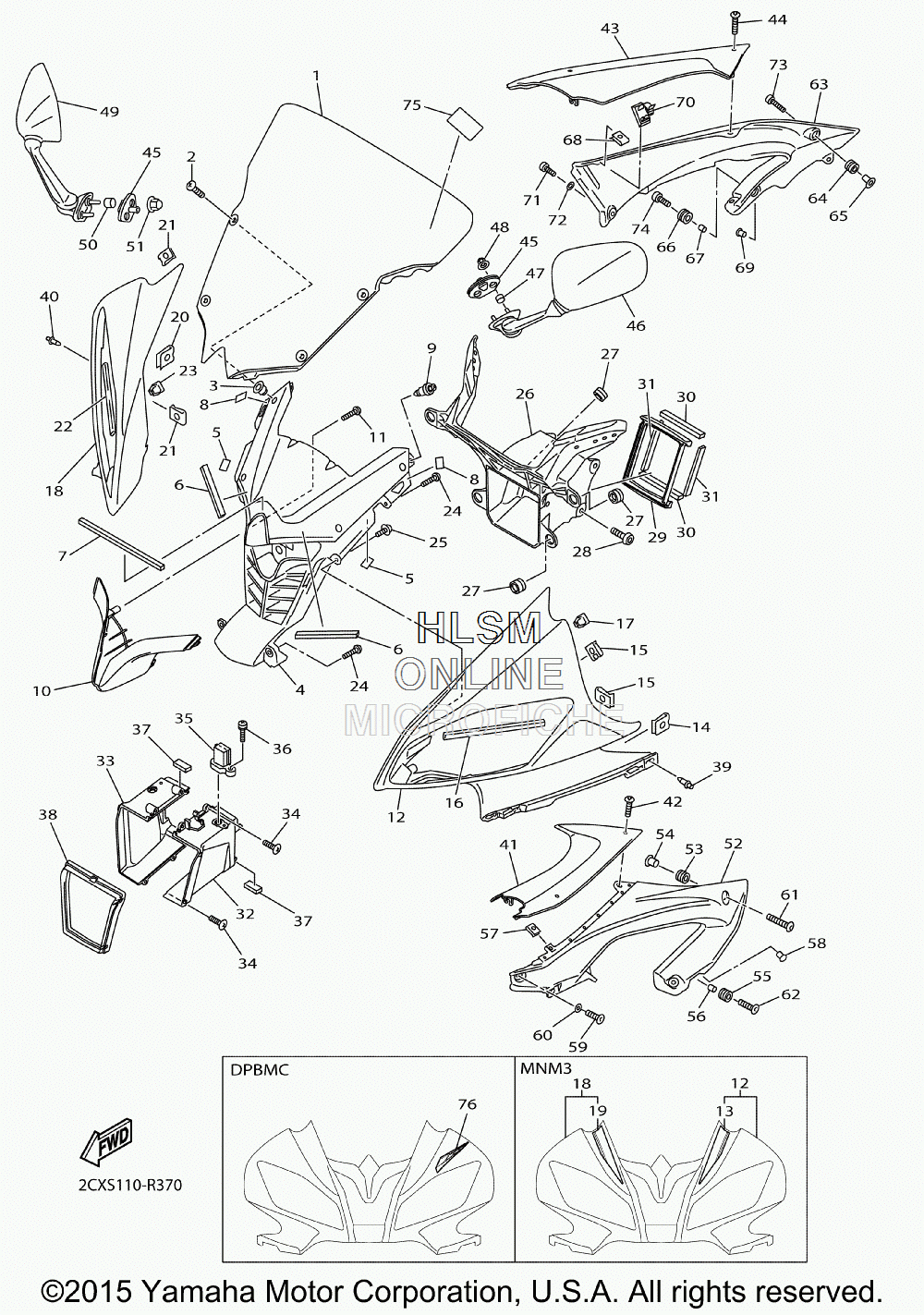

COWLING для Yamaha YZF-R6 [YZFR6GGY] - 2016 года выпуска
-
№АртикулНазвание
-
113S-28381-10-00 WINDSHIELDWINDSHIELD
-
290150-05023-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
390179-05523-00 NUT SPEC'L SHAPENUT SPEC'L SHAPE
-
413S-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
53P6-28217-00-00 DAMPER 1DAMPER 1
-
613S-28227-00-00 DAMPER 2DAMPER 2
-
713S-28237-00-00 DAMPER 3DAMPER 3
-
813S-28371-00-00 DAMPERDAMPER
-
990269-06046-00 RIVETRIVET
-
1013S-28365-10-00 COVERCOVER
-
1197702-40016-00 SCREW, TAPPINGSCREW, TAPPING
-
1213S-2835G-00-P0 BODY, FRONT UPPER 1 (FOR DPBMC)BODY, FRONT UPPER 1 (FOR DPBMC)
-
1213S-W283G-00-P9 BODY, FRONT UPPER 1 (FOR MNM3)BODY, FRONT UPPER 1 (FOR MNM3)
-
132CX-2832K-70-00 ......GRAPHIC, 12 (FOR MNM3)......GRAPHIC, 12 (FOR MNM3)
-
1490183-05076-00 NUT, SPRINGNUT, SPRING
-
1590183-05042-00 NUT, SPRINGNUT, SPRING
-
162C0-28455-00-00 DAMPER, 4DAMPER, 4
-
1790480-01605-00 GROMMETGROMMET
-
1813S-2835H-00-P0 BODY, FRONT UPPER 2 (FOR DPBMC)BODY, FRONT UPPER 2 (FOR DPBMC)
-
1813S-W283H-00-P9 BODY, FRONT UPPER 2 (FOR MNM3)BODY, FRONT UPPER 2 (FOR MNM3)
-
192CX-2832L-70-00 ......GRAPHIC, 13 (FOR MNM3)......GRAPHIC, 13 (FOR MNM3)
-
2090183-05076-00 NUT, SPRINGNUT, SPRING
-
2190183-05042-00 NUT, SPRINGNUT, SPRING
-
222C0-28455-00-00 DAMPER, 4DAMPER, 4
-
2390480-01605-00 GROMMETGROMMET
-
2497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2597707-40012-00 SCREW, TAPPINGSCREW, TAPPING
-
2613S-28356-00-00 STAY 1STAY 1
-
274XV-83513-00-00 DAMPERDAMPER
-
2890111-06116-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
292C0-28342-01-00 JOINTJOINT
-
302C0-28217-00-00 DAMPER 1DAMPER 1
-
312C0-28227-00-00 DAMPER 2DAMPER 2
-
3213S-2838R-00-00 DUCT 2DUCT 2
-
3313S-2838T-00-00 DUCT 3DUCT 3
-
3497702-40016-00 SCREW, TAPPINGSCREW, TAPPING
-
358FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
3697702-50116-00 SCREW, TAPPINGSCREW, TAPPING
-
3751Y-21639-00-00 DAMPER 2DAMPER 2
-
382C0-28371-00-00 DAMPERDAMPER
-
3990269-06008-00 RIVETRIVET
-
4090269-06008-00 RIVETRIVET
-
4113S-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
4290111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4313S-2837M-00-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
4490111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4513S-26298-00-00 PLATE, MIRROR FITTING 1PLATE, MIRROR FITTING 1
-
4613S-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
4790387-064T3-00 COLLARCOLLAR
-
4890176-06008-00 NUT, CROWNNUT, CROWN
-
4913S-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
5090387-064T3-00 COLLARCOLLAR
-
5190176-06008-00 NUT, CROWNNUT, CROWN
-
5213S-2117V-00-P0 COVER 7 (FOR DPBMC)COVER 7 (FOR DPBMC)
-
5213S-2117V-00-P9 COVER 7 (FOR MNM3)COVER 7 (FOR MNM3)
-
5390480-12613-00 GROMMETGROMMET
-
5490387-067K8-00 COLLARCOLLAR
-
5590480-14003-00 GROMMETGROMMET
-
5690387-06260-00 COLLARCOLLAR
-
5790183-05076-00 NUT, SPRINGNUT, SPRING
-
5890338-06134-00 PLUGPLUG
-
5990110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
6090202-05180-00 WASHER, PLATEWASHER, PLATE
-
6190111-06063-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6290111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6313S-2117W-00-P0 COVER 8 (FOR DPBMC)COVER 8 (FOR DPBMC)
-
6313S-2117W-00-P9 COVER 8 (FOR MNM3)COVER 8 (FOR MNM3)
-
6490480-12613-00 GROMMETGROMMET
-
6590387-067K8-00 COLLARCOLLAR
-
6690480-14003-00 GROMMETGROMMET
-
6790387-06260-00 COLLARCOLLAR
-
6890183-05076-00 NUT, SPRINGNUT, SPRING
-
6990338-06134-00 PLUGPLUG
-
7090464-20014-00 CLAMPCLAMP
-
7190110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
7290202-05180-00 WASHER, PLATEWASHER, PLATE
-
7390111-06063-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
7490111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
754B5-2815K-00-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
-
762CR-2173X-10-00 GRAPHIC 7 (FOR DPBMC)GRAPHIC 7 (FOR DPBMC)
