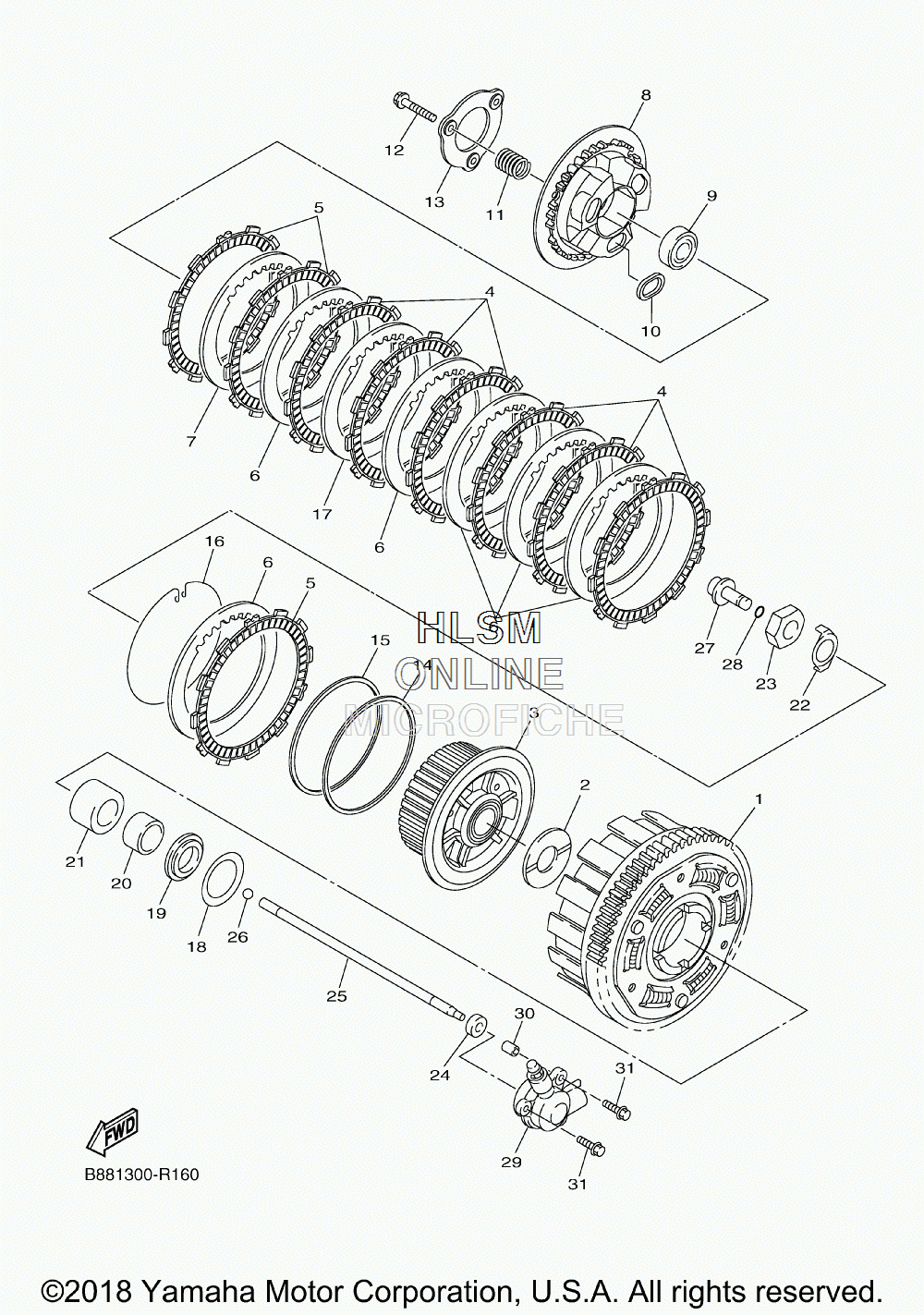

CLUTCH для Yamaha FJR1300P POLICE - 2018 года выпуска
-
№АртикулНазвание
-
15JW-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
25JW-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
3B88-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
41D7-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
527D-16331-00-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
62H7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
71D7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
8B88-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
993306-00304-00 BEARINGBEARING
-
101D7-16384-00-00 PLATE, SEATPLATE, SEAT
-
11B88-16173-00-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
122CR-16337-00-00 SCREW, SPRINGSCREW, SPRING
-
131TD-16352-00-00 PLATE, PRESSURE 2PLATE, PRESSURE 2
-
1436Y-16384-00-00 PLATE, SEATPLATE, SEAT
-
1536Y-16383-00-00 SPRING, CUSHIONSPRING, CUSHION
-
162H7-16385-00-00 RING SETRING SET
-
1747X-16324-00-00 PLATE, CLUTCH 1 (T1.6)PLATE, CLUTCH 1 (T1.6)
-
172H7-16325-00-00 PLATE, CLUTCH 2 (T2.0)PLATE, CLUTCH 2 (T2.0)
-
172H7-16324-00-00 PLATE, CLUTCH 1 (T2.6)PLATE, CLUTCH 1 (T2.6)
-
183P6-16587-00-00 SPRING, ABSORBERSPRING, ABSORBER
-
193P6-16183-00-00 SPACER 3SPACER 3
-
2090387-28002-00 COLLARCOLLAR
-
21B88-16181-00-00 SPACER 1SPACER 1
-
2290215-25218-00 WASHER, LOCKWASHER, LOCK
-
2390170-20323-00 NUTNUT
-
2493109-08061-00 OIL SEALOIL SEAL
-
253P6-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
2693511-32017-00 BALLBALL
-
274KG-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
2893210-06632-00 O-RINGO-RING
-
295JW-16381-00-00 PUSH LEVER COMP.PUSH LEVER COMP.
-
3099530-08012-00 PIN, DOWELPIN, DOWEL
-
3195024-06025-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
