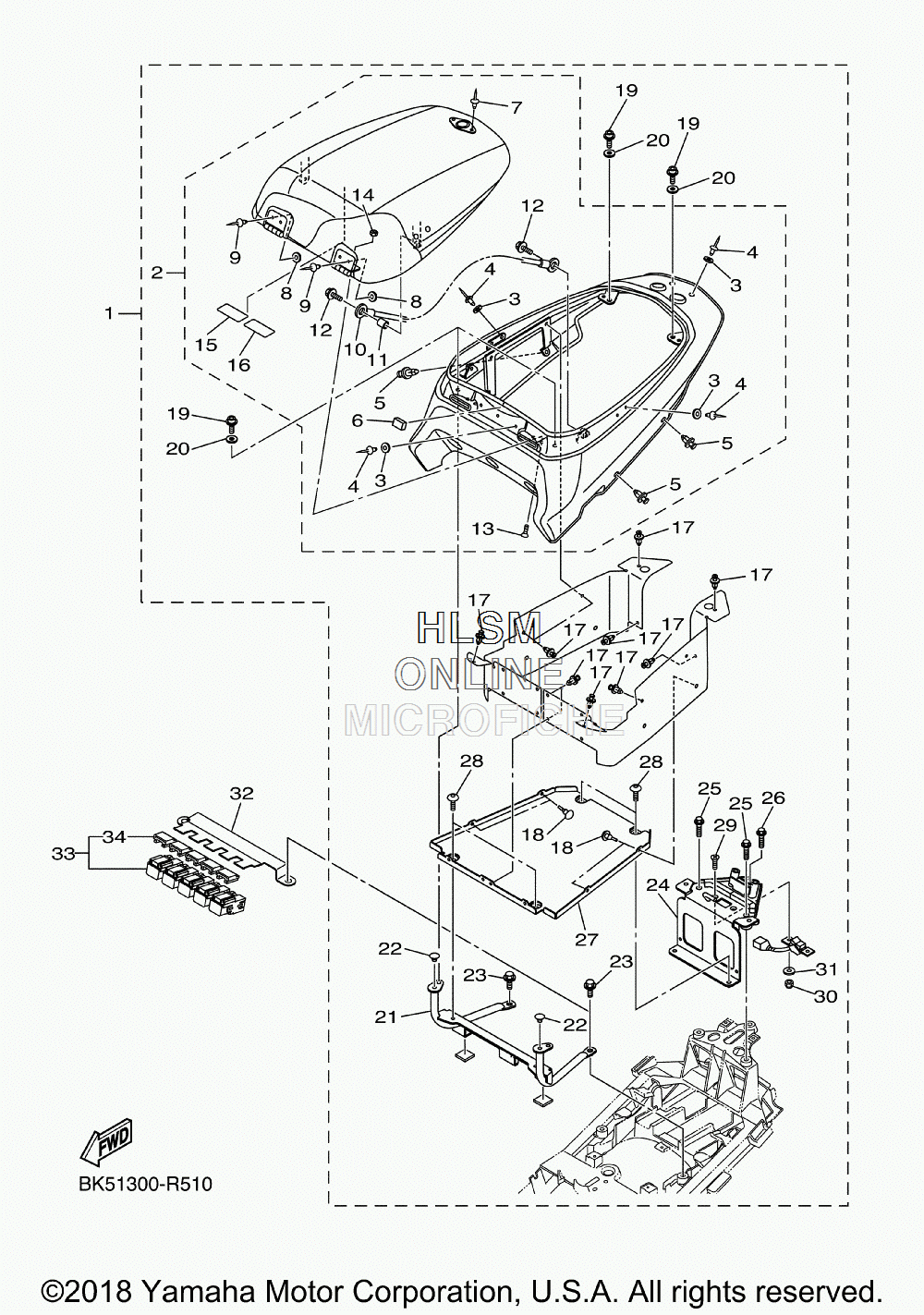

RADIO BOX ASSY для Yamaha FJR1300P POLICE - 2018 года выпуска
-
№АртикулНазвание
-
15VS-W0754-21-UJ RADIO BOX ASSY (STD) (RW - RADICAL WHITE)RADIO BOX ASSY (STD) (RW - RADICAL WHITE)
-
25P5-24704-10-UJ ...BOX ASSY...BOX ASSY
-
392990-04200-00 ......WASHER, PLAIN......WASHER, PLAIN
-
490267-40153-00 ......RIVET, BLIND......RIVET, BLIND
-
590269-07010-00 ......RIVET......RIVET
-
62C0-2847N-00-00 ......DAMPER 8......DAMPER 8
-
790267-40153-00 ......RIVET, BLIND......RIVET, BLIND
-
892990-04200-00 ......WASHER, PLAIN......WASHER, PLAIN
-
990267-40153-00 ......RIVET, BLIND......RIVET, BLIND
-
105UY-2473J-01-00 ......WIRE......WIRE
-
115P5-2471M-00-00 ......COLLAR......COLLAR
-
1290119-05009-00 ......BOLT, WITH WASHER......BOLT, WITH WASHER
-
1390151-04002-00 ......SCREW, COUNTERSUNK......SCREW, COUNTERSUNK
-
1495607-04100-00 ......NUT, U......NUT, U
-
153LD-24877-A0-00 ......LABEL, CAUTION (ENGLISH)......LABEL, CAUTION (ENGLISH)
-
163LD-24877-B1-00 ......LABEL, CAUTION (FRENCH)......LABEL, CAUTION (FRENCH)
-
1790269-05005-00 ...RIVET...RIVET
-
1890338-07180-00 ...PLUG...PLUG
-
1990109-060E9-00 ...BOLT...BOLT
-
2090201-06050-00 ...WASHER, PLATE...WASHER, PLATE
-
215P5-24716-00-00 ...STAY, REAR...STAY, REAR
-
2290338-06018-00 ...PLUG...PLUG
-
2395827-08016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
245P5-28436-10-00 ...BRACKET 2...BRACKET 2
-
2595022-08035-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2695027-08030-00 ...BOLT, FLANGE...BOLT, FLANGE
-
275P5-2843L-30-00 ...PLATE...PLATE
-
2890111-06083-00 ......BOLT, HEX. SOCKET BUTTON......BOLT, HEX. SOCKET BUTTON
-
2998702-05016-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
3095602-05100-00 ...NUT, U...NUT, U
-
3190201-057H5-00 ...WASHER, PLATE...WASHER, PLATE
-
325P5-2253B-00-00 STAY, RELAYSTAY, RELAY
-
331TP-81950-00-00 RELAY ASSY (1TP-00)RELAY ASSY (1TP-00)
-
345EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
