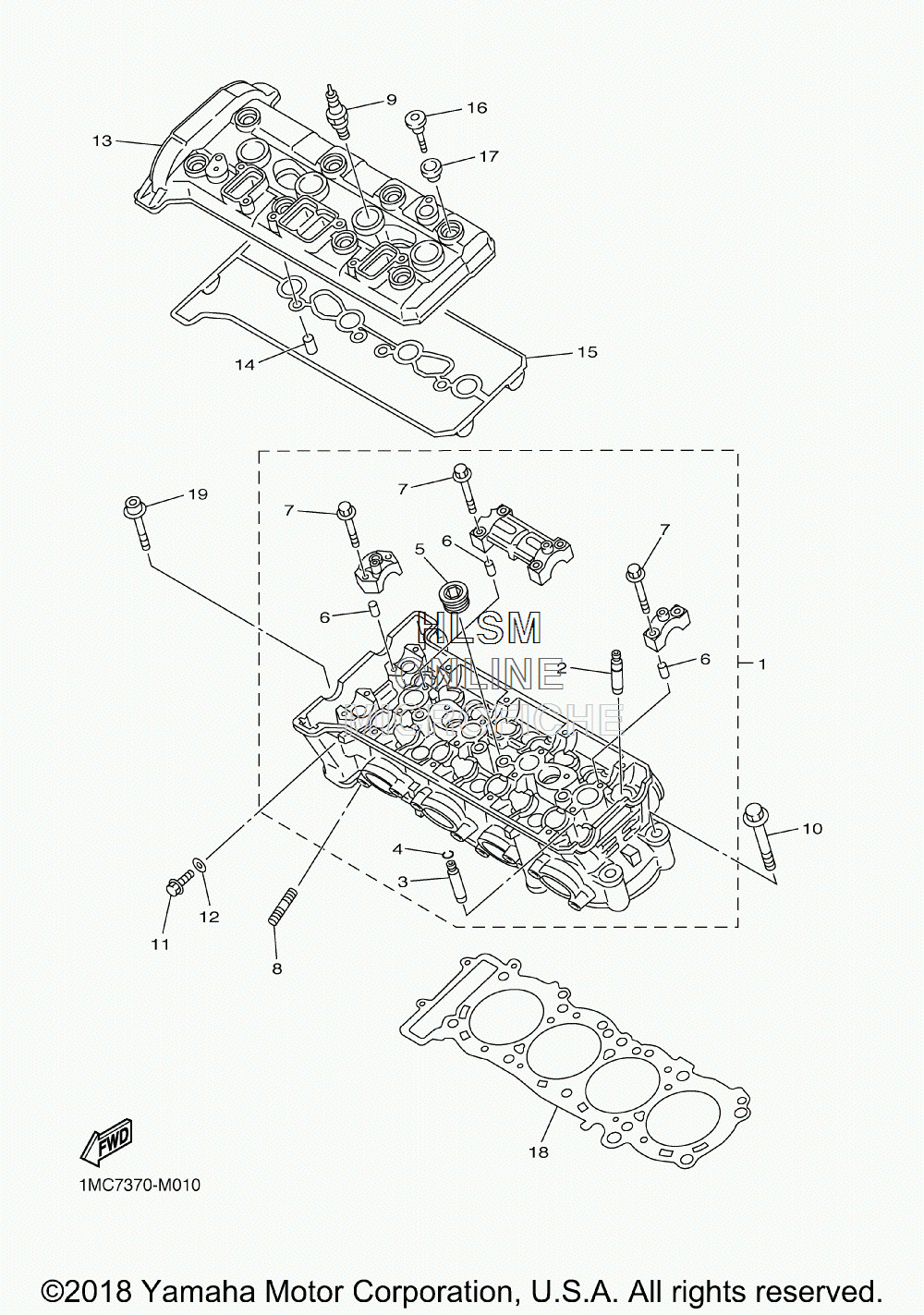

CYLINDER для Yamaha FJR1300P POLICE - 2018 года выпуска
-
№АртикулНазвание
-
11MC-11102-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25JW-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
33P6-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
493440-09141-00 ...CIRCLIP...CIRCLIP
-
590340-27129-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
691808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
790105-06026-00 ...BOLT, FLANGE...BOLT, FLANGE
-
895612-08620-00 BOLT, STUDBOLT, STUD
-
994701-00415-00 PLUG, SPARK (NGK CPR8EA-9)PLUG, SPARK (NGK CPR8EA-9)
-
1090119-10004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1195022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1290430-08119-00 GASKETGASKET
-
131MC-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
1491810-20001-00 PIN, DOWELPIN, DOWEL
-
151MC-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1690109-066F0-00 BOLTBOLT
-
175VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
185JW-11181-10-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1990110-06385-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
