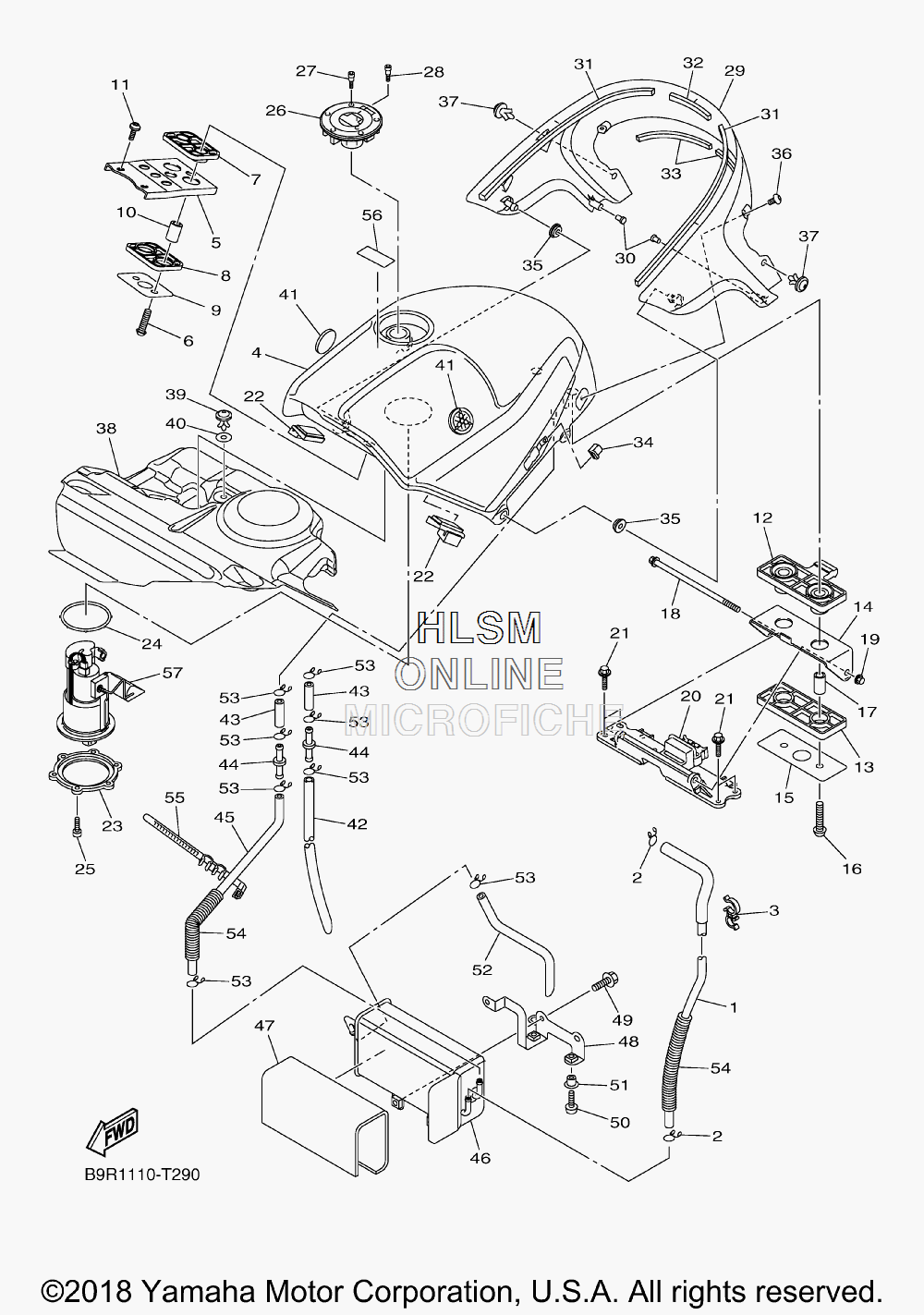

FUEL TANK для Yamaha FJR1300P POLICE - 2018 года выпуска
-
№АртикулНазвание
-
11MC-1443J-10-00 PIPEPIPE
-
290467-100A1-00 CLIPCLIP
-
390464-28153-00 CLAMPCLAMP
-
43P6-YK241-00-UJ FUEL TANK COMP. (RW - RADICAL WHITE)FUEL TANK COMP. (RW - RADICAL WHITE)
-
55JW-24191-20-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
692012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
75JW-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
85JW-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
95JW-24187-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1090387-0813V-00 COLLARCOLLAR
-
1190149-06302-00 SCREWSCREW
-
123P6-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
135JW-24184-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
145JW-24192-01-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
155JW-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1692012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1790387-0813V-00 COLLARCOLLAR
-
1895812-08160-00 BOLT, FLANGEBOLT, FLANGE
-
1995702-08500-00 NUT, FLANGENUT, FLANGE
-
203P6-21348-00-00 BRACKT, TANK FITTINGBRACKT, TANK FITTING
-
2195822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
223P6-24184-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
231MC-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
2419B-24486-01-00 O-RINGO-RING
-
2590110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2639P-24602-10-00 CAP ASSYCAP ASSY
-
2790110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2891312-05010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
293P6-24129-10-UJ COVER, SIDE 1 (RW - RADICAL WHITE)COVER, SIDE 1 (RW - RADICAL WHITE)
-
3090338-06018-00 PLUGPLUG
-
313P6-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
323P6-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
332D1-2414R-00-00 DAMPER, PLATE 6DAMPER, PLATE 6
-
345PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
3590480-01558-00 GROMMETGROMMET
-
3690111-05023-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
3790269-06081-00 RIVETRIVET
-
381MC-2416F-00-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
-
3990269-06081-00 RIVETRIVET
-
4090202-06008-00 WASHER, PLATEWASHER, PLATE
-
411RC-2413B-00-00 EMBLEMEMBLEM
-
4290445-11036-00 HOSEHOSE
-
4390445-11066-00 HOSEHOSE
-
444XY-14568-00-00 JOINTJOINT
-
45B88-24312-10-00 PIPE 2PIPE 2
-
463P6-24170-00-00 CANISTER ASSYCANISTER ASSY
-
473P6-2414E-00-00 SEAL 2SEAL 2
-
48B88-2419F-00-00 BRACKET, CANISTORBRACKET, CANISTOR
-
4995804-06012-00 BOLT, FLANGEBOLT, FLANGE
-
5092014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5190387-0603J-00 COLLARCOLLAR
-
523P6-24314-00-00 PIPE 4PIPE 4
-
5390467-100A1-00 CLIPCLIP
-
543P6-2432A-00-00 PROTECTOR, PIPE 2PROTECTOR, PIPE 2
-
5590464-10009-00 CLAMPCLAMP
-
561TP-2118K-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
575JW-13907-22-00 FUEL PUMP COMP.FUEL PUMP COMP.
