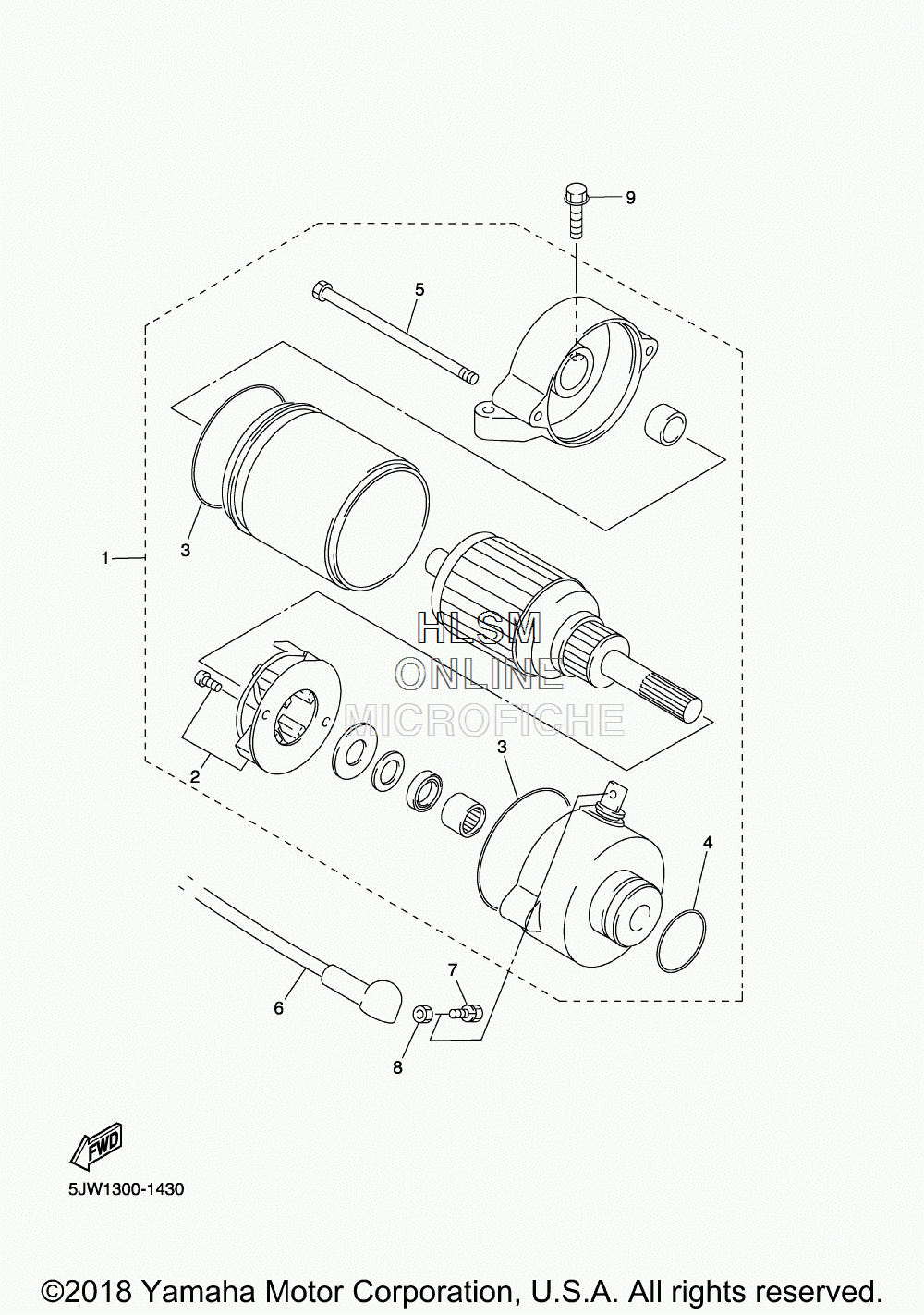

STARTING MOTOR для Yamaha FJR1300P POLICE - 2018 года выпуска
-
№АртикулНазвание
-
11MC-81890-01-00 MOTOR ASSYMOTOR ASSY
-
21MC-81801-00-00 ...BRUSH SET...BRUSH SET
-
393210-55669-00 ...O-RING...O-RING
-
493210-25711-00 ...O-RING...O-RING
-
55JW-81846-01-00 ...SCREW...SCREW
-
61MC-8183G-00-00 CORD COMP.CORD COMP.
-
73P6-81828-00-00 SCREW 2SCREW 2
-
895302-05700-00 NUT, HEXAGONNUT, HEXAGON
-
991312-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
