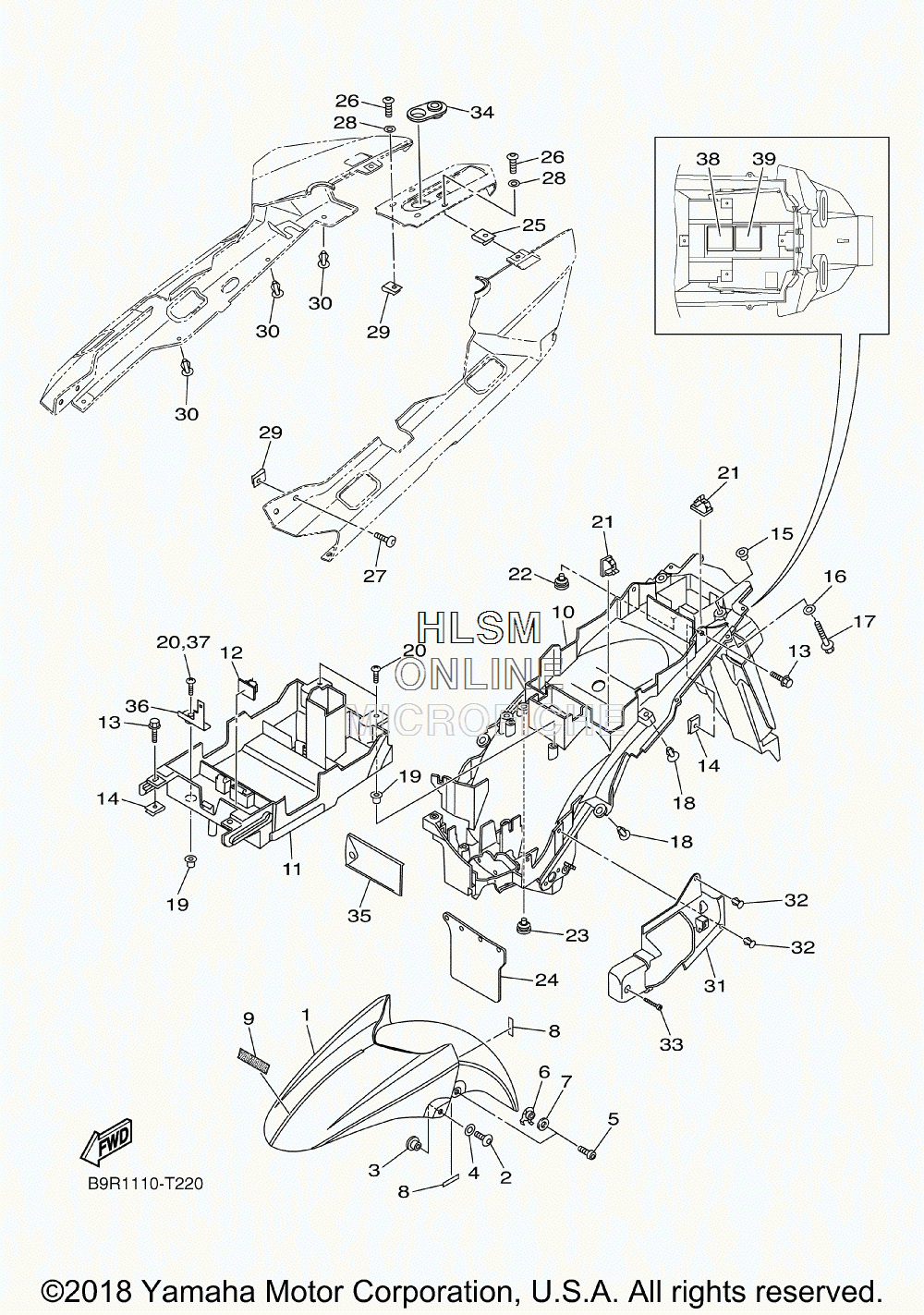

FENDER - FRONT / REAR для Yamaha FJR1300P POLICE - 2018 года выпуска
-
№АртикулНазвание
-
13P6-21511-00-UJ FENDER, FRONT (RW - RADICAL WHITE)FENDER, FRONT (RW - RADICAL WHITE)
-
290110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
390387-07006-00 COLLARCOLLAR
-
490202-06170-00 WASHER, PLATEWASHER, PLATE
-
592012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
63P6-21535-11-00 NUT 1NUT 1
-
73P6-21541-00-00 DAMPER 1DAMPER 1
-
85DM-28371-00-00 DAMPERDAMPER
-
93WF-2153E-70-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
10BK5-21611-00-00 FENDER, REARFENDER, REAR
-
115P5-2160E-00-00 BOXBOX
-
1290464-25160-00 CLAMPCLAMP
-
1390119-06159-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1490183-060A7-00 NUT, SPRINGNUT, SPRING
-
1590387-06231-00 COLLARCOLLAR
-
1690201-07081-00 WASHER, PLATEWASHER, PLATE
-
1795802-06040-00 BOLT, FLANGEBOLT, FLANGE
-
1890269-06081-00 RIVETRIVET
-
1990338-08226-00 PLUGPLUG
-
2097702-60020-00 SCREW, TAPPINGSCREW, TAPPING
-
2190464-13185-00 CLAMPCLAMP
-
2290480-10M36-00 GROMMETGROMMET
-
2390480-10M36-00 GROMMETGROMMET
-
245JW-21621-10-00 FLAPFLAP
-
2590183-051A0-00 NUT, SPRINGNUT, SPRING
-
2690111-05044-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2790111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2890202-05180-00 WASHER, PLATEWASHER, PLATE
-
2990183-050A0-00 NUT, SPRINGNUT, SPRING
-
3090269-06081-00 RIVETRIVET
-
311MC-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
3290269-06081-00 RIVETRIVET
-
3397702-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
343P6-24747-00-00 DAMPER, SEATDAMPER, SEAT
-
35B88-28100-00-00 TOOL KITTOOL KIT
-
365P5-22562-10-00 STAY, FUSESTAY, FUSE
-
3797702-60020-00 SCREW, TAPPINGSCREW, TAPPING
-
3813S-21684-10-00 PLATE, ROUTINGPLATE, ROUTING
-
391MC-21686-00-00 PLATE, ROUTING 2PLATE, ROUTING 2
