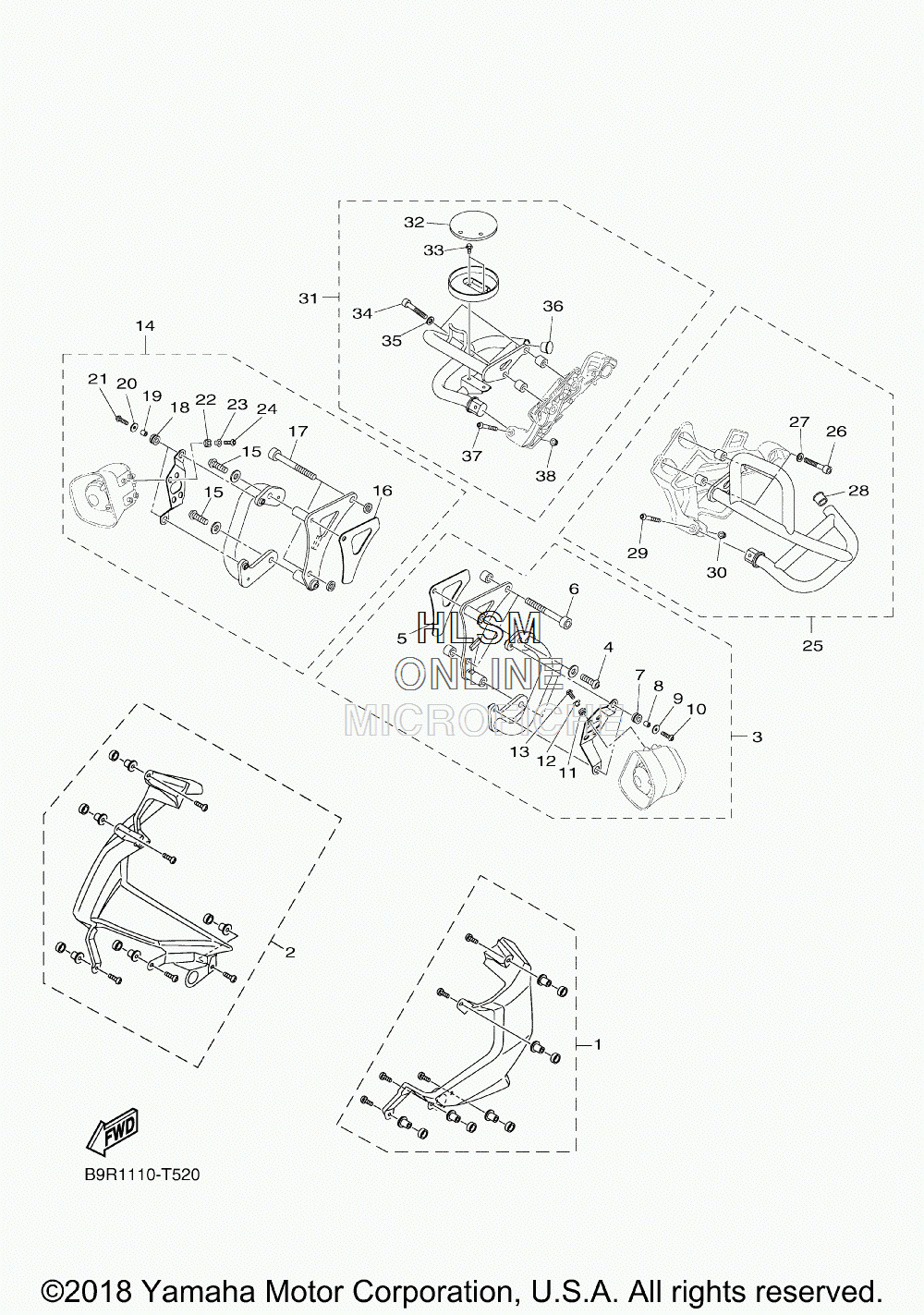

SHIELDS - GUARDS для Yamaha FJR1300P POLICE - 2018 года выпуска
-
№АртикулНазвание
-
12BC-W0745-10-UJ LEG SHIELD SET 1 (RW - RADICAL WHITE)LEG SHIELD SET 1 (RW - RADICAL WHITE)
-
22BC-W0745-20-UJ LEG SHIELD SET 2 (RW - RADICAL WHITE)LEG SHIELD SET 2 (RW - RADICAL WHITE)
-
32BC-W0741-00-00 ENGINEGUARD SETENGINEGUARD SET
-
492017-10030-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
52BC-28415-00-00 ...DAMPER 1...DAMPER 1
-
691314-12080-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
790480-14011-00 ...GROMMET...GROMMET
-
890387-06131-00 ...COLLAR...COLLAR
-
990201-06071-00 ...WASHER, PLATE...WASHER, PLATE
-
1092017-06030-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
1190480-12237-00 ...GROMMET...GROMMET
-
1290387-087L0-00 ...COLLAR...COLLAR
-
1392017-06020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
142BC-W0741-10-00 ENGINEGUARD SETENGINEGUARD SET
-
1592017-10030-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
162BC-28416-00-00 ...DAMPER 2...DAMPER 2
-
1791314-12065-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
1890480-14011-00 ...GROMMET...GROMMET
-
1990387-06131-00 ...COLLAR...COLLAR
-
2090201-06071-00 ...WASHER, PLATE...WASHER, PLATE
-
2192017-06030-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2290480-12237-00 ...GROMMET...GROMMET
-
2390387-087L0-00 ...COLLAR...COLLAR
-
2492017-06020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
252BC-W0741-30-00 ENGINEGUARD SETENGINEGUARD SET
-
2691314-08050-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
2790201-092U3-00 ...WASHER, PLATE...WASHER, PLATE
-
2890338-18122-00 ...PLUG...PLUG
-
2992014-06040-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
3095604-06200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
312BC-W0741-40-00 ENGINEGUARD SETENGINEGUARD SET
-
325P5-28435-00-00 ...DAMPER 4...DAMPER 4
-
3395024-06010-00 ...BOLT, FLANGE (SMALL HEAD)...BOLT, FLANGE (SMALL HEAD)
-
3491314-08050-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
3590201-092U3-00 ...WASHER, PLATE...WASHER, PLATE
-
3690338-18122-00 ...PLUG...PLUG
-
3792014-06040-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
3895604-06200-00 ...NUT, U FLANGE...NUT, U FLANGE
