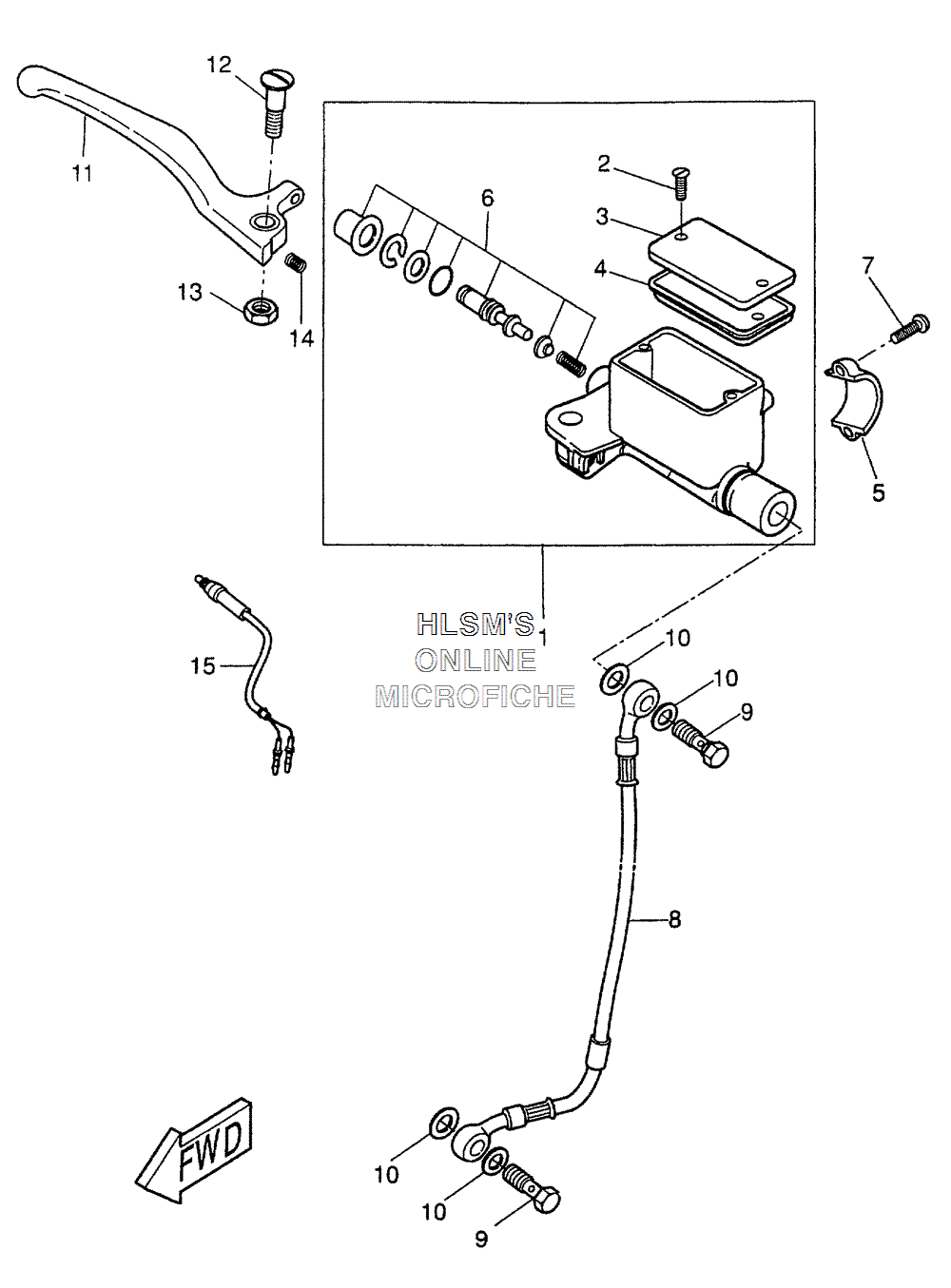

BRAKE - FRONT MASTER CYLINDER для Yamaha ZUMA II - 2001 года выпуска
-
№АртикулНазвание
-
13YK-2583T-03-00 MASTER CYLINDER ASSY.MASTER CYLINDER ASSY.
-
298707-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
33YR-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
43YR-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
53YK-25867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
63RW-W0041-02-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
790111-06X01-00 BOLT HEX, SOCKET BUTTONBOLT HEX, SOCKET BUTTON
-
84VV-F5872-01-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
990401-10X01-00 BOLT, UNIONBOLT, UNION
-
1090201-10X03-00 WASHER, PLAINWASHER, PLAIN
-
112NA-83922-01-00 LEVER RLEVER R
-
1290109-06577-00 BOLTBOLT
-
1395607-06100-00 NUT, UNUT, U
-
1490501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
154CU-83980-00-00 FRONT STOP SWITCHFRONT STOP SWITCH
