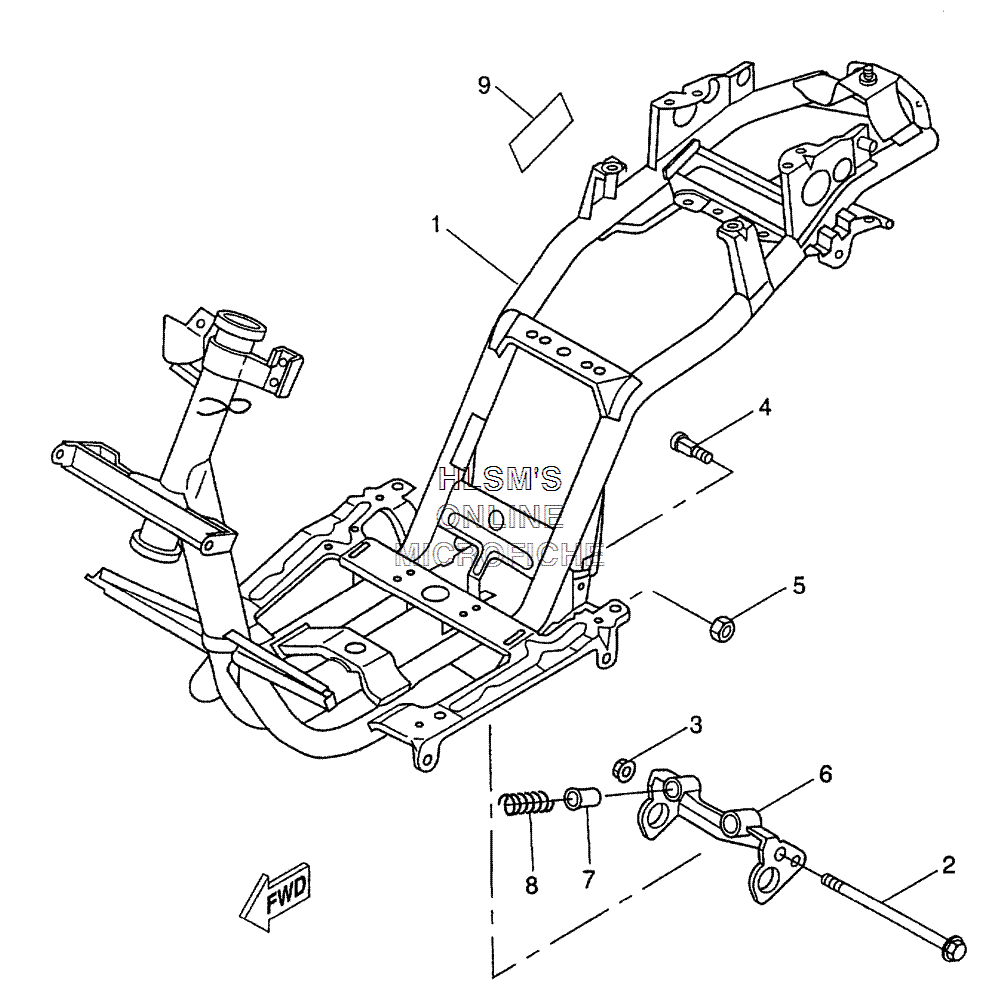

FRAME для Yamaha ZUMA II - 2001 года выпуска
-
№АртикулНазвание
-
1SLU-F1110-00-00 FRAME COMP. (BLACK)FRAME COMP. (BLACK)
-
290105-10297-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
390179-10279-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
42T4-21481-01-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
595617-10100-00 NUT, UNUT, U
-
63VL-F1410-11-00 ENGINE BRACKET COMP. (BLACK)ENGINE BRACKET COMP. (BLACK)
-
72T4-2139X-00-00 DAMPERDAMPER
-
890501-29517-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
93MX-21568-00-00 LABEL, WARNINGLABEL, WARNING
