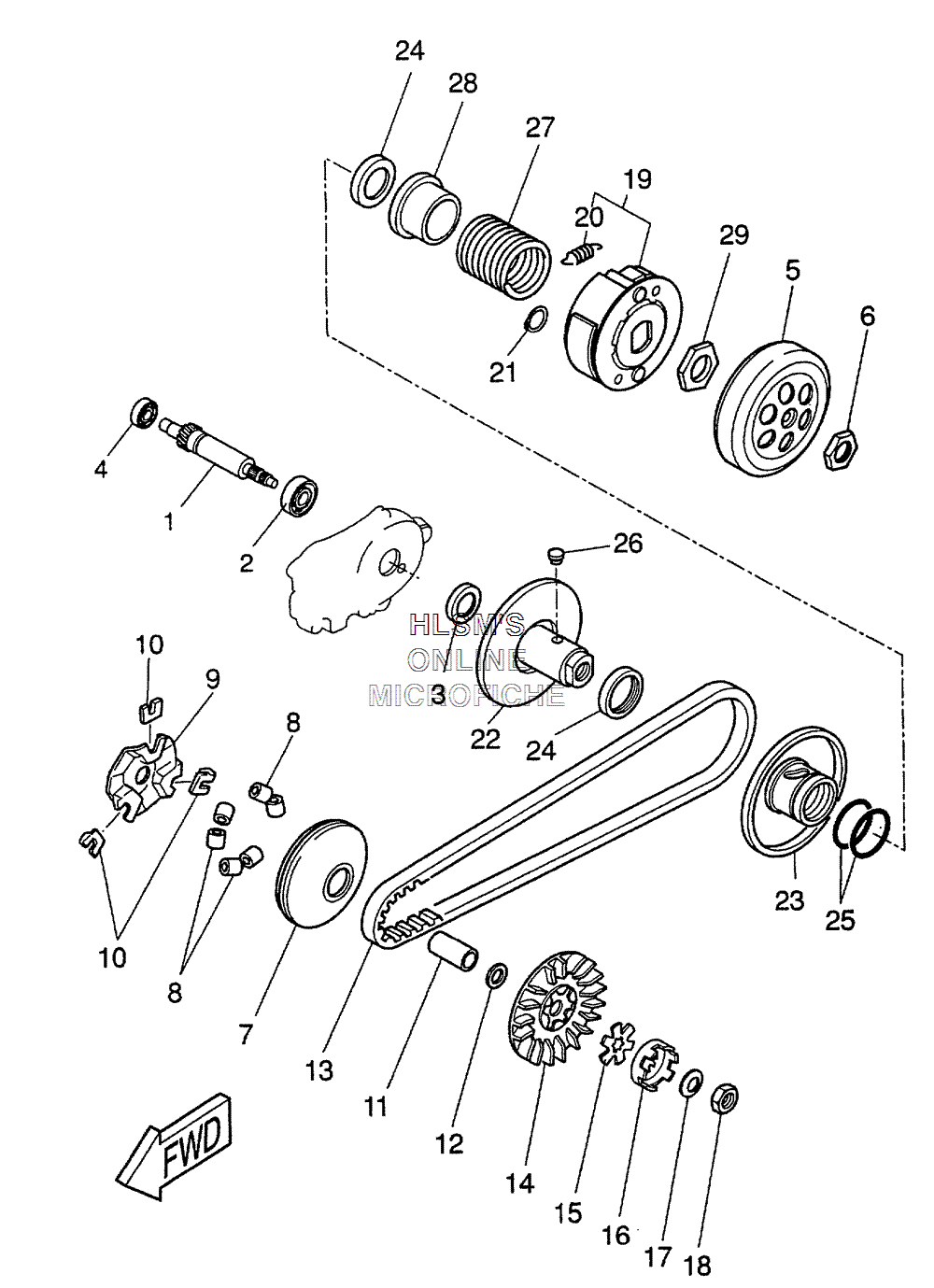

CLUTCH ASSY. для Yamaha ZUMA II - 2001 года выпуска
-
№АртикулНазвание
-
13VL-E6111-00-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
293306-203Y0-00 BEARINGBEARING
-
393102-17342-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
493306-20009-00 BEARINGBEARING
-
55BR-E6611-00-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
690170-10X01-00 NUTNUT
-
74CU-E7620-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
84KH-E7632-00-PL WEIGHTWEIGHT
-
93VL-E7623-00-00 CAMCAM
-
103VL-E7653-00-00 SLIDERSLIDER
-
1190387-135U9-00 COLLARCOLLAR
-
1290201-133M8-00 WASHER, PLATEWASHER, PLATE
-
133AA-17641-00-00 V-BELTV-BELT
-
143VL-E7611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
1590214-13055-00 WASHER, CLAWWASHER, CLAW
-
163KJ-15657-00-00 CLUTCH, ONEWAYCLUTCH, ONEWAY
-
1790208-10012-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
1890170-10219-00 NUTNUT
-
195BR-E6620-00-00 CLUTCH CARRIER ASSY.CLUTCH CARRIER ASSY.
-
205BR-E6626-00-00 SPRING, CLUTCH WEIGHT 1SPRING, CLUTCH WEIGHT 1
-
2199001-05600-00 CIRCLIPCIRCLIP
-
225BR-E7660-00-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
235BR-E7671-00-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
2493104-34832-00 OIL SEALOIL SEAL
-
2593210-368E7-00 O-RINGO-RING
-
265BR-E7664-00-00 PIN, GUIDEPIN, GUIDE
-
2790501-35864-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
285BR-E7684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
2990170-28860-00 NUTNUT
