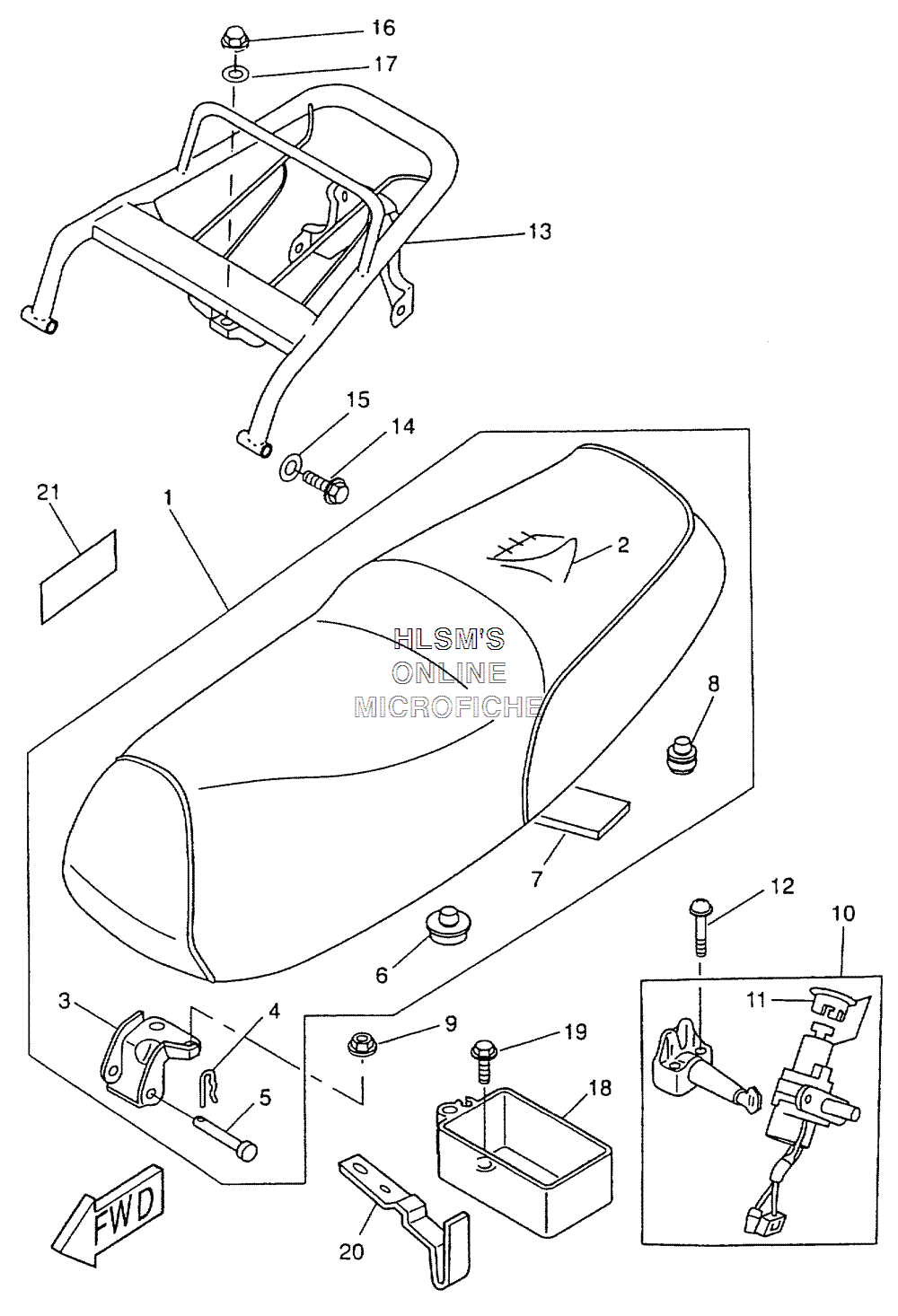

SEAT W/ CARRIER для Yamaha ZUMA II - 2001 года выпуска
-
№АртикулНазвание
-
14PB-F4730-41-00 DOUBLE SEAT ASSY. (BLACK)DOUBLE SEAT ASSY. (BLACK)
-
24PB-F4731-41-00 ...COVER, SEAT (NOT SHOWN)...COVER, SEAT (NOT SHOWN)
-
33VL-F4726-00-00 ...HINGE, SEAT...HINGE, SEAT
-
43VL-F4623-00-00 ...PIN 1...PIN 1
-
53VL-F4572-00-00 ...SHAFT, FUEL CHARGE...SHAFT, FUEL CHARGE
-
63VL-F4741-00-00 ...PAD, SEAT...PAD, SEAT
-
73VL-F4737-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
83VL-F4741-10-00 ...PAD, SEAT...PAD, SEAT
-
990179-06X00-00 ...NUT...NUT
-
104VV-H2021-01-00 KEY SETKEY SET
-
114VV-H2532-00-00 ...CAP...CAP
-
1290159-06064-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
134CA-F4842-10-33 CARRIER, REAR (BLACK)CARRIER, REAR (BLACK)
-
1495024-08055-00 BOLT, FLANGEBOLT, FLANGE
-
1592990-08600-00 WASHERWASHER
-
1690179-08068-00 NUT, CROWNNUT, CROWN
-
1790201-08326-00 WASHER, PLATEWASHER, PLATE
-
183VL-F1171-00-00 BOX, TOOLBOX, TOOL
-
1997017-06016-00 BOLTBOLT
-
203VL-F1398-00-00 HANGER, HELMETHANGER, HELMET
-
213TB-24877-00-00 LABEL, CAUTION (NOT SHOWN)LABEL, CAUTION (NOT SHOWN)
-
213MX-24875-A0-00 LABEL 1 (NOT SHOWN)LABEL 1 (NOT SHOWN)
-
213JJ-28446-A0-00 LABEL, CAUTION (NOT SHOWN)LABEL, CAUTION (NOT SHOWN)
