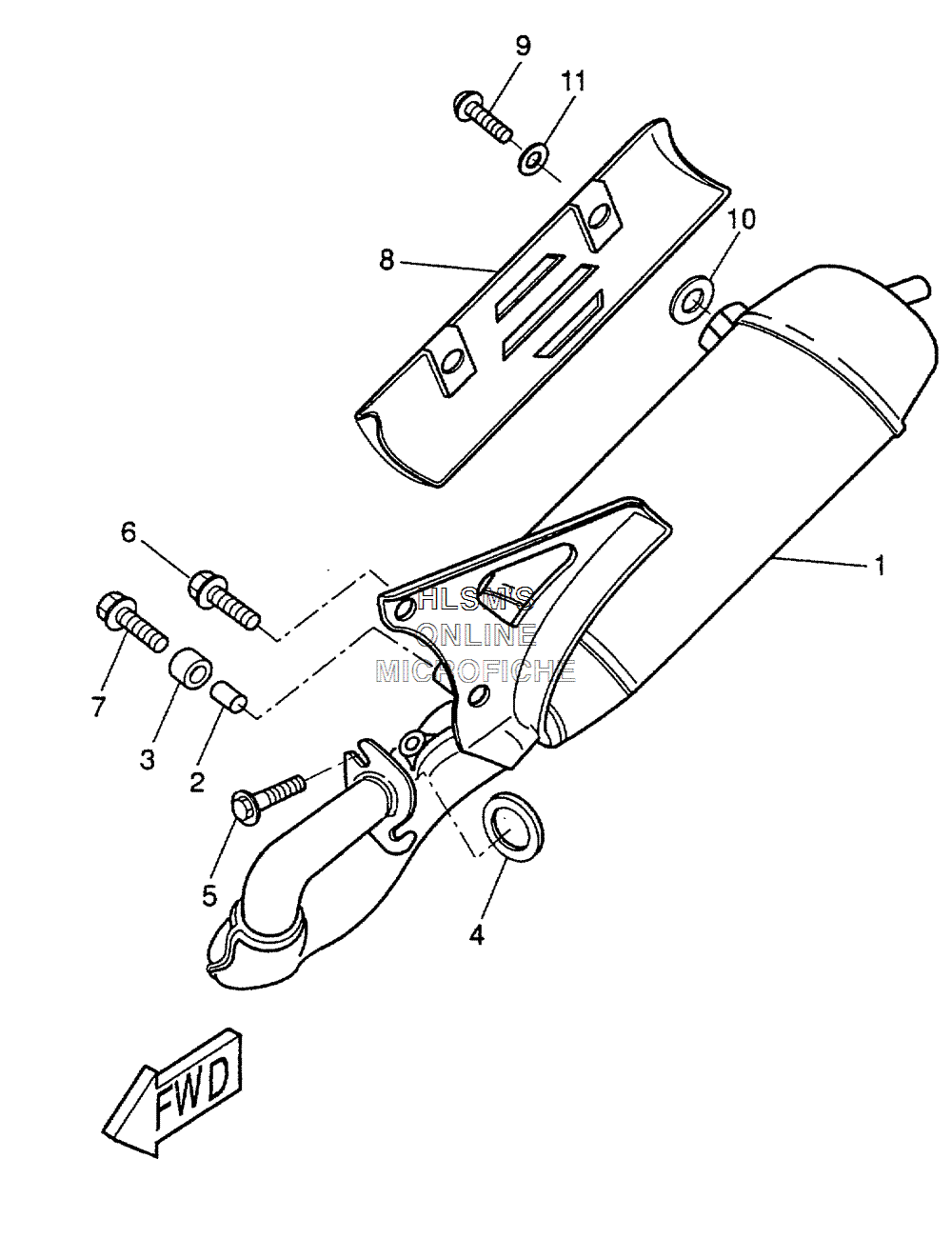

EXHAUST ASSY. для Yamaha ZUMA II - 2001 года выпуска
-
№АртикулНазвание
-
14UY-E4610-10-00 EXHAUST PIPE ASSY. 1EXHAUST PIPE ASSY. 1
-
24MJ-E4445-00-00 GROMMETGROMMET
-
35EU-E4779-00-00 COLLARCOLLAR
-
43HK-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
590153-06061-00 SCREW, HEXAGONSCREW, HEXAGON
-
695817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
795817-08040-00 BOLT, FLANGEBOLT, FLANGE
-
84VV-E4729-00-P0 EMBLEM, PROTECTOR (DPBMC-VRC4))EMBLEM, PROTECTOR (DPBMC-VRC4))
-
990154-06X04-00 SCREW, BINDINGSCREW, BINDING
-
103WX-14766-00-00 WASHER, PROTECTORWASHER, PROTECTOR
-
113HL-F2245-00-00 WASHERWASHER
