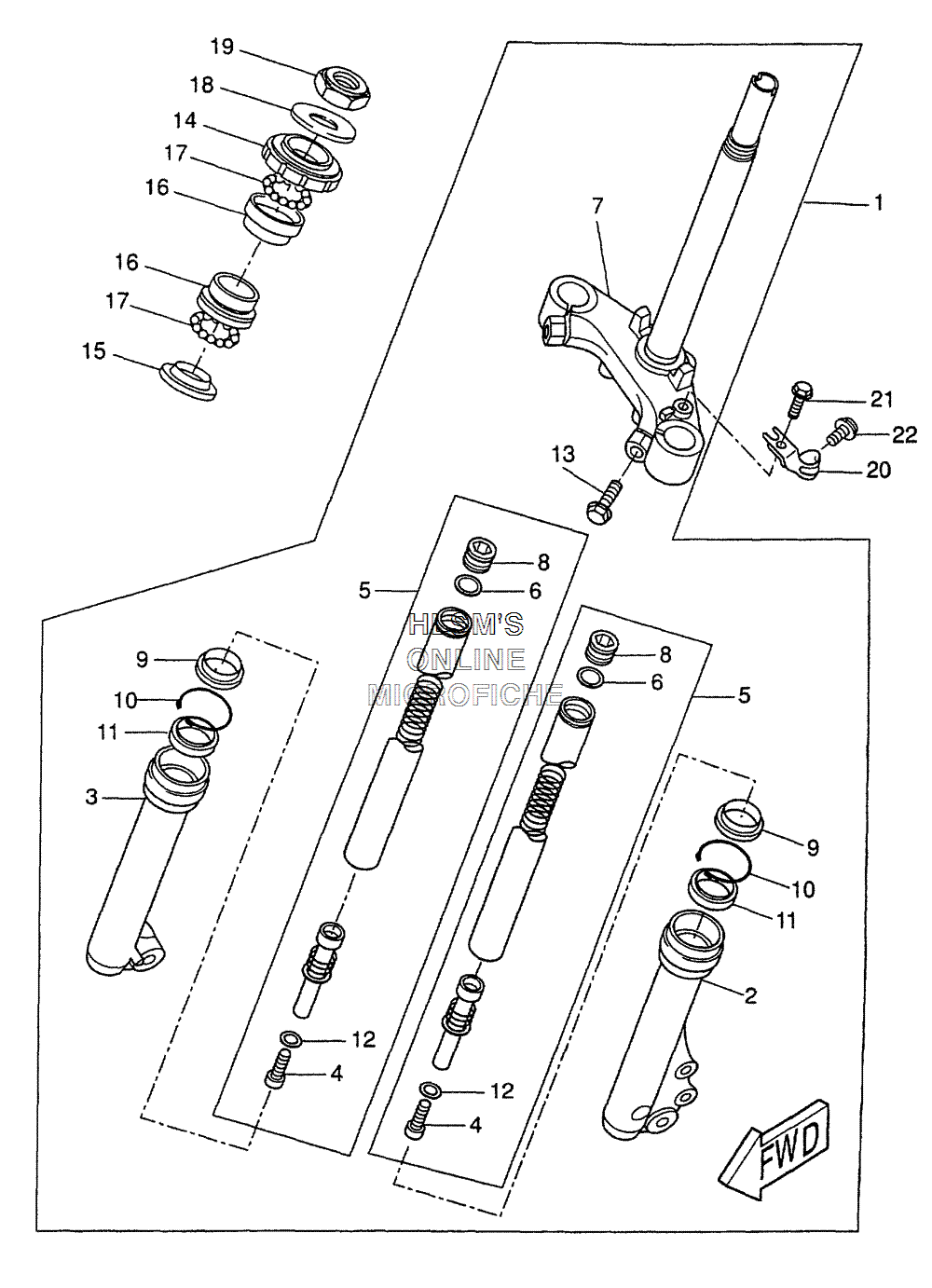

SUSPENSION - FRONT FORK для Yamaha ZUMA II - 2001 года выпуска
-
№АртикулНазвание
-
14VU-F3100-10-00 FRONT FORK ASSY.FRONT FORK ASSY.
-
24VU-F3126-20-00 ...TUBE, OUTER 1 LEFT...TUBE, OUTER 1 LEFT
-
34VU-F3136-20-00 ...TUBE, OUTER 2 RIGHT...TUBE, OUTER 2 RIGHT
-
44VU-F3181-10-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
54VU-F3110-20-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
64VU-F3147-10-00 ...O-RING...O-RING
-
74VU-F3340-10-00 ...UNDER BRACKET COMP....UNDER BRACKET COMP.
-
84VU-F3111-10-00 ...BOLT, CAP...BOLT, CAP
-
94VU-F3144-10-00 ...SEAL, DUST...SEAL, DUST
-
104VU-F3156-10-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
114VU-F3145-10-00 ...OIL SEAL...OIL SEAL
-
124VU-F3165-00-00 ...WASHER, FELT...WASHER, FELT
-
134VU-F3394-00-00 ...BOLT, SPECIAL...BOLT, SPECIAL
-
1422F-23411-01-00 RACE, BALL 1RACE, BALL 1
-
1522F-23414-01-00 RACE, BALL 4RACE, BALL 4
-
1622F-23412-01-00 RACE, BALL 2RACE, BALL 2
-
1793503-16003-00 BALL 3/16BALL 3/16
-
18122-23416-00-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
1990179-25033-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
204PA-F6876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
213WW-H3327-00-00 BOLT, FLASHER 2BOLT, FLASHER 2
-
2290101-06X02-00 BOLT, HEXBOLT, HEX
