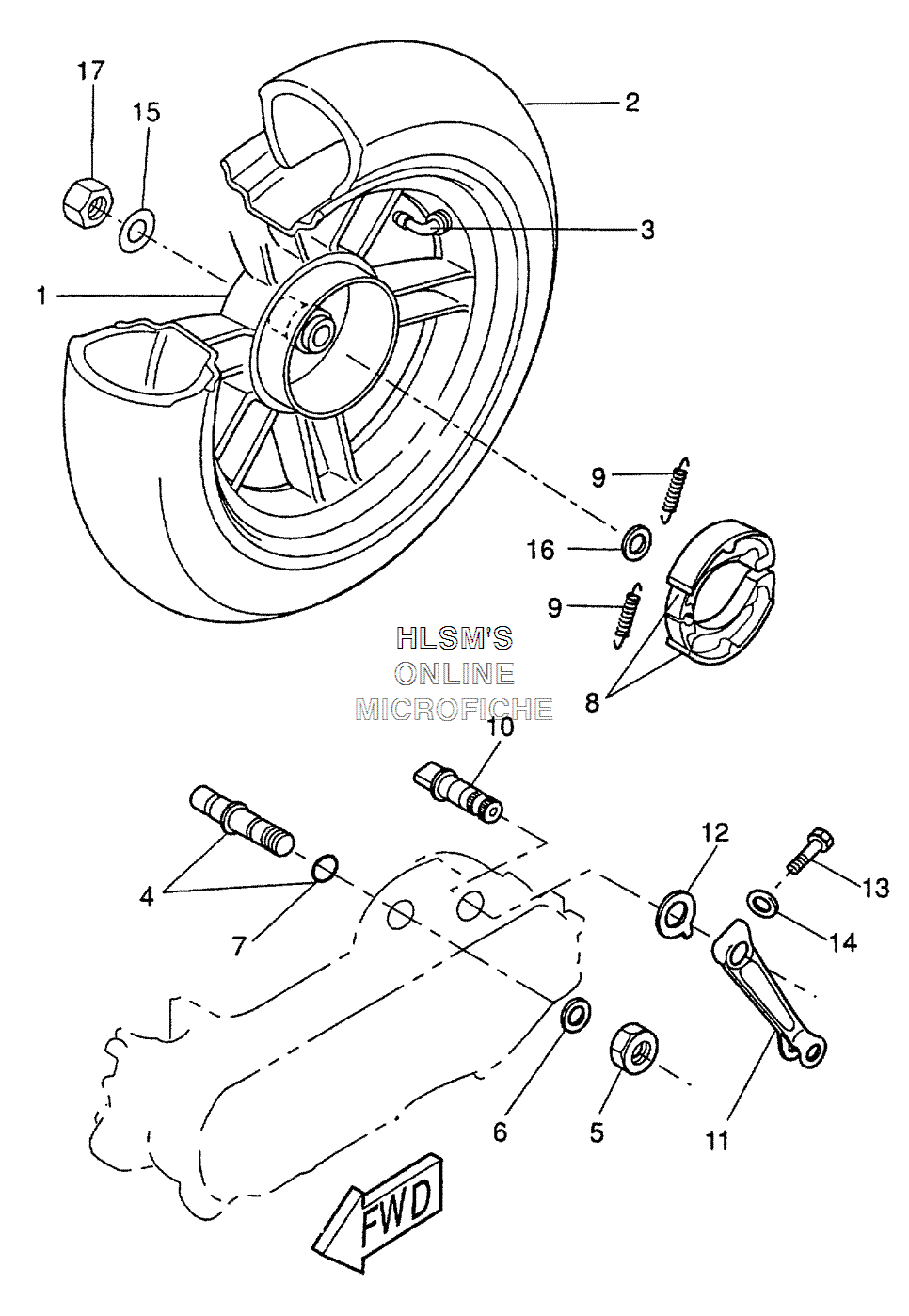

WHEEL - REAR для Yamaha ZUMA II - 2001 года выпуска
-
№АртикулНазвание
-
15HG-F5338-00-00 CAST WHEEL, REARCAST WHEEL, REAR
-
29079Q-04687-00 TIRE (130/90-10 61J PIRELL)TIRE (130/90-10 61J PIRELL)
-
33VL-F5170-10-00 AIR VALVE ASSY.AIR VALVE ASSY.
-
43VL-F5326-00-00 PIN, PIVOTPIN, PIVOT
-
51TK-E6134-00-00 NUT, AXLENUT, AXLE
-
63VL-F5384-00-00 ...WASHER, WHEEL...WASHER, WHEEL
-
793210-07X00-00 O-RINGO-RING
-
84BX-W2536-00-00 BRAKE SHOE COMP.BRAKE SHOE COMP.
-
990506-15260-00 SPRING, TENSIONSPRING, TENSION
-
103AA-25351-00-00 CAMSHAFTCAMSHAFT
-
114VU-F5355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
123Y6-2533A-01-00 PLATE, INDICATORPLATE, INDICATOR
-
1390101-06X05-00 BOLTBOLT
-
1490201-06X01-00 WASHER, PLAINWASHER, PLAIN
-
1590201-142M6-00 WASHER, PLATEWASHER, PLATE
-
1690201-177G4-00 WASHER, PLATEWASHER, PLATE
-
1790185-14070-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
