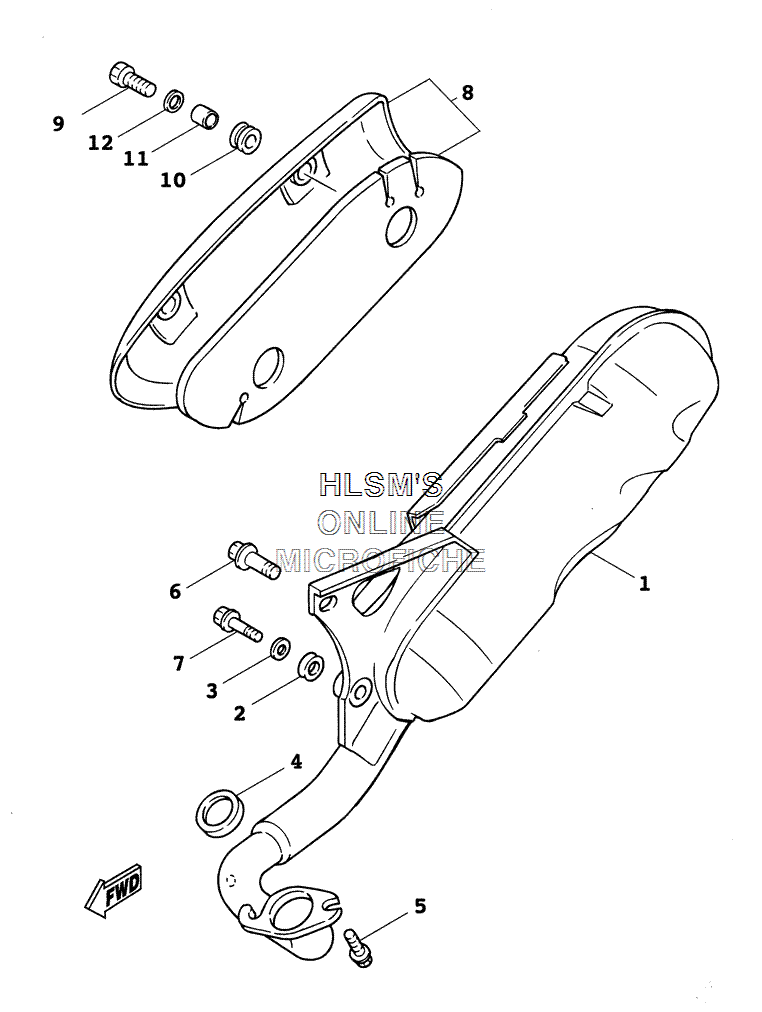

EXHAUST ASSY. для Yamaha ZUMA - 2003 года выпуска
-
№АртикулНазвание
-
15PJ-E4610-00-98 EXHAUST PIPE ASSY. (LOW GLOSS BLACK)EXHAUST PIPE ASSY. (LOW GLOSS BLACK)
-
24VP-E4445-00-00 GROMMETGROMMET
-
34VP-E4779-00-00 COLLARCOLLAR
-
41NT-E4613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
590153-06800-00 SCREW, HEXAGONSCREW, HEXAGON
-
695817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
795817-08030-00 BOLT, FLANGEBOLT, FLANGE
-
85FA-E4708-10-00 PROTECTOR ASSY.PROTECTOR ASSY.
-
998907-06014-00 SCREW, BINDSCREW, BIND
-
1090480-12843-00 GROMMETGROMMET
-
1190387-06817-00 COLLARCOLLAR
-
1290201-06049-00 WASHER, PLATEWASHER, PLATE
