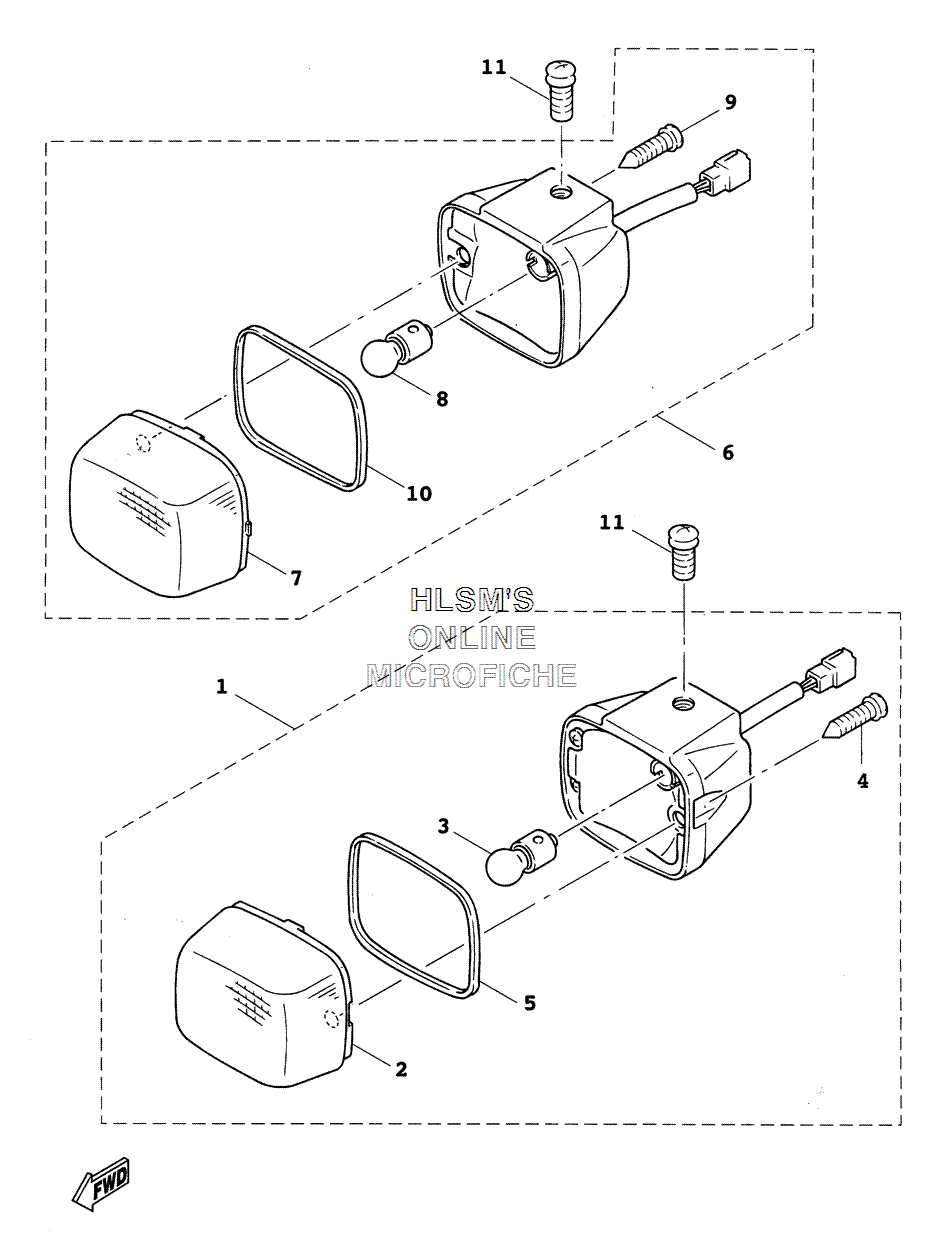

FLASHER LIGHT для Yamaha ZUMA - 2003 года выпуска
-
№АртикулНазвание
-
15PJ-H3310-00-00 FRONT FLASHER LIGHT ASSY. 1FRONT FLASHER LIGHT ASSY. 1
-
25PJ-H3312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
34VP-H3311-00-00 ...BULB (12V 10W)...BULB (12V 10W)
-
497780-40614-00 ...SCREW, TAPPING...SCREW, TAPPING
-
55PJ-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
65PJ-H3320-00-00 FRONT FLASHER LIGHT ASSY. 2FRONT FLASHER LIGHT ASSY. 2
-
75PJ-H3312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
84VP-H3311-00-00 ...BULB (12V 10W)...BULB (12V 10W)
-
997780-40614-00 ...SCREW, TAPPING...SCREW, TAPPING
-
105PJ-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
1198517-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
