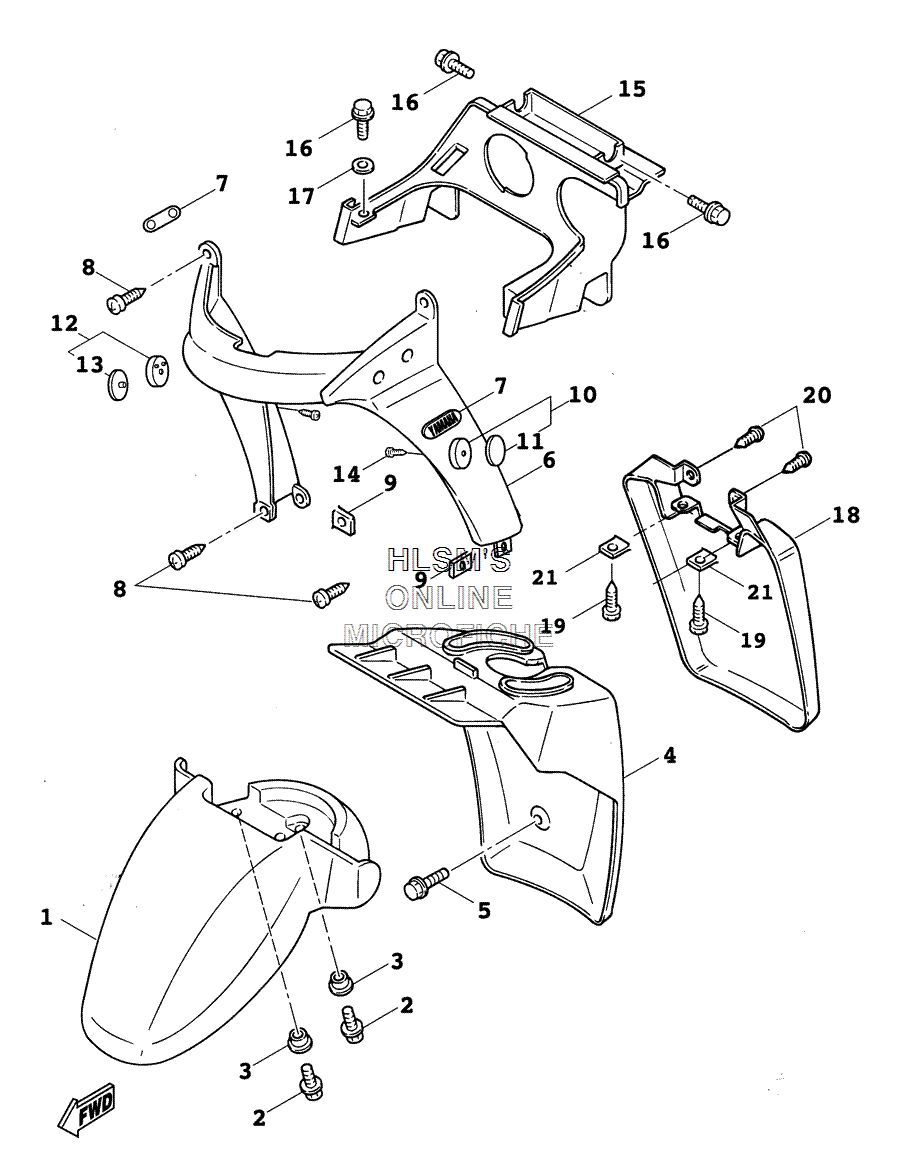

FENDER - FRONT для Yamaha ZUMA - 2003 года выпуска
-
№АртикулНазвание
-
14VP-F1511-71-00 FENDER, FRONT (DPBMC)FENDER, FRONT (DPBMC)
-
14VP-F1511-01-00 FENDER, FRONT (FS/VYS2)FENDER, FRONT (FS/VYS2)
-
290119-06821-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390387-068F8-00 COLLARCOLLAR
-
44VP-F1552-00-00 FENDER, INNERFENDER, INNER
-
595817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
65PJ-F1519-00-00 MOLE, FENDER (FS/VYS2)MOLE, FENDER (FS/VYS2)
-
65PJ-F1519-10-00 MOLE, FENDER (DPBMC)MOLE, FENDER (DPBMC)
-
75PJ-F151B-00-00 CAP (FS/VYS2)CAP (FS/VYS2)
-
75PJ-F151B-10-00 CAP (DPBMC)CAP (DPBMC)
-
897707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
990183-05042-00 NUT, SPRINGNUT, SPRING
-
105PJ-H5110-00-00 REFLECTOR ASSY.REFLECTOR ASSY.
-
112EK-85111-00-00 ...REFLECTOR, FRONT 1...REFLECTOR, FRONT 1
-
125PJ-H5120-00-00 FRONT REFLECTOR ASSY. 2FRONT REFLECTOR ASSY. 2
-
132EK-85111-00-00 ...REFLECTOR, FRONT 1...REFLECTOR, FRONT 1
-
1497707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
154VP-F1629-00-00 GUARD, MUDGUARD, MUD
-
1695817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1790201-06067-00 WASHER, PLATEWASHER, PLATE
-
184VP-F1691-01-00 FLAPFLAP
-
1997707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
2097707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
2190183-05042-00 NUT, SPRINGNUT, SPRING
