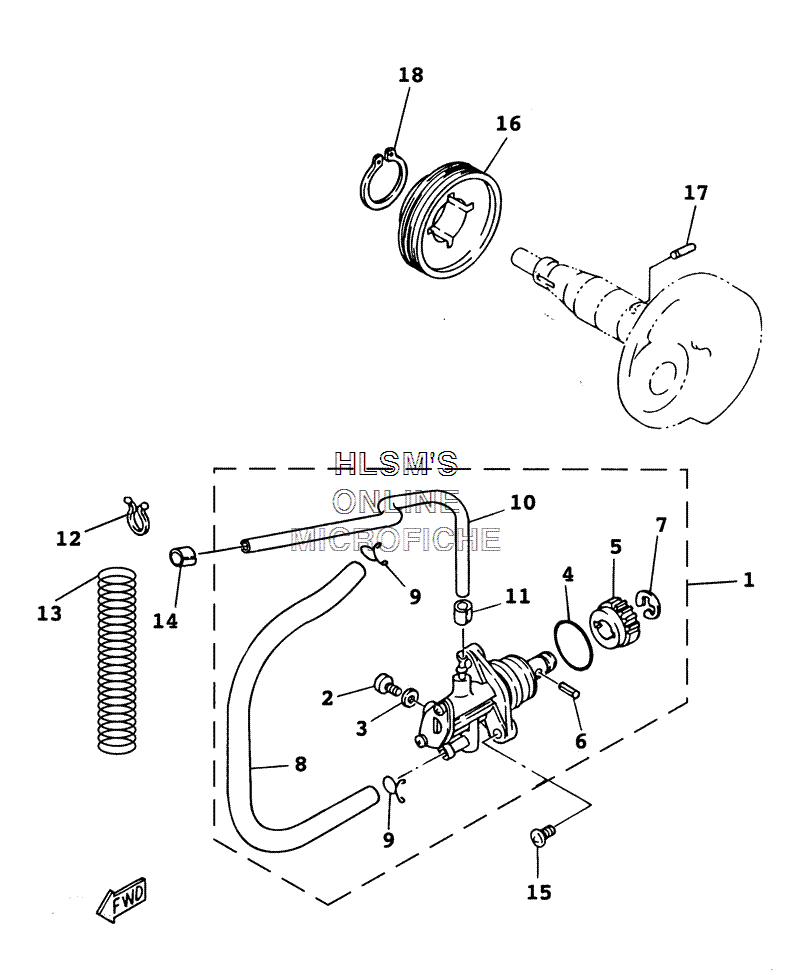

OIL PUMP для Yamaha ZUMA - 2003 года выпуска
-
№АртикулНазвание
-
15DA-E3100-01-00 OIL PUMP ASSY.OIL PUMP ASSY.
-
23WF-13185-00-00 ...BOLT, BREATHER...BOLT, BREATHER
-
31YU-13187-00-00 ...GASKET, BREATHER BOLT...GASKET, BREATHER BOLT
-
41YU-13473-00-00 ...O-RING...O-RING
-
53AA-13124-00-00 ...GEAR WORM WHEEL (40T)...GEAR WORM WHEEL (40T)
-
61YU-13516-00-00 ...PIN, DOWEL...PIN, DOWEL
-
71YY-13577-00-00 ...CLIP...CLIP
-
890445-090F6-00 ...HOSE...HOSE
-
990467-08003-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
1090445-055E5-00 ...HOSE...HOSE
-
1190468-02033-00 ...CLIP...CLIP
-
1290464-16801-00 CLAMPCLAMP
-
1390501-08845-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1490468-02033-00 CLIPCLIP
-
1598507-05014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
164VP-13178-00-00 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
1793603-12827-00 PIN, DOWELPIN, DOWEL
-
1899009-19400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
