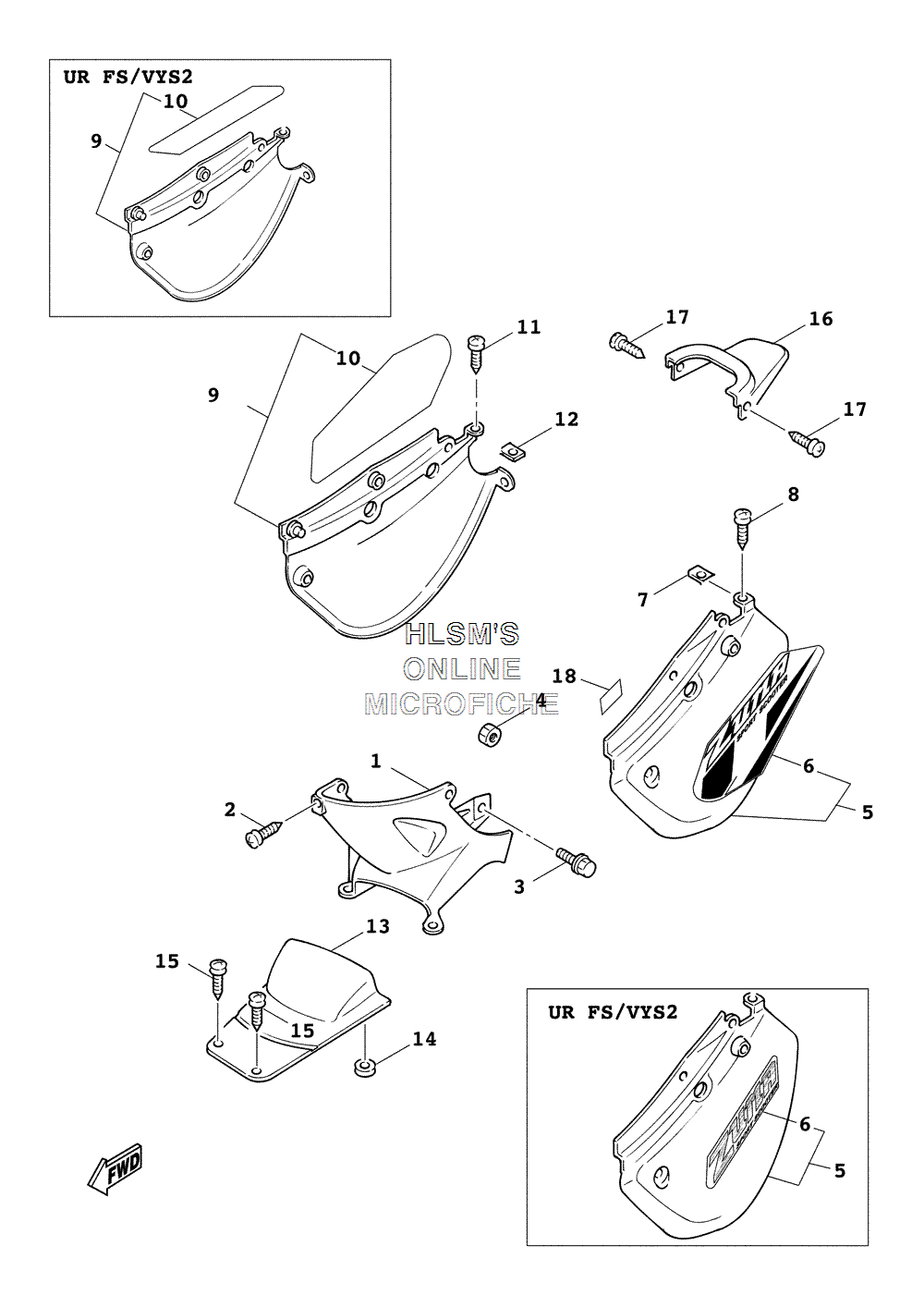

SIDE COVER для Yamaha ZUMA - 2003 года выпуска
-
№АртикулНазвание
-
14VP-F1711-00-00 COVER, SIDE 1COVER, SIDE 1
-
297707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
390159-06822-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
42GF-F1535-00-00 NUT 1NUT 1
-
54VP-X2172-60-P0 COVER, SIDE 2 (DPBMC)COVER, SIDE 2 (DPBMC)
-
54VP-X2172-20-1V COVER, SIDE 2 (FS)COVER, SIDE 2 (FS)
-
54VP-X2172-40-P3 COVER, SIDE 2 (VYS2)COVER, SIDE 2 (VYS2)
-
65PJ-F1784-00-00 ...EMBLEM 4 (DPBMC)...EMBLEM 4 (DPBMC)
-
65PJ-F1786-10-00 ...EMBLEM 6 (VYS2)...EMBLEM 6 (VYS2)
-
65PJ-F1786-00-00 ...EMBLEM 6 (FS)...EMBLEM 6 (FS)
-
790183-05042-00 NUT, SPRINGNUT, SPRING
-
897707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
94VP-X2173-60-P0 COVER, SIDE 3 (DPBMC)COVER, SIDE 3 (DPBMC)
-
94VP-X2173-20-1V COVER, SIDE 3 (FS)COVER, SIDE 3 (FS)
-
94VP-X2173-40-P3 COVER, SIDE 3 (VYS2)COVER, SIDE 3 (VYS2)
-
105PJ-F1786-00-00 ...EMBLEM 6 (FS)...EMBLEM 6 (FS)
-
105PJ-F1786-10-00 ...EMBLEM 6 (VYS2)...EMBLEM 6 (VYS2)
-
105PJ-F1785-00-00 ...EMBLEM 5 (DPBMC)...EMBLEM 5 (DPBMC)
-
1197707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
1290183-05042-00 NUT, SPRINGNUT, SPRING
-
134VP-F1741-00-00 COVER, SIDE 4COVER, SIDE 4
-
1490480-16278-00 GROMMETGROMMET
-
1597707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
164VP-F171E-00-P0 COVER, SIDE 5 (DPBMC)COVER, SIDE 5 (DPBMC)
-
164VP-F171E-00-1V COVER, SIDE 5 (FS)COVER, SIDE 5 (FS)
-
164VP-F171E-00-P3 COVER, SIDE 5 (VYS2)COVER, SIDE 5 (VYS2)
-
1797707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
184JK-F8446-00-00 LABEL, CAUTIONLABEL, CAUTION
