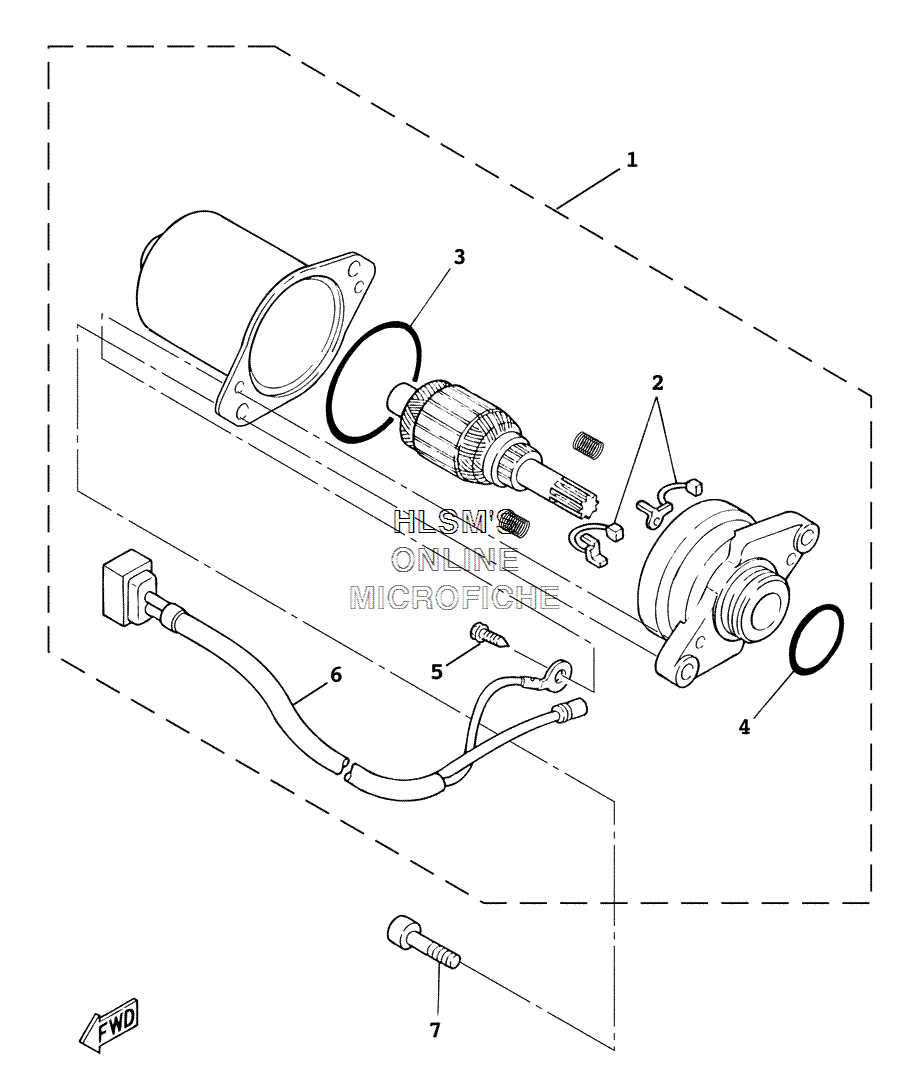

STARTING MOTOR ASSY. для Yamaha ZUMA - 2003 года выпуска
-
№АртикулНазвание
-
14WX-H1800-00-00 STARTING MOTOR ASSY.STARTING MOTOR ASSY.
-
23GF-H1801-10-00 ...BRUSH SET...BRUSH SET
-
33GF-H181Y-V0-00 ...GASKET, YOKE...GASKET, YOKE
-
493210-23614-00 ...O-RING...O-RING
-
598512-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
64WX-H183G-V0-00 ...CORD COMP....CORD COMP.
-
791317-06020-00 BOLTBOLT
