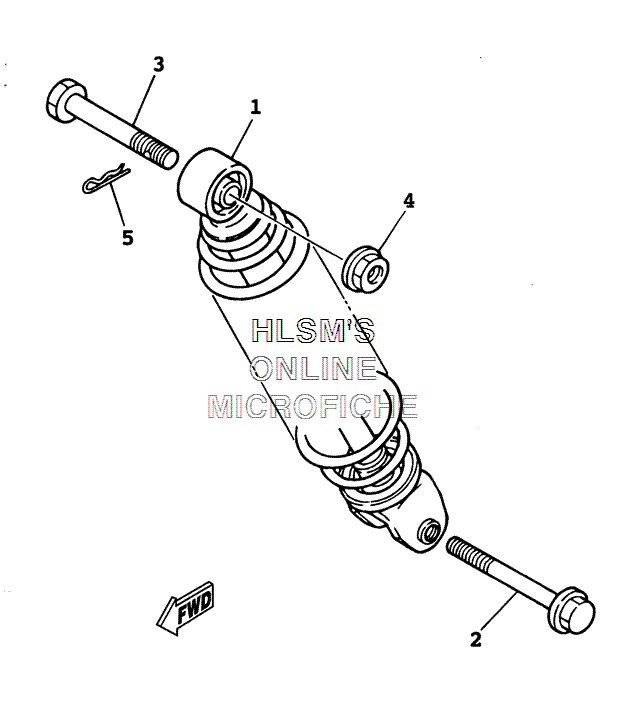

SUSPENSION - REAR SHOCK для Yamaha ZUMA - 2003 года выпуска
-
№АртикулНазвание
-
15JU-F2210-00-00 SHOCK ABSORBER ASSY., REARSHOCK ABSORBER ASSY., REAR
-
298517-08030-00 BOLT, FLANGEBOLT, FLANGE
-
390102-10031-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
490179-10394-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
590468-12006-00 CLIPCLIP
