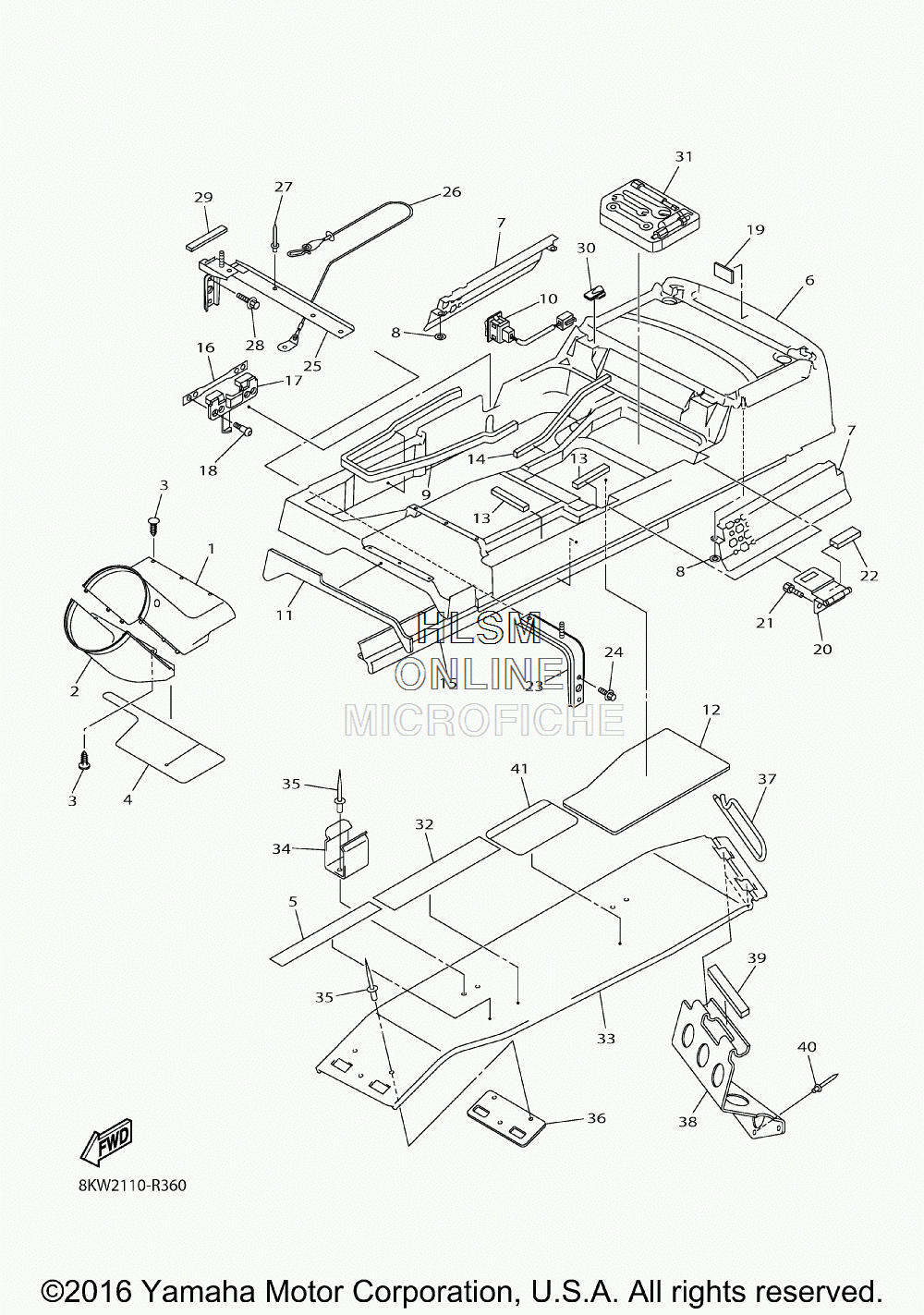

BELT GUARD W/ TOOL BOX для Yamaha VK PROFESSIONAL II - 2017 года выпуска
-
№АртикулНазвание
-
18KW-1246A-00-00 COVER 1COVER 1
-
28KW-1246E-00-00 COVER 2COVER 2
-
390269-05055-00 RIVETRIVET
-
48KW-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
58HF-1417E-00-00 LABEL, CAUTIONLABEL, CAUTION
-
68FN-77390-10-00 LUGGAGE BOX ASSYLUGGAGE BOX ASSY
-
78FN-77133-00-00 LOUVER 3LOUVER 3
-
890183-05068-00 NUT, SPRINGNUT, SPRING
-
98EN-83669-00-00 INSULATORINSULATOR
-
108ET-82917-00-00 SWITCHSWITCH
-
118FN-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
128FN-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
138FN-241A3-00-00 SEAL 3SEAL 3
-
148FN-241A4-00-00 SEAL 4SEAL 4
-
158FN-2196T-00-00 TRIM 1TRIM 1
-
168FN-2478C-00-00 BAR, SEAT LEVERBAR, SEAT LEVER
-
178FN-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
1890111-05020-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
195TG-84163-00-00 DAMPERDAMPER
-
208FN-24772-00-00 HINGE ASSYHINGE ASSY
-
2190110-06043-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
228FN-2414E-00-00 SEAL 2SEAL 2
-
238FN-2194N-01-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
2495812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
258FN-2194R-01-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
268FN-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
2790267-47186-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
2895812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
298FN-241A3-00-00 SEAL 3SEAL 3
-
308FN-24742-00-00 GROMMETGROMMET
-
318KW-28100-00-00 TOOL KITTOOL KIT
-
328JD-47578-00-00 LABEL 1LABEL 1
-
338FA-77311-02-00 GUARD, DRIVEGUARD, DRIVE
-
348CR-77338-00-00 STAY, BELTSTAY, BELT
-
3590267-48010-00 RIVET, BLIND (4.8X12 YELLOW)RIVET, BLIND (4.8X12 YELLOW)
-
368FA-77373-00-00 PROTECTORPROTECTOR
-
378CR-77384-01-00 PINPIN
-
388FN-21973-00-00 HOOKHOOK
-
398CR-77319-00-00 DAMPER 1DAMPER 1
-
4090267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
418BD-77762-00-00 LABEL, WARNING 2LABEL, WARNING 2
