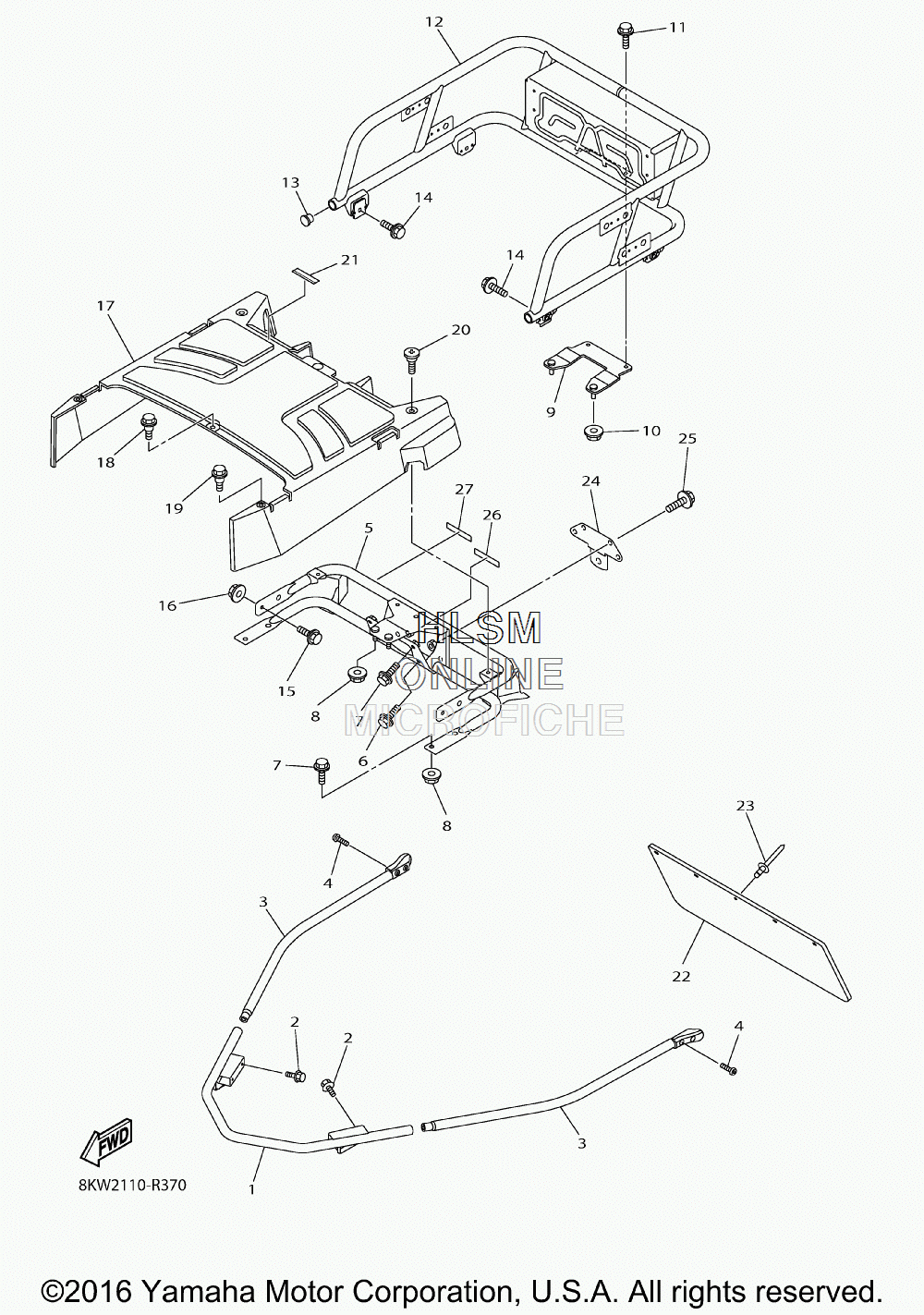

BUMPER - FRONT AND REAR для Yamaha VK PROFESSIONAL II - 2017 года выпуска
-
№АртикулНазвание
-
18KW-77511-00-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
38KW-77513-00-00 BUMPER, FRONT 3BUMPER, FRONT 3
-
490110-08127-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
58FN-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
695822-10020-00 BOLT, FLANGEBOLT, FLANGE
-
795822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
895702-08500-00 NUT, FLANGENUT, FLANGE
-
98KB-77531-00-00 BRACKET, FRONTBRACKET, FRONT
-
1095702-08500-00 NUT, FLANGENUT, FLANGE
-
1195812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
128KW-77540-00-00 REAR BUMPER COMP.REAR BUMPER COMP.
-
1390338-18122-00 PLUGPLUG
-
1495822-10020-00 BOLT, FLANGEBOLT, FLANGE
-
1595802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1695702-06500-00 NUT, FLANGENUT, FLANGE
-
178FN-77551-00-00 PROTECTOR 1PROTECTOR 1
-
1890109-06272-00 BOLTBOLT
-
1990109-063F1-00 BOLTBOLT
-
2090149-06263-00 SCREWSCREW
-
218FM-24897-01-00 EMBLEMEMBLEM
-
2283R-77595-00-00 FLAPFLAP
-
2390267-48086-00 RIVET, BLIND (4.8X19 BLACK)RIVET, BLIND (4.8X19 BLACK)
-
2484R-77592-00-00 BRACKET, HITCH 2BRACKET, HITCH 2
-
2595822-08025-00 BOLT, FLANGEBOLT, FLANGE
-
268GS-2817S-E0-00 LABEL, PULLING LOAD LIMITLABEL, PULLING LOAD LIMIT
-
278JT-77765-E0-00 LABEL, WARNING 5LABEL, WARNING 5
