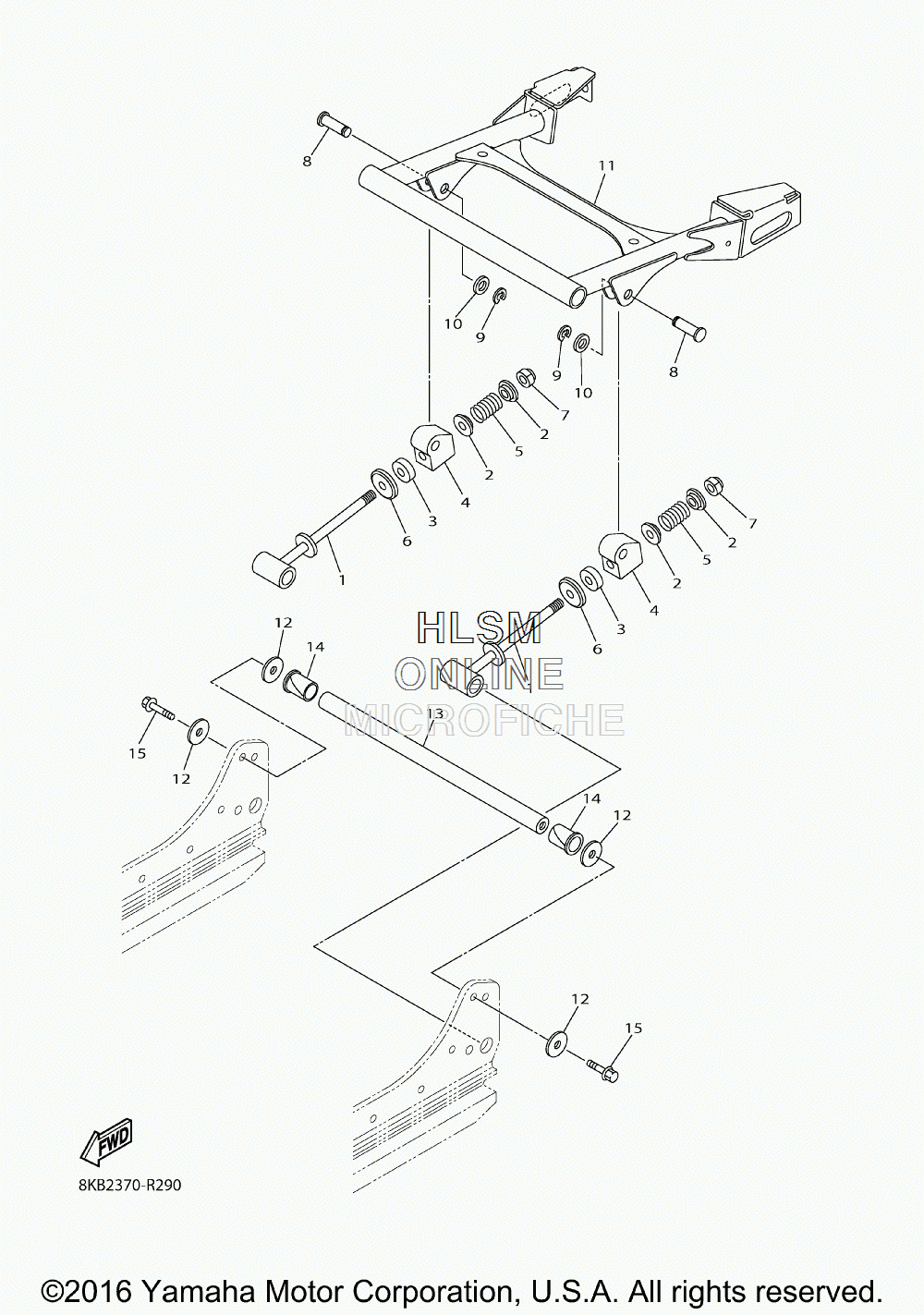

PIVOT ARM W/ SHOCK для Yamaha VK PROFESSIONAL II - 2017 года выпуска
-
№АртикулНазвание
-
183R-47337-10-00 SHAFT, PIVOTSHAFT, PIVOT
-
283R-23768-00-00 SEAT, SPRING 1SEAT, SPRING 1
-
383R-47335-00-00 SPRINGSPRING
-
48KA-47446-00-00 HOOK 1HOOK 1
-
590501-380A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
68KW-23768-00-00 SEAT, SPRING 1SEAT, SPRING 1
-
790185-12058-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890249-12006-00 PINPIN
-
999009-12400-00 CIRCLIPCIRCLIP
-
1090201-12055-00 WASHER, PLATEWASHER, PLATE
-
118KA-47333-00-00 ARM, PIVOT 3ARM, PIVOT 3
-
1290201-10742-00 WASHER, PLATEWASHER, PLATE
-
1383R-47485-02-00 SHAFT 3SHAFT 3
-
1490381-19111-00 BUSH, SOLIDBUSH, SOLID
-
1590105-10237-00 BOLT, FLANGEBOLT, FLANGE
