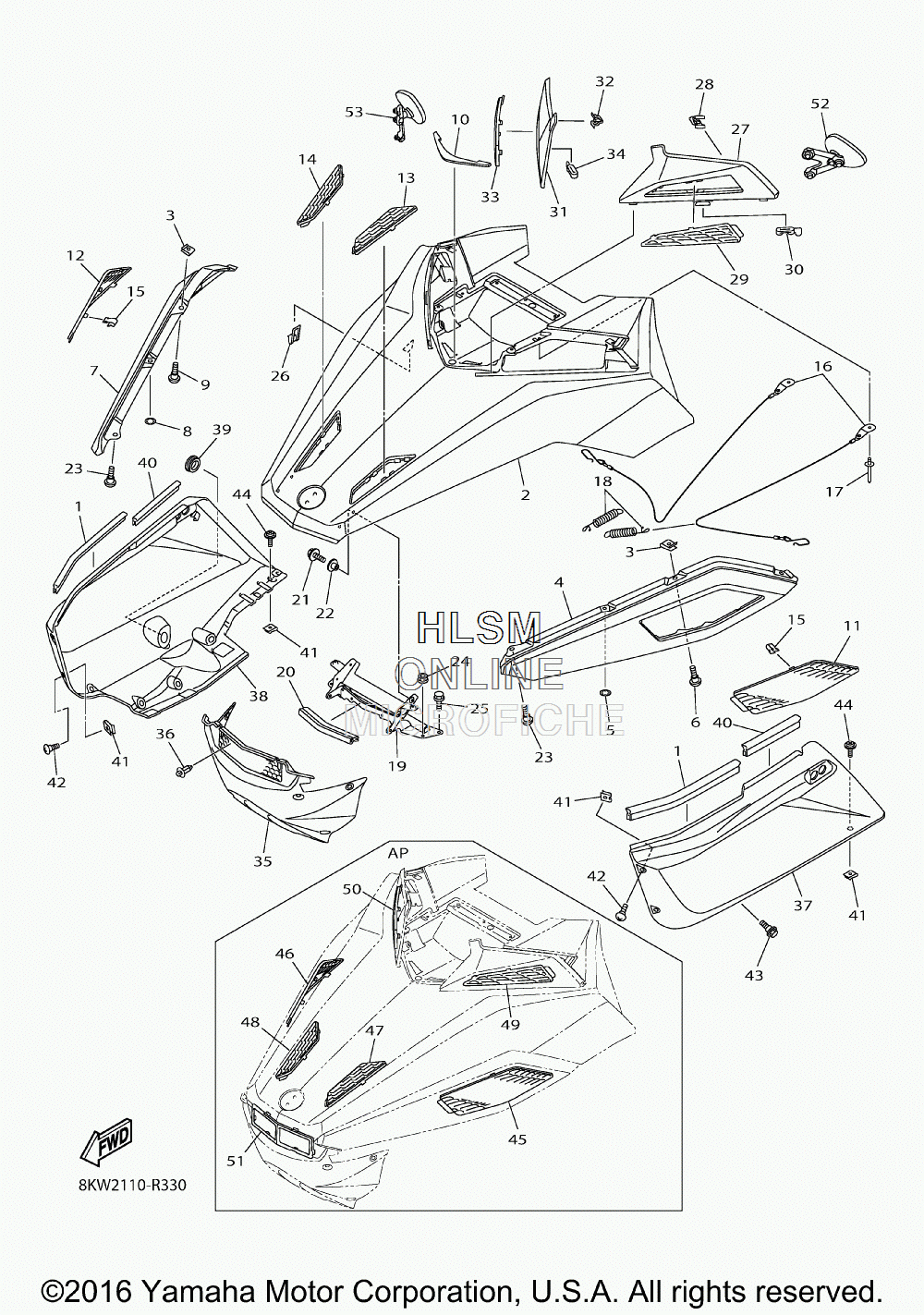

HOOD ASSY для Yamaha VK PROFESSIONAL II - 2017 года выпуска
-
№АртикулНазвание
-
18KW-78245-00-00 SEAL 1SEAL 1
-
28KW-77111-00-P1 SHROUD (VDOM1 - DARK ORANGE)SHROUD (VDOM1 - DARK ORANGE)
-
28KW-77111-00-P0 SHROUD (MS1 - MAT SILVER)SHROUD (MS1 - MAT SILVER)
-
390183-06053-00 NUT, SPRINGNUT, SPRING
-
48KW-21711-00-P0 COVER, SIDE 1 (MBL2)COVER, SIDE 1 (MBL2)
-
590183-08065-00 NUT, SPRINGNUT, SPRING
-
690154-06009-00 SCREW, BINDINGSCREW, BINDING
-
78KW-21721-00-P0 COVER, SIDE 2 (MBL2)COVER, SIDE 2 (MBL2)
-
890183-08065-00 NUT, SPRINGNUT, SPRING
-
990154-06009-00 SCREW, BINDINGSCREW, BINDING
-
108KW-84366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
-
118KW-77441-10-00 LOUVER 1LOUVER 1
-
128KW-77442-10-00 LOUVER 2LOUVER 2
-
138KW-77443-10-00 LOUVER 3LOUVER 3
-
148KW-77444-10-00 LOUVER 4LOUVER 4
-
158KW-77135-00-00 CLAMP 1CLAMP 1
-
168KW-77118-00-00 STOPPER, SHROUDSTOPPER, SHROUD
-
1790267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
1889A-77159-00-00 CLAMP, RODCLAMP, ROD
-
198KW-77140-00-00 HINGE ASSYHINGE ASSY
-
208KW-78246-00-00 SEAL, FLOOR 2SEAL, FLOOR 2
-
2195802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2290387-06681-00 COLLARCOLLAR
-
2390154-06009-00 SCREW, BINDINGSCREW, BINDING
-
2495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2595822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
268FA-77135-00-00 CLAMP 1CLAMP 1
-
278KW-77231-00-P0 FAIRING (MS1 - MAT SILVER)FAIRING (MS1 - MAT SILVER)
-
278KW-77231-00-P1 FAIRING (VDOM1 - DARK ORANGE)FAIRING (VDOM1 - DARK ORANGE)
-
2890468-040A0-00 CLIPCLIP
-
298KW-77109-10-00 LOUVER 5LOUVER 5
-
3082H-77223-00-00 FASTNERFASTNER
-
318KW-7723A-00-P0 FAIRING 2 (MS1 - MAT SILVER)FAIRING 2 (MS1 - MAT SILVER)
-
318KW-7723A-00-P1 FAIRING 2 (VDOM1 - DARK ORANGE)FAIRING 2 (VDOM1 - DARK ORANGE)
-
3290468-040A0-00 CLIPCLIP
