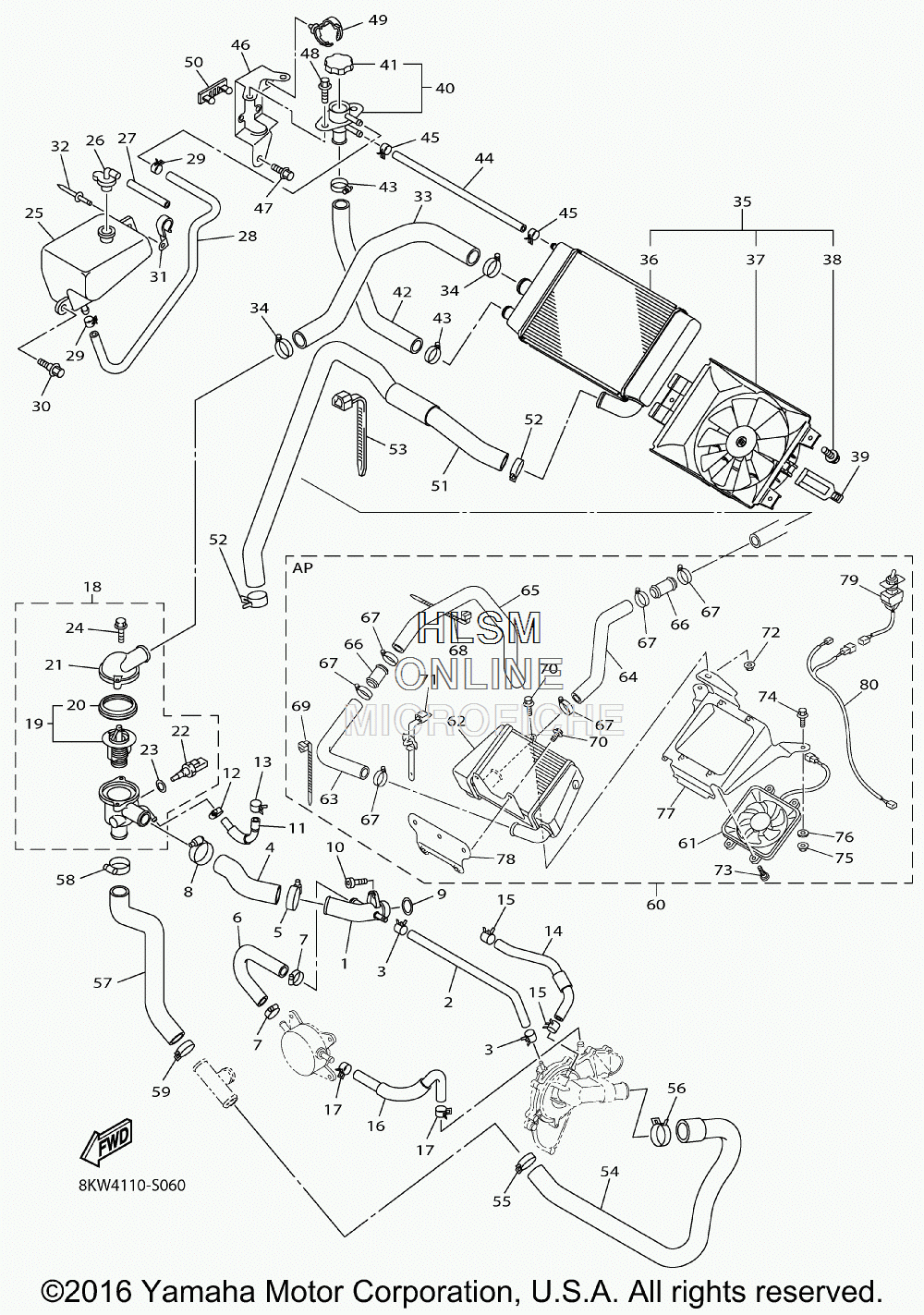

COOLING SYSTEM для Yamaha VK PROFESSIONAL II - 2017 года выпуска
-
№АртикулНазвание
-
18GL-12482-00-00 PIPE 2PIPE 2
-
28GL-12485-00-00 PIPE 5PIPE 5
-
390467-110A2-00 CLIPCLIP
-
48KW-1243E-00-00 HOSE 2HOSE 2
-
590450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
68GL-12589-00-00 HOSE 6HOSE 6
-
790450-19001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
993210-235A1-00 O-RINGO-RING
-
1091312-06016-00 BOLTBOLT
-
118KW-12577-00-00 HOSE 2HOSE 2
-
1290460-11M17-00 CLAMP, HOSECLAMP, HOSE
-
1390467-120A5-00 CLIPCLIP
-
148GL-12578-00-00 HOSE 3HOSE 3
-
1590467-110A2-00 CLIPCLIP
-
168ES-12588-00-00 HOSE 5HOSE 5
-
1790467-17089-00 CLIPCLIP
-
188KW-12580-00-00 JOINT ASSYJOINT ASSY
-
198FN-12410-00-00 ...THERMOSTAT ASSY...THERMOSTAT ASSY
-
208EK-12412-00-00 ......SEAL, THERMOSTAT......SEAL, THERMOSTAT
-
215EB-12413-00-00 ...COVER, THERMOSTAT...COVER, THERMOSTAT
-
225YP-85790-00-00 ...THERMOSENSOR ASSY...THERMOSENSOR ASSY
-
2390201-12790-00 ...WASHER, PLATE...WASHER, PLATE
-
2495022-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
258FN-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
2689A-21815-00-00 CAPCAP
-
2790445-112E0-00 HOSE (L70)HOSE (L70)
-
2890445-120J8-00 HOSE (L450)HOSE (L450)
-
2990467-11032-00 CLIPCLIP
-
3090149-06148-00 SCREWSCREW
-
3190465-10048-00 CLAMPCLAMP
-
3290267-48182-00 RIVET, BLIND (4.8X23)RIVET, BLIND (4.8X23)
-
338KW-1244G-00-00 HOSE, 4HOSE, 4
-
3490450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
358KW-1240A-00-00 RADIATOR ASSYRADIATOR ASSY
-
368KW-12461-00-00 ...RADIATOR COMP...RADIATOR COMP
-
378KW-12405-00-00 ...BLOWER ASSY...BLOWER ASSY
-
385GJ-12675-00-00 ...BOLT, BLOWER HOLDING...BOLT, BLOWER HOLDING
-
398FA-2389E-00-00 LATCHLATCH
-
408FN-12590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
413XP-12462-00-00 ...CAP, RADIATOR...CAP, RADIATOR
-
428KW-1244H-00-00 HOSE 5HOSE 5
-
4390450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
4490445-120J6-00 HOSE (L250)HOSE (L250)
-
4590467-11032-00 CLIPCLIP
-
468KW-1244E-00-00 BRACKET 1BRACKET 1
-
4795822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4895812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4990464-20181-00 CLAMPCLAMP
-
508FA-83614-00-00 BRACKETBRACKET
-
518KW-12477-00-00 PIPE 7PIPE 7
-
5290467-28144-00 CLIPCLIP
-
5390464-12045-00 CLAMPCLAMP
-
548FN-1248A-00-00 PIPE 8PIPE 8
-
5590467-28046-00 CLIPCLIP
-
5690467-310A0-00 CLIPCLIP
-
578KW-1248E-00-00 PIPE 9PIPE 9
-
5890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
5990467-28144-00 CLIPCLIP
-
608KW-W1246-00-00 VK10 SUB RADIATOR KIT (OPT)VK10 SUB RADIATOR KIT (OPT)
-
618FP-12405-01-00 ...BLOWER ASSY (OPT)...BLOWER ASSY (OPT)
-
628GS-12461-00-00 ...RADIATOR COMP (OPT)...RADIATOR COMP (OPT)
-
638FN-1244J-00-00 ...HOSE 6 (OPT)...HOSE 6 (OPT)
-
648FN-1243A-00-00 ...HOSE 1 (OPT)...HOSE 1 (OPT)
-
658KW-1243F-00-00 ......HOSE, 3 (OPT)......HOSE, 3 (OPT)
-
668FN-12469-00-00 ...JOINT 1 (OPT)...JOINT 1 (OPT)
-
6790450-35001-00 ...HOSE CLAMP ASSY (OPT)...HOSE CLAMP ASSY (OPT)
-
6890464-15195-00 ...CLAMP (OPT)...CLAMP (OPT)
-
6990460-15126-00 ...CLAMP, HOSE (OPT)...CLAMP, HOSE (OPT)
-
7095822-06012-00 ...BOLT, FLANGE (OPT)...BOLT, FLANGE (OPT)
-
7190464-07012-00 ...CLAMP (OPT)...CLAMP (OPT)
-
7295702-06500-00 ...NUT, FLANGE (OPT)...NUT, FLANGE (OPT)
-
7390149-05129-00 ...SCREW (OPT)...SCREW (OPT)
-
7495822-08016-00 ...BOLT, FLANGE (OPT)...BOLT, FLANGE (OPT)
-
7595702-08500-00 ...NUT, FLANGE (OPT)...NUT, FLANGE (OPT)
-
7690201-08784-00 ...WASHER, PLATE (OPT)...WASHER, PLATE (OPT)
-
778FN-1244F-00-00 ...BRACKET 2 (OPT)...BRACKET 2 (OPT)
-
788KW-12464-00-00 ...STAY, RADIATOR (OPT)...STAY, RADIATOR (OPT)
-
798CN-82917-01-00 ...SWITCH (OPT)...SWITCH (OPT)
-
808FN-82509-00-00 ...WIRE, SUB LEAD (OPT)...WIRE, SUB LEAD (OPT)
