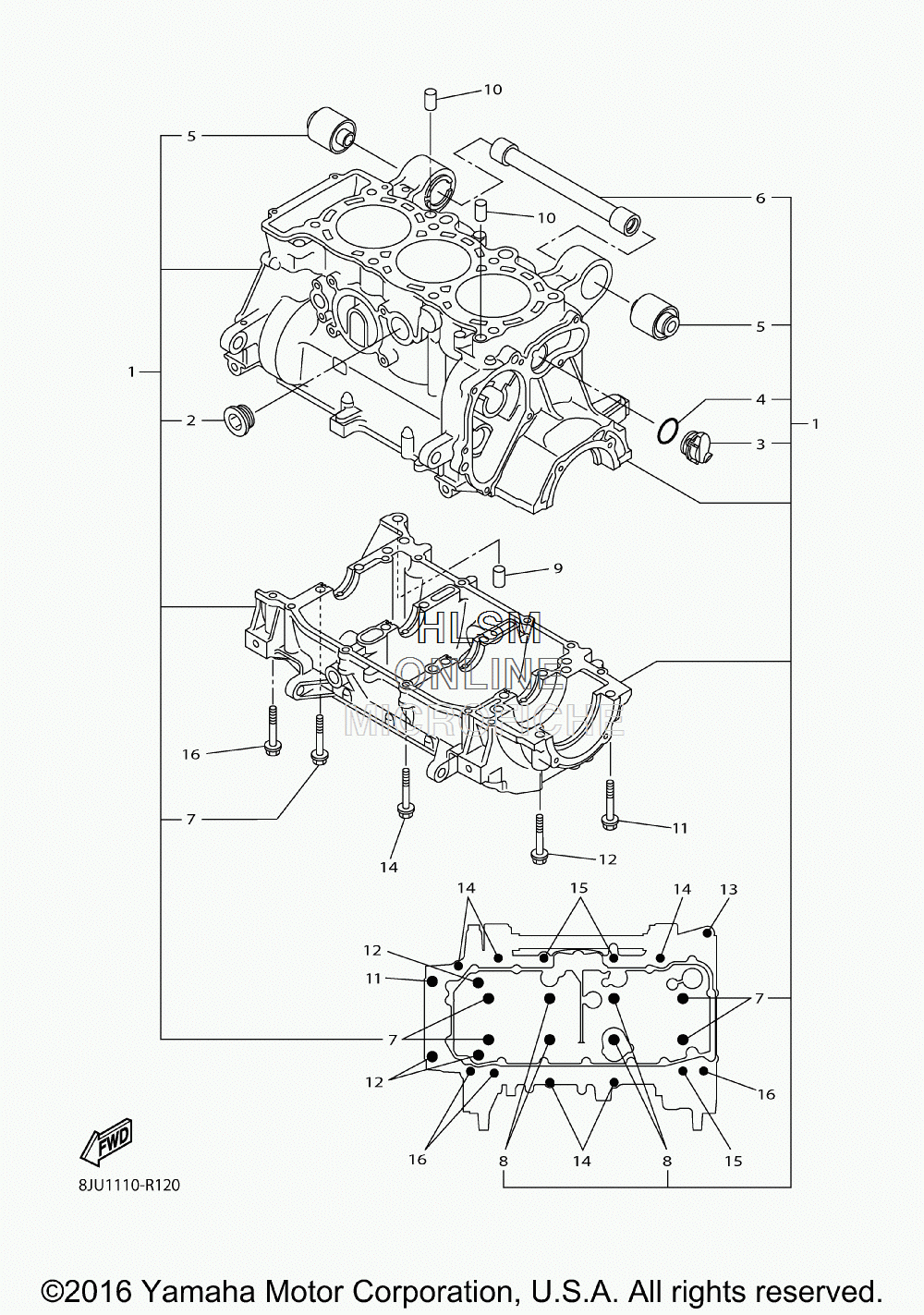

CRANKCASE ASSY для Yamaha VK PROFESSIONAL II - 2017 года выпуска
-
№АртикулНазвание
-
18JU-15109-09-00 CRANKCASE ASSYCRANKCASE ASSY
-
290340-27129-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
38ES-15167-00-00 ...PLUG, BLIND 1...PLUG, BLIND 1
-
493210-24709-00 ...O-RING...O-RING
-
58FA-2139X-00-00 ...DAMPER...DAMPER
-
68ES-21459-00-00 ...SPACER...SPACER
-
790119-09004-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
890119-09011-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
999530-10014-00 PIN, DOWELPIN, DOWEL
-
1099530-10114-00 PIN, DOWELPIN, DOWEL
-
1195812-08055-00 BOLT, FLANGEBOLT, FLANGE
-
1295812-08070-00 BOLT, FLANGEBOLT, FLANGE
-
1390109-06185-00 BOLTBOLT
-
1495812-06055-00 BOLT, FLANGEBOLT, FLANGE
-
1595812-06080-00 BOLT, FLANGEBOLT, FLANGE
-
1690105-06123-00 BOLT, FLANGEBOLT, FLANGE
