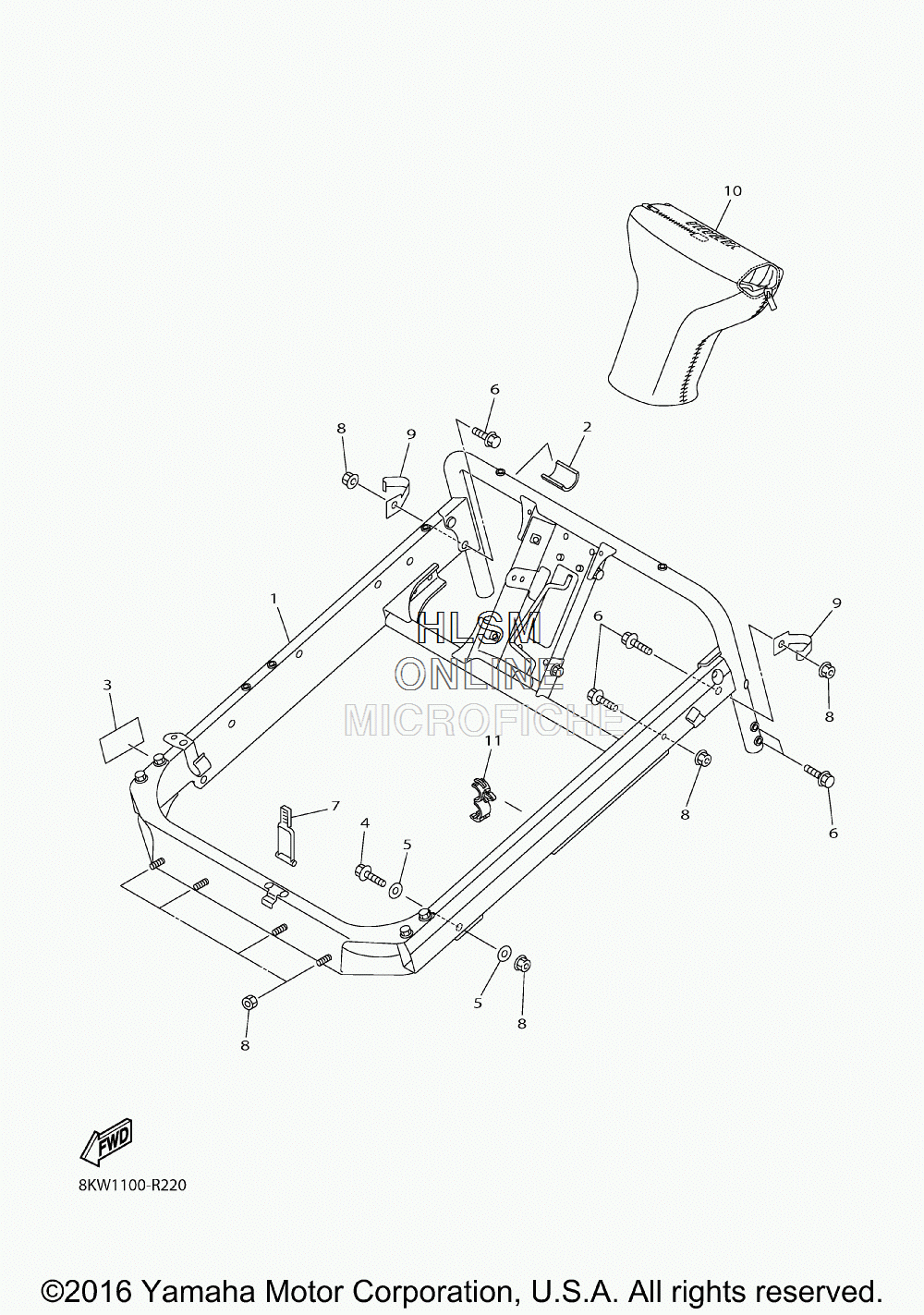

HANDLEBAR PAD W/ STEERING GATE для Yamaha VK PROFESSIONAL II - 2017 года выпуска
-
№АртикулНазвание
-
18KW-23870-00-00 STEERING GATE COMP.STEERING GATE COMP.
-
28V0-23858-00-00 SPACERSPACER
-
38FA-2389C-E0-00 LABEL, CAUTIONLABEL, CAUTION
-
490105-081A7-00 BOLT, FLANGEBOLT, FLANGE
-
590201-08326-00 WASHER, PLATEWASHER, PLATE
-
695822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
78FA-2389E-00-00 LATCHLATCH
-
895602-08200-00 NUT, U FLANGENUT, U FLANGE
-
990462-10022-00 CLAMPCLAMP
-
108KW-23815-00-00 PAD, STEERINGPAD, STEERING
-
1190464-18246-00 CLAMPCLAMP
