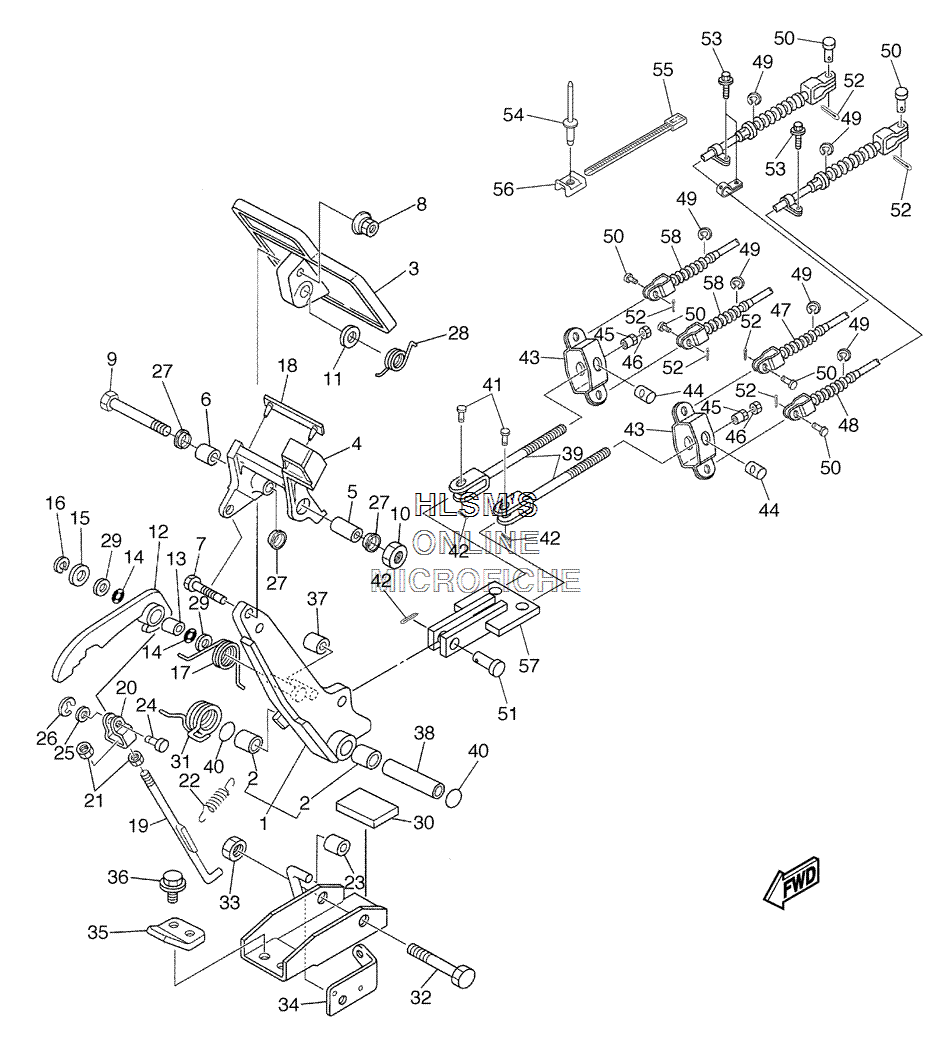

BRAKE для Yamaha PRO HAULER 1000 - 2004 года выпуска
-
№АртикулНазвание
-
1J46-27250-03-00 BRAKE ARM COMP.BRAKE ARM COMP.
-
290384-14080-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
3JU0-27211-01-00 PEDAL, BRAKEPEDAL, BRAKE
-
4JU0-25671-00-00 PEDAL, PARKING BRAKEPEDAL, PARKING BRAKE
-
590387-08014-00 COLLARCOLLAR
-
690387-08013-00 COLLARCOLLAR
-
797027-06035-00 BOLTBOLT
-
890179-07564-00 NUTNUT
-
997027-08100-00 BOLTBOLT
-
1095307-08600-00 NUTNUT
-
1192907-08200-00 WASHERWASHER
-
12J17-25666-02-00 SECTOR, PARKING BRAKESECTOR, PARKING BRAKE
-
1390384-10162-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
14J17-27221-00-00 SEAL, SHAFTSEAL, SHAFT
-
1592907-10600-00 WASHER, PLATEWASHER, PLATE
-
1699001-07600-00 CIRCLIPCIRCLIP
-
1790508-14548-00 SPRING, TORSIONSPRING, TORSION
-
18J17-25672-01-00 PAD, PARKING PEDALPAD, PARKING PEDAL
-
19J17-27231-03-00 ROD, BRAKEROD, BRAKE
-
20J17-27232-00-00 END, ROD 2END, ROD 2
-
2195307-06700-00 NUTNUT
-
2290506-09001-00 SPRING, TENSIONSPRING, TENSION
-
23J17-25673-00-00 DAMPER, BRAKEDAMPER, BRAKE
-
24J17-27228-00-00 PIN, JOINTPIN, JOINT
-
2592907-05600-00 WASHER, PLATEWASHER, PLATE
-
2699001-04600-00 CIRCLIPCIRCLIP
-
2790387-12009-00 COLLARCOLLAR
-
2890508-32015-00 SPRING, TORSIONSPRING, TORSION
-
2990201-104G8-00 WASHER, PLATEWASHER, PLATE
-
30JN3-F7245-00-00 PAD, BRAKE PEDALPAD, BRAKE PEDAL
-
3190508-40007-00 SPRING, TORSIONSPRING, TORSION
-
3290101-10884-00 BOLTBOLT
-
3395607-10200-00 NUT, U FLANGENUT, U FLANGE
-
34J55-2252M-00-00 BRACKET, 3BRACKET, 3
-
35J17-27246-00-00 NAIL, BRAKENAIL, BRAKE
-
3690105-08878-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
37J17-25673-00-00 DAMPER, BRAKEDAMPER, BRAKE
-
3890387-107F8-00 COLLARCOLLAR
-
39JN6-F5685-00-00 RODROD
-
4093210-132A8-00 O-RINGO-RING
-
4191701-10022-00 PIN, CLEVISPIN, CLEVIS
-
4291490-30015-00 PIN, COTTERPIN, COTTER
-
43J10-25681-00-00 EQUALIZER, BRAKEEQUALIZER, BRAKE
-
4490249-14129-00 PINPIN
-
4590179-08894-00 NUTNUT
-
4695307-08700-00 NUTNUT
-
47JU9-F6341-00-00 CABLE, BRAKECABLE, BRAKE
-
48JU9-F6351-00-00 CABLE, BRAKECABLE, BRAKE
-
4999001-09600-00 CIRCLIPCIRCLIP
-
5091701-08018-00 PIN, CLEVISPIN, CLEVIS
-
5191701-10028-00 PIN, CLEVISPIN, CLEVIS
-
5291490-25015-00 PIN, COTTERPIN, COTTER
-
5390105-06876-00 BOLT, FLANGEBOLT, FLANGE
-
5490267-489U1-00 RIVET, BLINDRIVET, BLIND
-
5590464-40825-00 CLAMPCLAMP
-
5690207-05800-00 WASHER, FINISHWASHER, FINISH
-
57JR6-F7215-00-00 LINKLINK
-
58JU9-F6361-00-00 CABLE, BRAKECABLE, BRAKE
