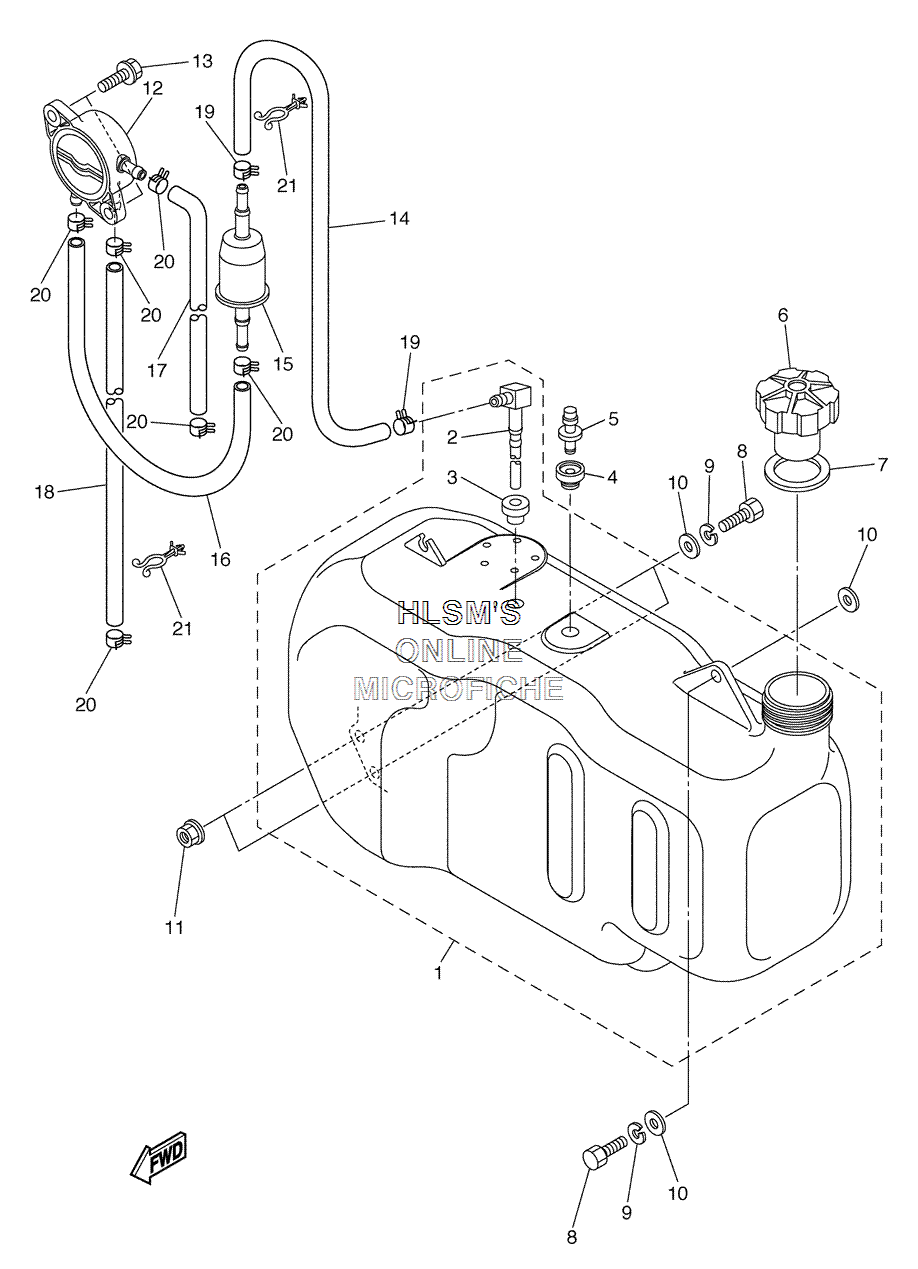

FUEL TANK ASSY. для Yamaha PRO HAULER 1000 - 2004 года выпуска
-
№АртикулНазвание
-
1JU5-F4110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
2JU5-F4300-00-00 ...FUEL PIPE JOINT...FUEL PIPE JOINT
-
3JU5-F4375-00-00 ...GROMMET...GROMMET
-
4J10-21773-00-00 ...GROMMET...GROMMET
-
5J24-24460-01-00 ...RELEASE VALVE ASSY....RELEASE VALVE ASSY.
-
6J24-24620-01-00 BODY CAP ASSY.BODY CAP ASSY.
-
7J10-24612-00-00 GASKET, CAPGASKET, CAP
-
897007-08025-00 BOLTBOLT
-
992907-08100-00 WASHER, SPRINGWASHER, SPRING
-
1090201-088S2-00 WASHER, PLATEWASHER, PLATE
-
119560P-08200-00 NUTNUT
-
12JN6-F4410-10-00 FUEL PUMP ASSY.FUEL PUMP ASSY.
-
13JN6-F3394-00-00 BOLT, SPECIALBOLT, SPECIAL
-
14JU5-F4312-00-00 PIPE 2PIPE 2
-
15JN6-F4560-00-00 FILTER ASSY.FILTER ASSY.
-
16JN6-F4311-20-00 PIPE, FUEL 1PIPE, FUEL 1
-
17JU9-F4313-00-00 PIPE 3PIPE 3
-
18JU7-F4314-00-00 PIPE 4PIPE 4
-
1990467-12845-00 CLIP, SCISSORCLIP, SCISSOR
-
2090467-10846-00 CLIPCLIP
-
2190464-11816-00 CLAMPCLAMP
