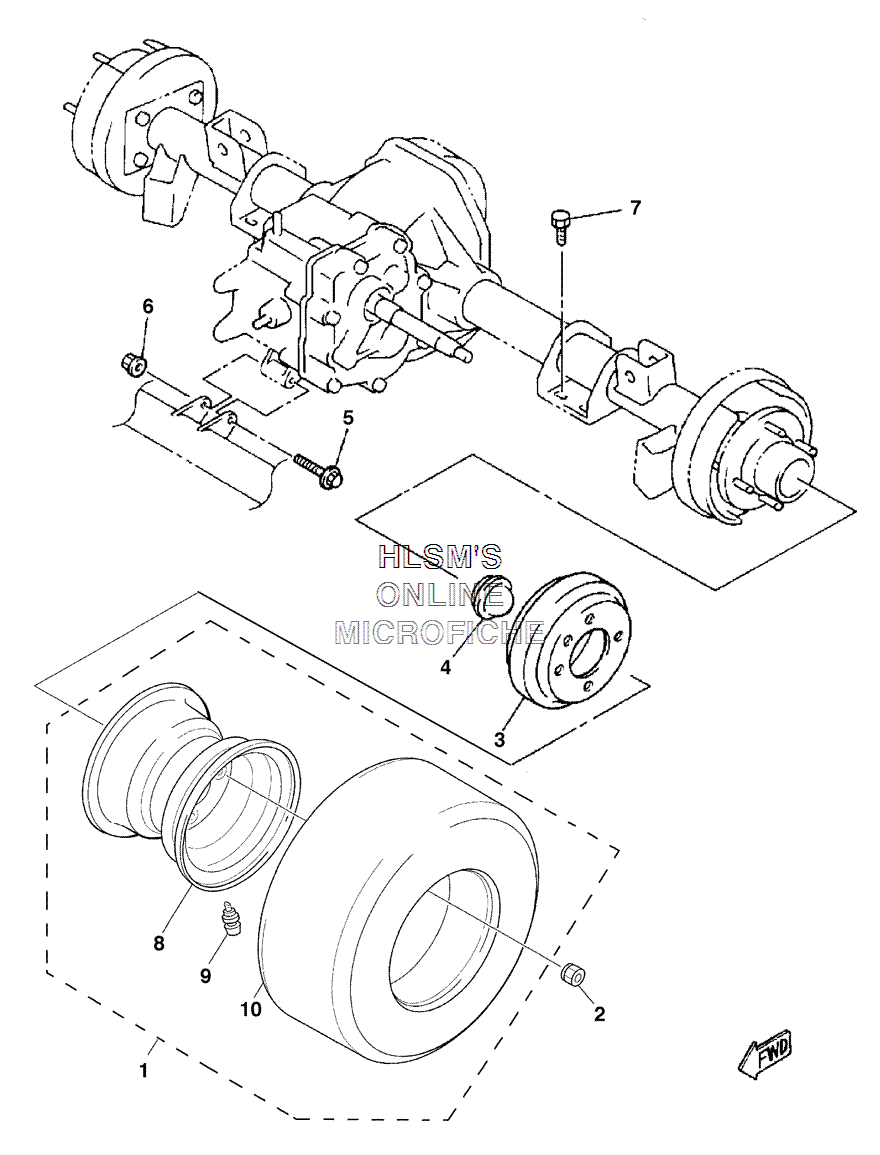

REAR AXLE MOUNT WHEEL для Yamaha PRO HAULER 1000 - 2004 года выпуска
-
№АртикулНазвание
-
1JW5-F5300-00-00 WHEEL ASSY. (22X11-10 6PLY 244)WHEEL ASSY. (22X11-10 6PLY 244)
-
290179-12262-00 NUTNUT
-
3J55-G6521-10-00 DRUMDRUM
-
4JN6-F5118-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
59581P-08075-00 BOLT, FLANGEBOLT, FLANGE
-
695707-08500-00 NUT, FLANGENUT, FLANGE
-
79751P-10620-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
8JW5-F5390-00-00 ...RIM, REAR, BLACK...RIM, REAR, BLACK
-
993900-00815-00 ...VALVE STEM...VALVE STEM
-
1094111-10802-00 ...TIRE (DURO DESERT 22)...TIRE (DURO DESERT 22)
