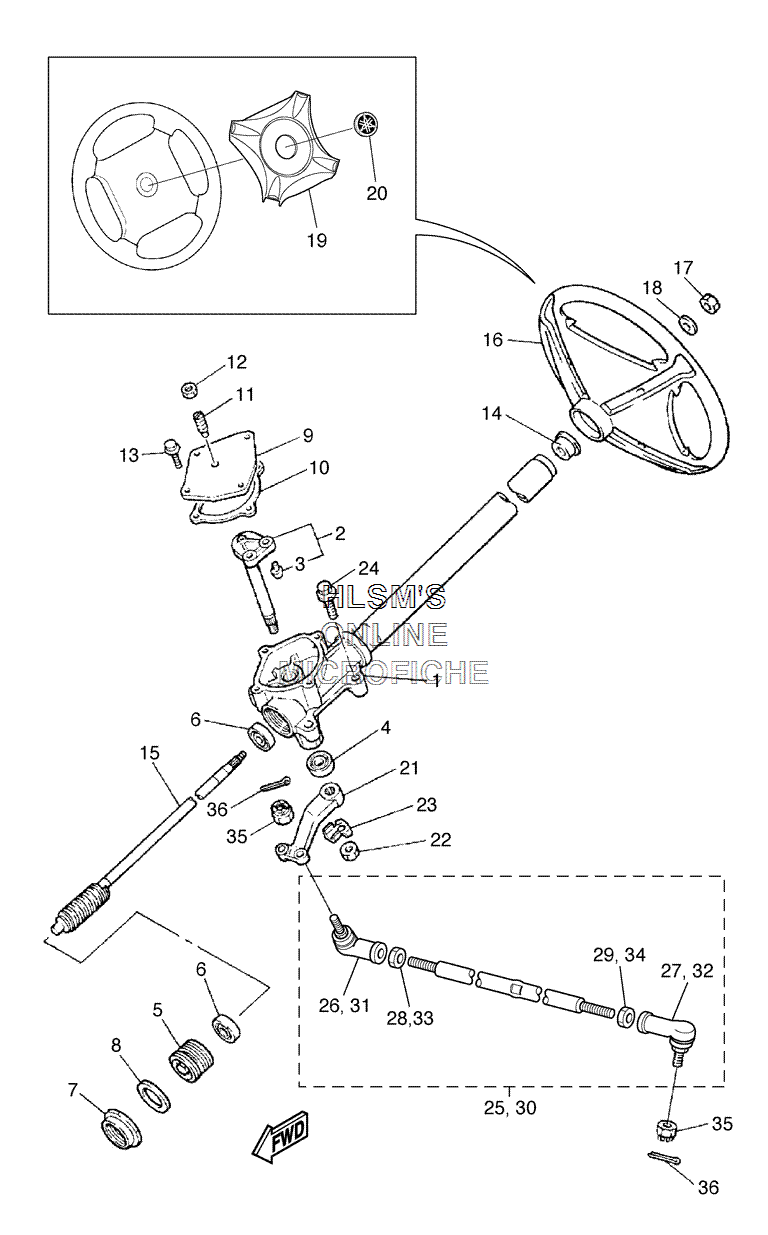

SUSPENSION - FRONT FORK для Yamaha PRO HAULER 1000 - 2004 года выпуска
-
№АртикулНазвание
-
1JG5-F3811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
2J38-23816-00-00 ARM, PITMANARM, PITMAN
-
3J38-23836-00-00 ...PIN, PITMAN...PIN, PITMAN
-
493102-22082-00 OIL SEALOIL SEAL
-
5J55-F3876-00-00 BOLTBOLT
-
693332-000Y2-00 BEARINGBEARING
-
7J10-23877-00-00 NUTNUT
-
8J10-23444-00-00 WASHERWASHER
-
9JN3-F3818-00-00 COVER, STEERINGCOVER, STEERING
-
10J38-23462-01-00 SEAL, STEERINGSEAL, STEERING
-
11J10-F3459-00-00 BOLTBOLT
-
1290170-08024-00 NUTNUT
-
1395807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
14JN3-F3814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
15J10-23840-00-00 STEERING SHAFT ASSY.STEERING SHAFT ASSY.
-
16JN3-F3838-00-00 WHEEL, STEERINGWHEEL, STEERING
-
1790185-12061-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
189290P-12200-00 WASHERWASHER
-
195UG-F3818-00-00 COVER, STEERINGCOVER, STEERING
-
205FU-F175B-01-00 TUNING FORK MARKTUNING FORK MARK
-
21J38-23826-01-00 ARM, IDLERARM, IDLER
-
2295707-16300-00 NUT, FLANGENUT, FLANGE
-
2390215-16814-00 WASHER, LOCKWASHER, LOCK
-
2490105-10880-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
25JU9-F3830-00-00 TIE ROD ASSY. (L.H)TIE ROD ASSY. (L.H)
-
26JN6-F3841-00-00 ...JOINT, UNIVERSAL 1...JOINT, UNIVERSAL 1
-
27JN6-F3845-00-00 ...JOINT, UNIVERSAL 2...JOINT, UNIVERSAL 2
-
289530N-10600-00 ...NUT...NUT
-
2990170-10414-00 ...NUT...NUT
-
30JU9-F3850-00-00 TIE ROD ASSY. (R.H)TIE ROD ASSY. (R.H)
-
31JN6-F3841-00-00 ...JOINT, UNIVERSAL 1...JOINT, UNIVERSAL 1
-
32JN6-F3845-00-00 ...JOINT, UNIVERSAL 2...JOINT, UNIVERSAL 2
-
339530N-10600-00 ...NUT...NUT
-
3490170-10414-00 ...NUT,HEXAGON (L/H THREAD)...NUT,HEXAGON (L/H THREAD)
-
3595607-10200-00 NUT, U FLANGENUT, U FLANGE
-
3691401-25020-00 PIN, COTTERPIN, COTTER
