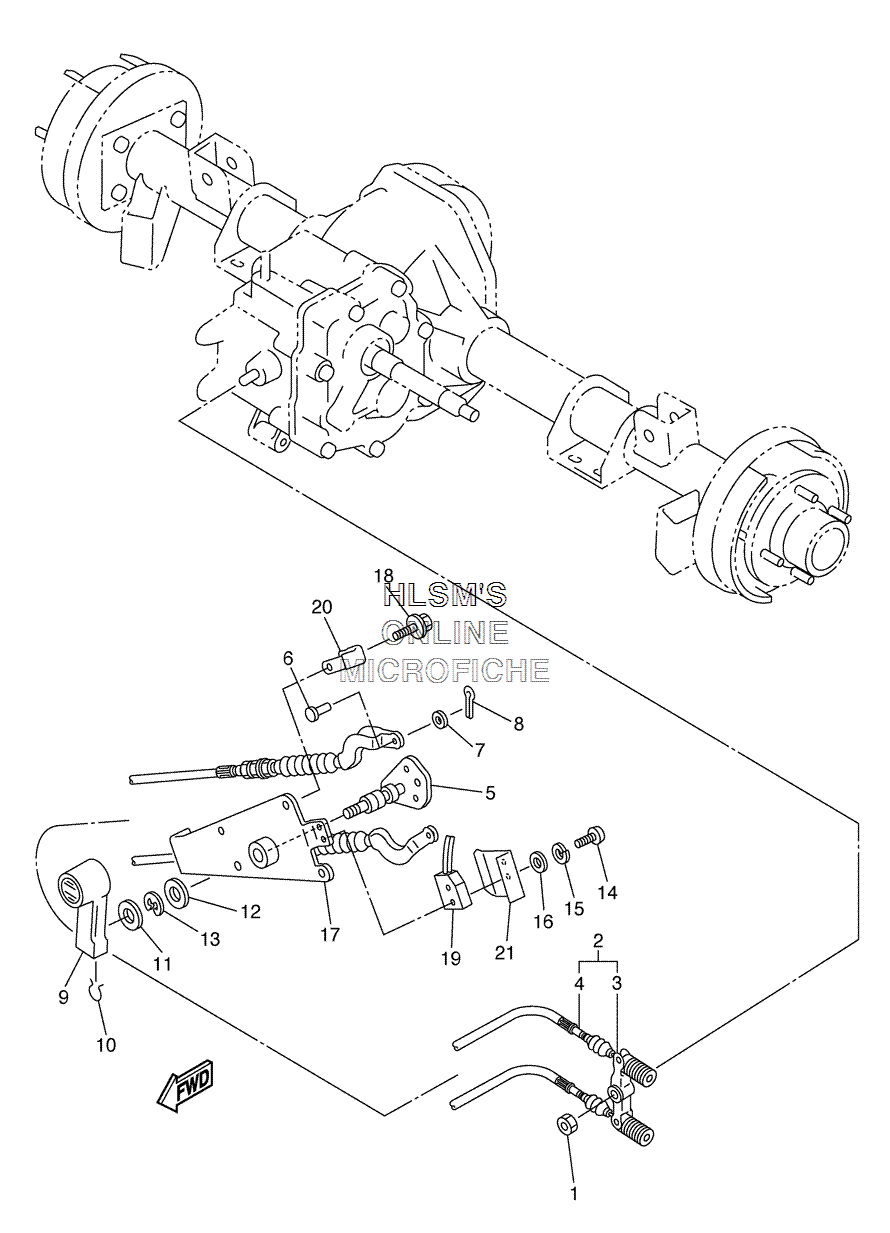

SHIFTER CABLES для Yamaha PRO HAULER 1000 - 2004 года выпуска
-
№АртикулНазвание
-
195607-08100-00 NUT, UNUT, U
-
2JJ3-G8330-01-00 CABLE END ASSY.CABLE END ASSY.
-
3J55-G6383-00-00 ...LEVER, SHIFT 2...LEVER, SHIFT 2
-
4JJ3-G6371-01-00 ...WIRE, SHIFT...WIRE, SHIFT
-
5JF2-46382-00-00 LEVER, SHIFT 1LEVER, SHIFT 1
-
691701-06014-00 PIN, CLEVISPIN, CLEVIS
-
79290P-06600-00 WASHERWASHER
-
891401-20012-00 PIN, COTTERPIN, COTTER
-
9JN3-G6381-00-00 KNOB, SHIFTKNOB, SHIFT
-
10JN3-G6376-00-00 SPRING SETSPRING SET
-
1190201-208S8-00 WASHER, PLATEWASHER, PLATE
-
1290201-198S7-00 WASHER, PLATEWASHER, PLATE
-
1399009-19400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
1498507-04025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1592907-04100-00 WASHER, SPRINGWASHER, SPRING
-
1692907-04600-00 WASHERWASHER
-
17JN3-G6372-00-00 BRACKET, SHIFT WIREBRACKET, SHIFT WIRE
-
1890105-06876-00 BOLT, FLANGEBOLT, FLANGE
-
19JN3-82617-01-00 SWITCHSWITCH
-
2090465-06038-00 CLAMPCLAMP
-
21JJ3-G6394-00-00 JOINTJOINT
