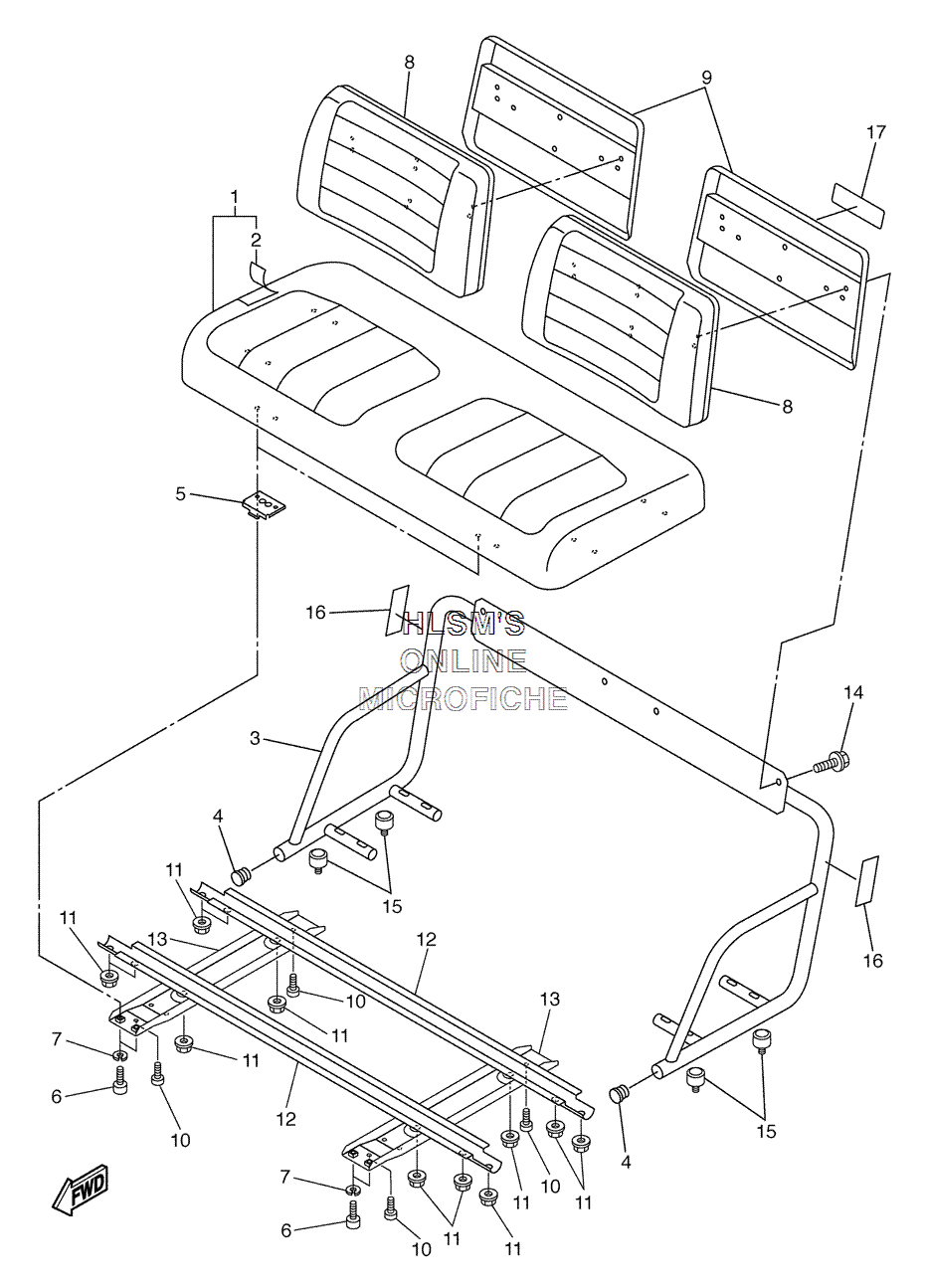

SEAT ASSY. для Yamaha PRO HAULER 1000 - 2004 года выпуска
-
№АртикулНазвание
-
1JW5-K8401-00-00 SEAT SUB-ASSY., CUSHIONSEAT SUB-ASSY., CUSHION
-
2JW5-K8404-00-00 ...COVER, SEAT...COVER, SEAT
-
3JU9-K8420-00-00 SEAT ASSY. 2SEAT ASSY. 2
-
4JU7-F111A-00-00 CAP, MAIN PIPECAP, MAIN PIPE
-
5JN3-K8426-01-00 HINGE, SEAT 1HINGE, SEAT 1
-
690111-06810-00 BOLTBOLT
-
790204-06807-00 WASHER, SPRINGWASHER, SPRING
-
8JW4-K8402-00-00 SEAT SUB ASSY., BACKSEAT SUB ASSY., BACK
-
9JJ3-K8413-10-00 COVER, SEAT BACKCOVER, SEAT BACK
-
1090167-04815-00 SCREW, TAPPINGSCREW, TAPPING
-
119560P-08200-00 NUTNUT
-
12JN6-K8121-00-00 REINFORCEMENT 1REINFORCEMENT 1
-
13JN6-K8122-02-00 REINFORCEMENT 2REINFORCEMENT 2
-
1490119-06837-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
15JU5-K8167-00-00 BUMPER, RUBBER 1BUMPER, RUBBER 1
-
165UG-K7764-00-00 LABEL, WARNING 4LABEL, WARNING 4
-
17JU7-K7767-00-00 LABEL, WARNING 7LABEL, WARNING 7
