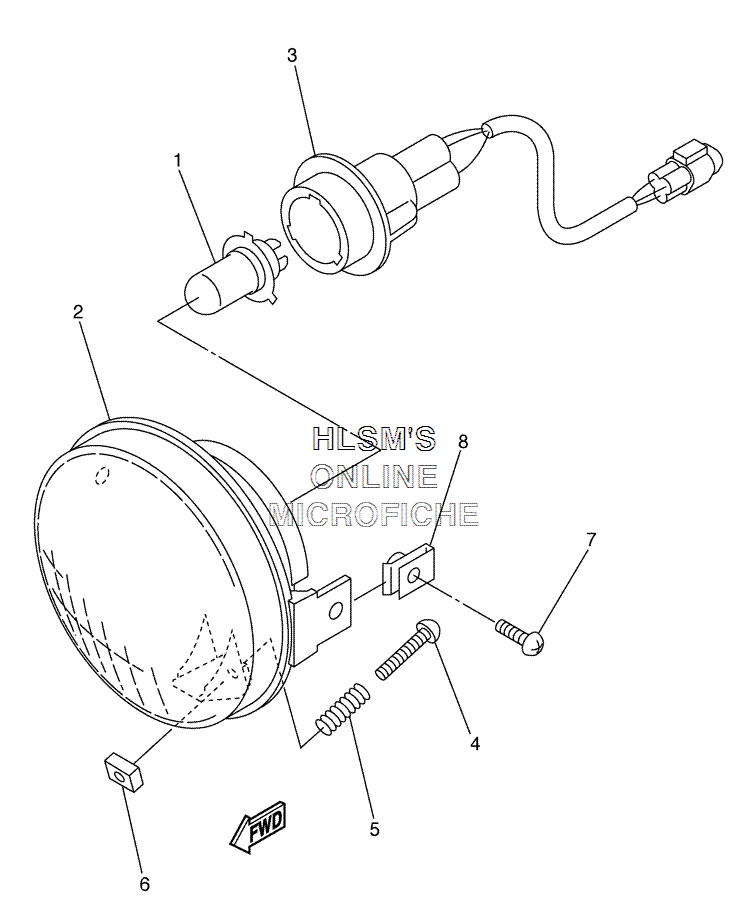

HEADLIGHT ASSY. для Yamaha PRO HAULER 1000 - 2004 года выпуска
-
№АртикулНазвание
-
15FU-H4314-00-00 BULB, HEADLIGHT(12V-30/30W)BULB, HEADLIGHT(12V-30/30W)
-
25FU-H4320-00-00 LENS ASSY.LENS ASSY.
-
35FU-H4340-00-00 SOCKET CORD ASSY. 1SOCKET CORD ASSY. 1
-
498507-03540-00 SCREW, PAN HEADSCREW, PAN HEAD
-
52GU-84332-00-00 SPRING, SCREWSPRING, SCREW
-
6JU7-H4334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
790150-05802-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
890183-05008-00 NUT, SPRINGNUT, SPRING
