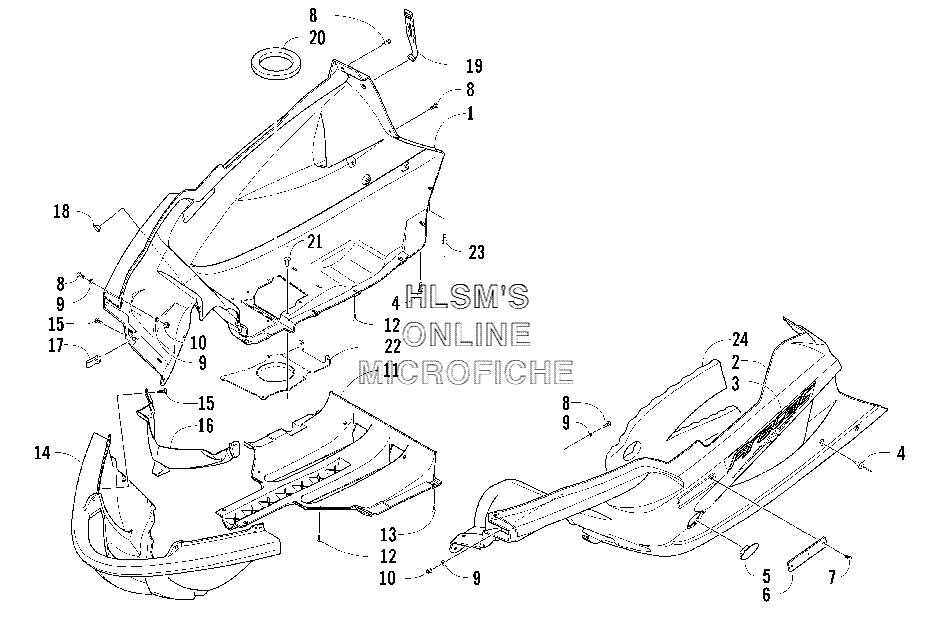

BELLY PAN ASSEMBLY для Arctic Cat Firecat 700 EFI Sno Pro 1'' (Green) - 2004 года выпуска
-
№АртикулНазвание
-
12706-224 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
22706-225 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
35611-316 DECAL, BELLY PAN (LOWER/RIGHT)DECAL, BELLY PAN (LOWER/RIGHT)
-
35611-317 DECAL, BELLY PAN (LOWER/LEFT)DECAL, BELLY PAN (LOWER/LEFT)
-
48061-708 RIVETRIVET
-
52606-650 PANEL, CLUTCH ACCESSPANEL, CLUTCH ACCESS
-
60606-526 REFLECTOR (FRONT/AMBER)REFLECTOR (FRONT/AMBER)
-
70623-269 CLIP, RETAININGCLIP, RETAINING
-
88017-581 SCREW, MACHINESCREW, MACHINE
-
98050-217 WASHERWASHER
-
108040-366 NUT, LOCKNUT, LOCK
-
113606-090 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
120623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
131623-031 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
143606-091 BUMPER (FRONT)BUMPER (FRONT)
-
150623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
162606-911 SCREEN (CENTER) BELLY PANSCREEN (CENTER) BELLY PAN
-
171623-030 NUT, SPEEDNUT, SPEED
-
183606-050 PIN, RESONATOR MOUNTINGPIN, RESONATOR MOUNTING
-
192606-624 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
201612-603 SEAL, EXHAUSTSEAL, EXHAUST
-
218061-508 RIVETRIVET
-
221612-686 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
238061-710 RIVETRIVET
-
240617-443 FOAM, BELLY PANFOAM, BELLY PAN
