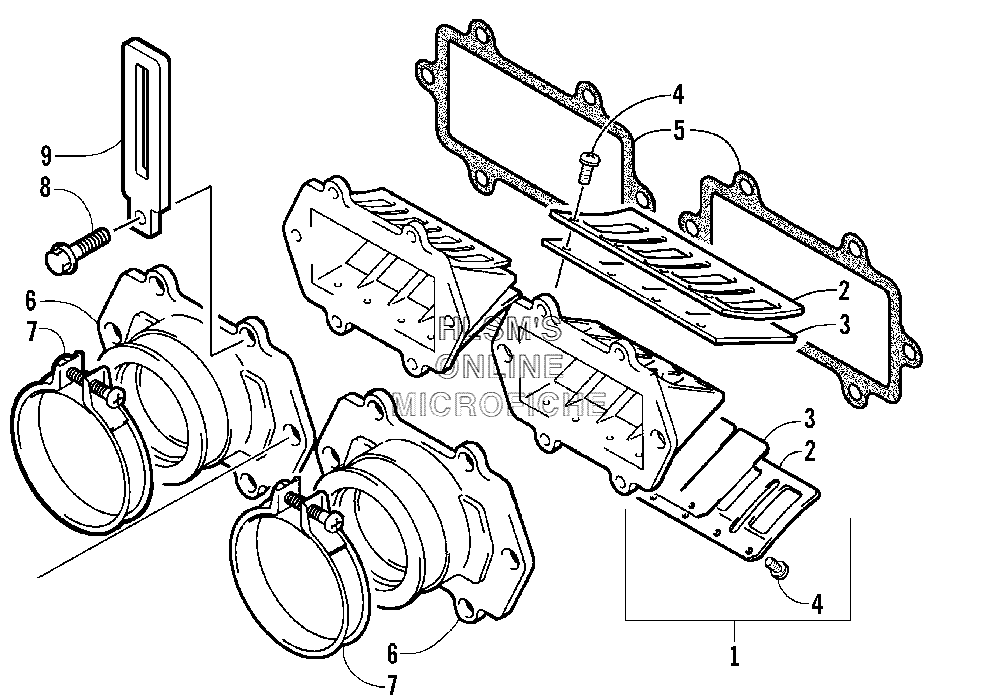

REED VALVE ASSEMBLY для Arctic Cat Firecat 700 EFI Sno Pro 1'' (Green) - 2004 года выпуска
-
№АртикулНазвание
-
13006-510 VALVE, REED, ASSEMBLY (INC. 2, 4)VALVE, REED, ASSEMBLY (INC. 2, 4)
-
23006-553 STOPPERSTOPPER
-
33005-878 VALVE, REEDVALVE, REED
-
43004-506 SCREWSCREW
-
53005-879 GASKET, REED VALVEGASKET, REED VALVE
-
63006-527 PIPE, INTAKEPIPE, INTAKE
-
73004-463 CLAMPCLAMP
-
83004-376 BOLTBOLT
-
93002-964 CLAMP, WIRECLAMP, WIRE
