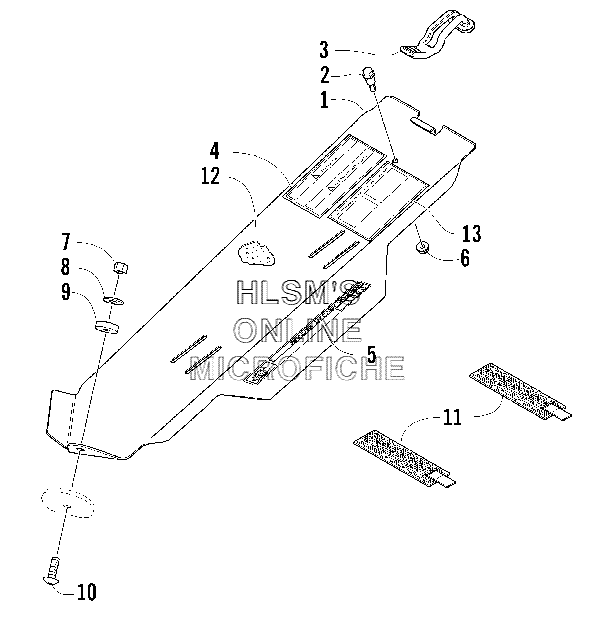

BELT GUARD ASSEMBLY для Arctic Cat Firecat 700 EFI Sno Pro 1'' (Green) - 2004 года выпуска
-
№АртикулНазвание
-
10607-757 GUARD, BELTGUARD, BELT
-
20623-855 SCREW, SHOULDERSCREW, SHOULDER
-
30607-659 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
41611-565 DECAL, WARNING, BELT GUARDDECAL, WARNING, BELT GUARD
-
53611-969 DECAL, "ACT, ROLLER DRIVEN CLUTCH"DECAL, "ACT, ROLLER DRIVEN CLUTCH"
-
68048-366 NUT, LOCKNUT, LOCK
-
78040-426 NUT, LOCKNUT, LOCK
-
88050-252 WASHERWASHER
-
91623-046 WASHER, RUBBERWASHER, RUBBER
-
108017-672 SCREW, MACHINESCREW, MACHINE
-
110707-582 RETAINER, DRIVE BELTRETAINER, DRIVE BELT
-
120617-450 FOAM, BELT GUARDFOAM, BELT GUARD
-
135611-862 DECAL, SPRING ADJUSTMENTDECAL, SPRING ADJUSTMENT
