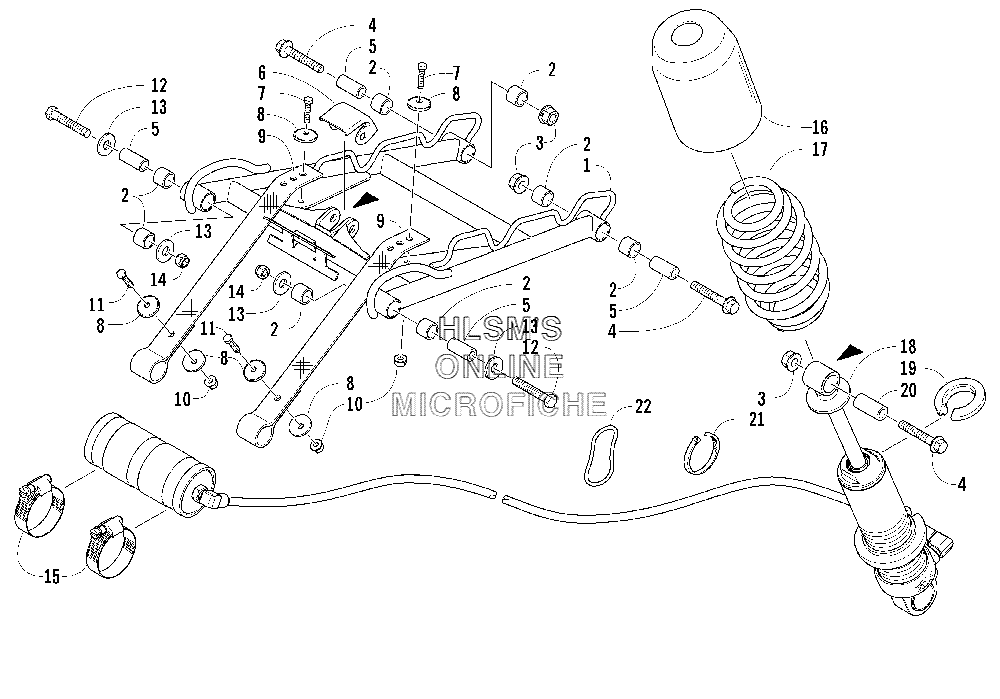

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat Firecat 700 EFI Sno Pro 1'' (Green) - 2004 года выпуска
-
№АртикулНазвание
-
11704-104 ARM SUSPENSION (FRONT) (INC. 2)ARM SUSPENSION (FRONT) (INC. 2)
-
20604-889 BUSHINGBUSHING
-
38048-486 NUT, LOCKNUT, LOCK
-
48020-228 SCREW, CAPSCREW, CAP
-
50104-629 SPACER ARM (FRONT)SPACER ARM (FRONT)
-
62604-112 GUIDE ARM (FRONT/CENTER)GUIDE ARM (FRONT/CENTER)
-
78002-040 SCREW, CAPSCREW, CAP
-
80623-875 WASHERWASHER
-
92604-140 STRAP, LIMITERSTRAP, LIMITER
-
108048-366 NUT, LOCKNUT, LOCK
-
118002-043 SCREW, CAPSCREW, CAP
-
128002-229 SCREW, CAPSCREW, CAP
-
130623-044 WASHERWASHER
-
148040-486 NUT, LOCKNUT, LOCK
-
150214-025 CLAMP, RESERVOIRCLAMP, RESERVOIR
-
160604-790 COVER, SHOCKCOVER, SHOCK
-
170704-936 SPRING, COMPRESSIONSPRING, COMPRESSION
-
181704-140 SHOCK ABSORBER ARM (FRONT)SHOCK ABSORBER ARM (FRONT)
-
191603-890 RETAINER, SPRINGRETAINER, SPRING
-
201603-531 AXLE, SHOCKAXLE, SHOCK
-
210123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
220616-032 O-RINGO-RING
