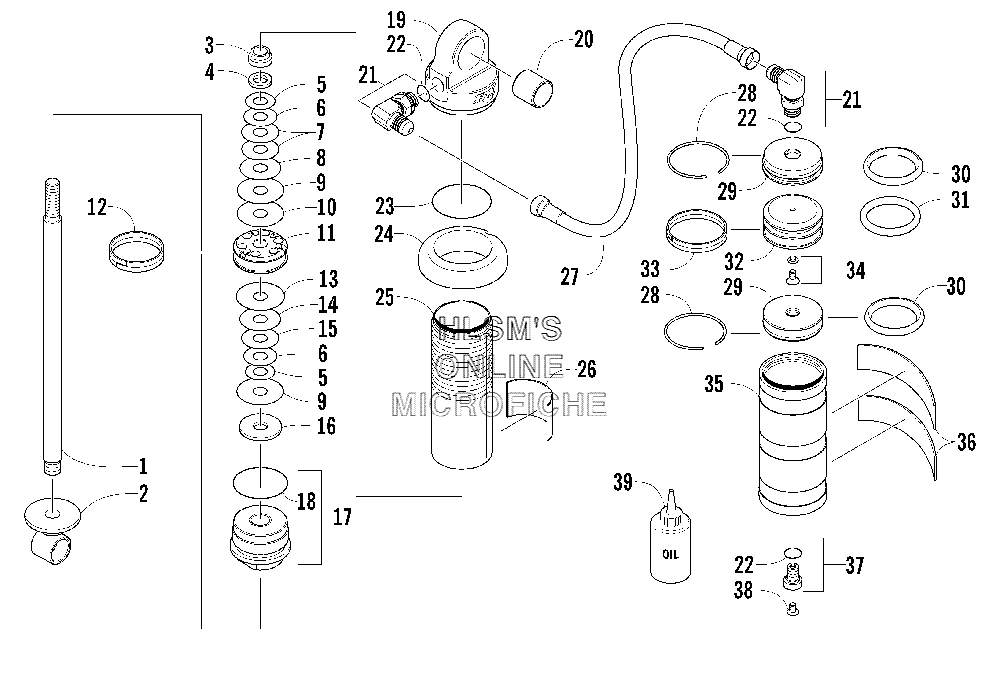

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat Firecat 700 EFI Sno Pro 1'' (Green) - 2004 года выпуска
-
№АртикулНазвание
-
-1704-140 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
12604-409 ROD, SHOCKROD, SHOCK
-
20604-625 EYELET, SHOCKEYELET, SHOCK
-
30603-301 NUT, LOCKNUT, LOCK
-
40603-389 WASHER, BACKUPWASHER, BACKUP
-
50603-335 VALVE, SHOCK 0.800 X 0.010 IN.VALVE, SHOCK 0.800 X 0.010 IN.
-
60603-338 VALVE, SHOCK 0.900 X 0.008 IN.VALVE, SHOCK 0.900 X 0.008 IN.
-
70603-341 VALVE, SHOCK 1.000 X 0.010 IN.VALVE, SHOCK 1.000 X 0.010 IN.
-
80603-344 VALVE, SHOCK 1.100 X 0.010 IN.VALVE, SHOCK 1.100 X 0.010 IN.
-
90603-347 VALVE, SHOCK 1.250 X 0.010 IN.VALVE, SHOCK 1.250 X 0.010 IN.
-
100603-883 VALVE, SHOCK 1.250 X 0.012 IN.VALVE, SHOCK 1.250 X 0.012 IN.
-
112604-412 PISTON, 0.055 IN., ORIFICEPISTON, 0.055 IN., ORIFICE
-
120603-292 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
130603-891 VALVE, SHOCK 1.300 X 0.012 IN.VALVE, SHOCK 1.300 X 0.012 IN.
-
140603-882 VALVE, SHOCK 1.100 X 0.012 IN.VALVE, SHOCK 1.100 X 0.012 IN.
-
150603-881 VALVE, SHOCK 1.000 X 0.012 IN.VALVE, SHOCK 1.000 X 0.012 IN.
-
160603-540 WASHER, TOP OUTWASHER, TOP OUT
-
172604-413 END CAP, SHOCK (INC. 18)END CAP, SHOCK (INC. 18)
-
181604-420 O-RINGO-RING
-
192603-310 END CAP, SHOCKEND CAP, SHOCK
-
202604-415 SLEEVE, SHOCKSLEEVE, SHOCK
-
211603-942 FITTING, ELBOW (INC. TWO NO. 22)FITTING, ELBOW (INC. TWO NO. 22)
-
221604-318 O-RINGO-RING
-
230603-438 O-RING, END CAPO-RING, END CAP
-
242603-221 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
-
252604-625 BODY, SHOCKBODY, SHOCK
-
262603-311 DECAL, SHOCKDECAL, SHOCK
-
272604-416 HOSE, SHOCKHOSE, SHOCK
-
280604-992 RING, RETAININGRING, RETAINING
-
291603-936 END CAP, RESERVOIREND CAP, RESERVOIR
-
300603-671 O-RINGO-RING
-
311603-236 O-RINGO-RING
-
322604-517 PISTON, RESERVOIRPISTON, RESERVOIR
-
331603-235 STRAP, PISTONSTRAP, PISTON
-
341604-316 SCREW, RELIEF W/O-RINGSCREW, RELIEF W/O-RING
-
351603-935 BODY, RESERVOIRBODY, RESERVOIR
-
362604-658 DECAL, SHOCKDECAL, SHOCK
-
370703-341 VALVE, PRESSURE, ASSEMBLY (INC. ONE NO. 22)VALVE, PRESSURE, ASSEMBLY (INC. ONE NO. 22)
-
380624-097 SCREW, MACHINESCREW, MACHINE
-
391639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
