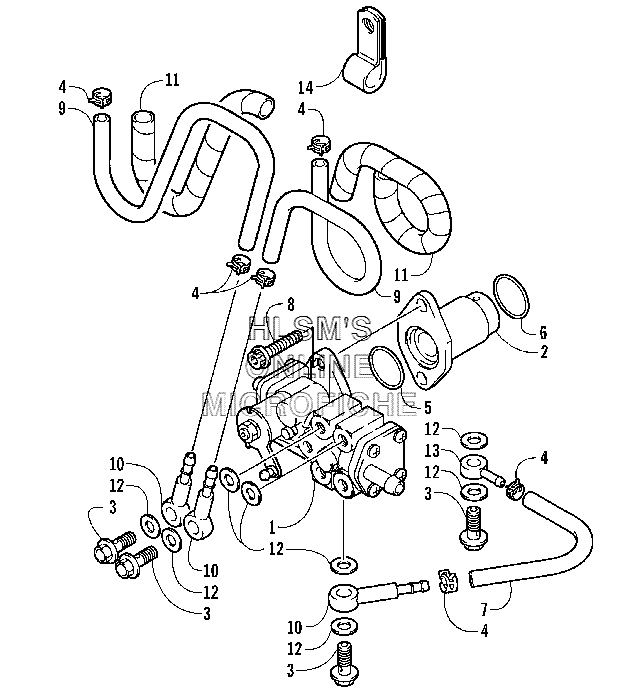

OIL PUMP для Arctic Cat Firecat 700 EFI Sno Pro 1'' (Green) - 2004 года выпуска
-
№АртикулНазвание
-
13006-724 PUMP, OILPUMP, OIL
-
23005-884 RETAINER, OIL PUMP INPUT SHAFTRETAINER, OIL PUMP INPUT SHAFT
-
33004-346 BOLTBOLT
-
43008-037 CLAMP, HOSECLAMP, HOSE
-
53008-030 O-RINGO-RING
-
63005-126 O-RINGO-RING
-
73005-357 HOSEHOSE
-
83004-893 BOLTBOLT
-
93008-035 HOSE, OILHOSE, OIL
-
103003-217 VALVE, CHECKVALVE, CHECK
-
113005-032 PROTECTOR, HOSEPROTECTOR, HOSE
-
123402-009 GASKETGASKET
-
133003-661 UNIONUNION
-
143005-696 CLAMPCLAMP
