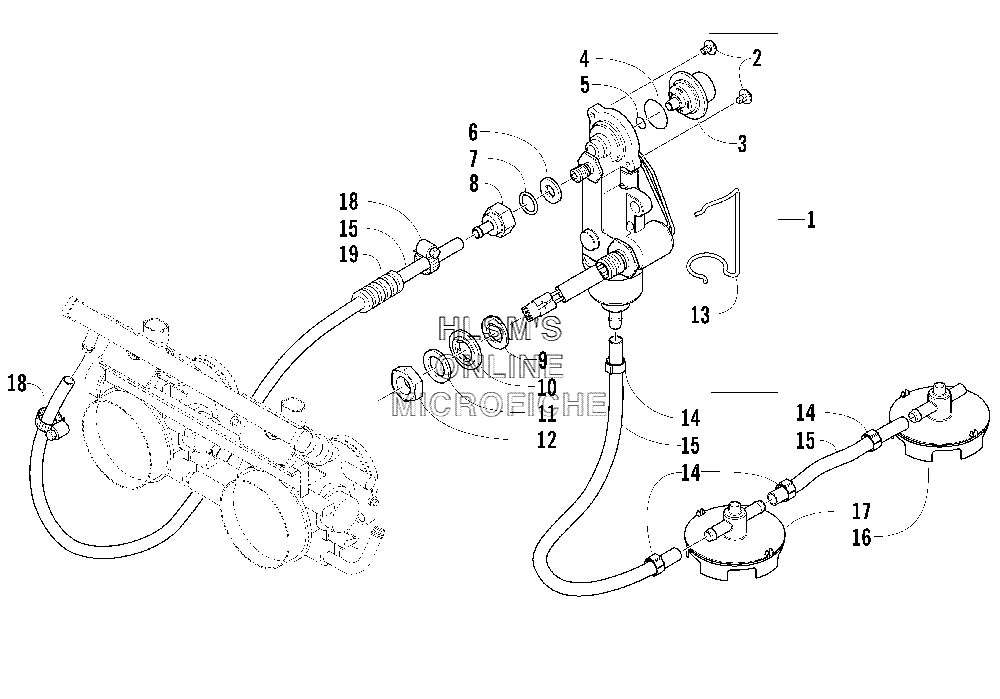

FUEL PUMP ASSEMBLY для Arctic Cat Firecat 700 EFI Sno Pro 1'' (Green) - 2004 года выпуска
-
№АртикулНазвание
-
11670-421 PUMP, FUEL, ASSEMBLY (INC. 2, 13)PUMP, FUEL, ASSEMBLY (INC. 2, 13)
-
21670-412 SCREWSCREW
-
31670-536 REGULATOR, PRESSUREREGULATOR, PRESSURE
-
41670-532 O-RING, REGULATORO-RING, REGULATOR
-
51670-533 O-RING, REGULATORO-RING, REGULATOR
-
61670-535 GROMMETGROMMET
-
71670-476 O-RINGO-RING
-
81670-475 NUT, FUEL PUMP FITTINGNUT, FUEL PUMP FITTING
-
91670-534 GROMMETGROMMET
-
101670-479 WASHER, SEALING, THREADEDWASHER, SEALING, THREADED
-
111670-478 WASHERWASHER
-
121670-477 NUT, MOUNTINGNUT, MOUNTING
-
131670-579 RETAINER, WIRERETAINER, WIRE
-
140610-563 CLAMP, HOSECLAMP, HOSE
-
150610-075 HOSE, GASLINE (10 FT)HOSE, GASLINE (10 FT)
-
161670-618 PICKUP, FUELPICKUP, FUEL
-
171670-617 PICKUP, FUELPICKUP, FUEL
-
180623-373 CLAMP, HOSECLAMP, HOSE
-
190716-558 CONDUIT, FLEXIBLE (10 FT)CONDUIT, FLEXIBLE (10 FT)
