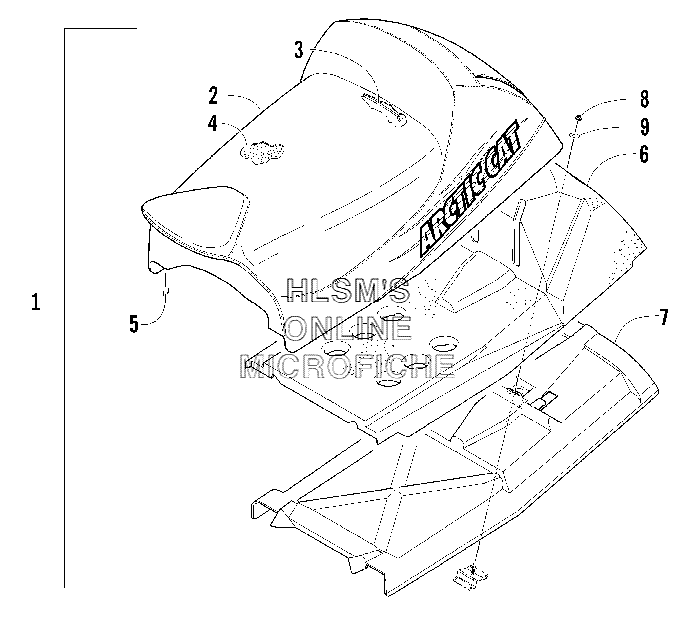

SEAT ASSEMBLY для Arctic Cat Firecat 700 EFI Sno Pro 1'' (Green) - 2004 года выпуска
-
№АртикулНазвание
-
17997-304 COMPLETE SEAT ASSEMBLY (INC. 2, 7)COMPLETE SEAT ASSEMBLY (INC. 2, 7)
-
22706-315 COVER, SEAT (INC. 3)COVER, SEAT (INC. 3)
-
33606-356 WIRE, SEATWIRE, SEAT
-
40717-182 FOAM, SEAT (UPPER)FOAM, SEAT (UPPER)
-
50624-528 STAPLESTAPLE
-
60617-438 FOAM, SEAT (LOWER)FOAM, SEAT (LOWER)
-
72606-907 BASE, SEATBASE, SEAT
-
88048-366 NUT, LOCKNUT, LOCK
-
90623-875 WASHER, CUPWASHER, CUP
