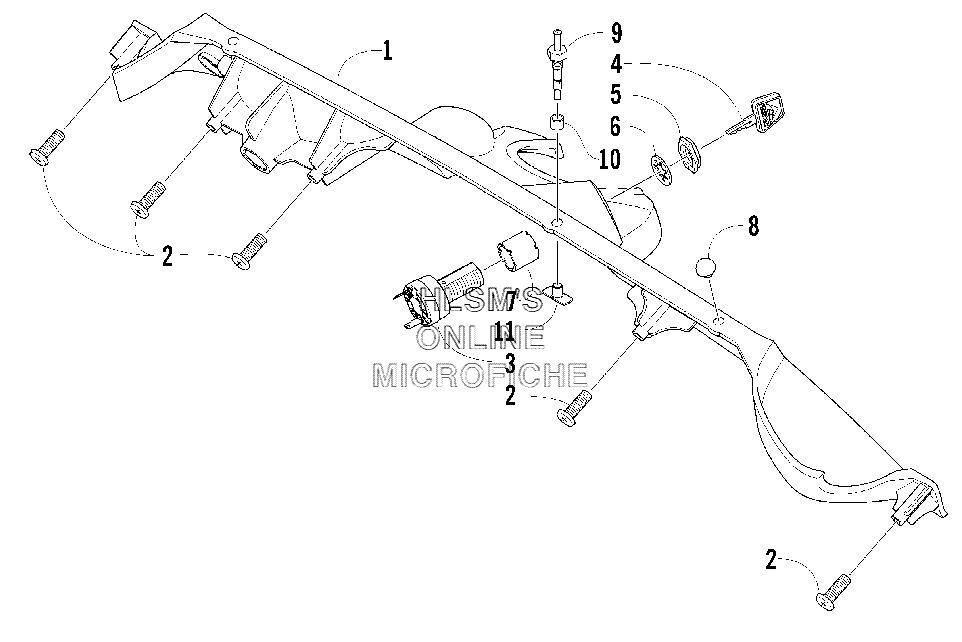

CONSOLE AND SWITCH ASSY. для Arctic Cat Sabercat 600 EFI LX (Red) - 2004 года выпуска
-
№АртикулНазвание
-
12706-252 CONSOLECONSOLE
-
20623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
30609-449 SWITCH, IGNITION (INC. 4)SWITCH, IGNITION (INC. 4)
-
50609-113 NUT, RETAININGNUT, RETAINING
-
60123-899 WASHER, IGNITION SWITCHWASHER, IGNITION SWITCH
-
70609-450 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
-
81612-287 BUMPER, MOLDEDBUMPER, MOLDED
-
90630-148 SWITCH, HOODSWITCH, HOOD
-
103606-355 SPACERSPACER
-
111623-184 T, NUTT, NUT
