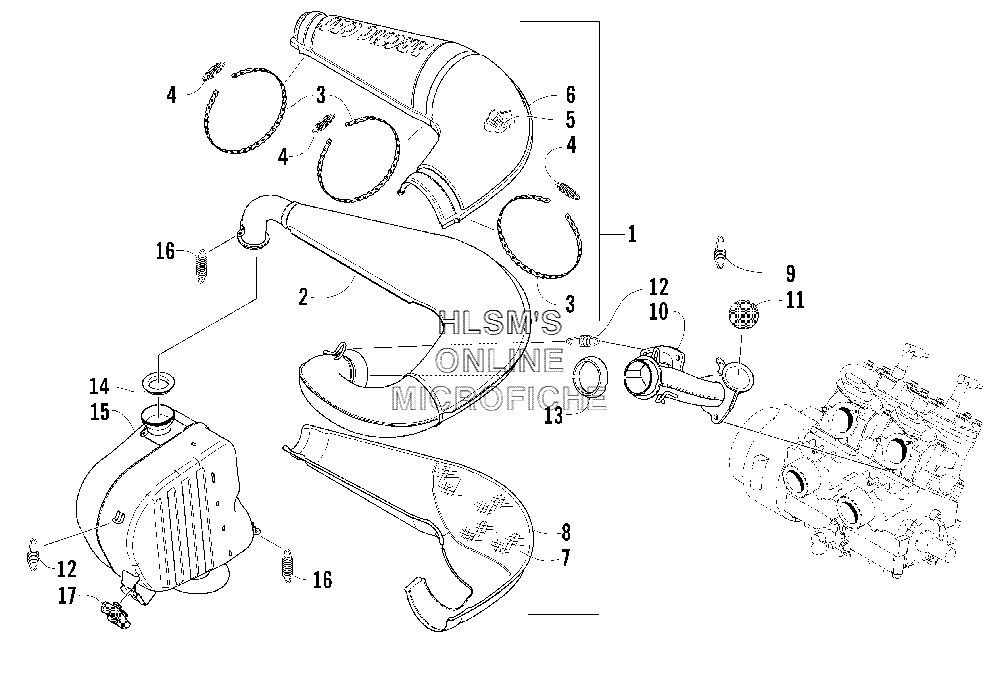

EXHAUST ASSY. для Arctic Cat Sabercat 600 EFI LX (Red) - 2004 года выпуска
-
№АртикулНазвание
-
10712-858 CHAMBER, EXPANSION, ASSY. (INC. 2, 8)CHAMBER, EXPANSION, ASSY. (INC. 2, 8)
-
20712-976 CHAMBER, EXPANSIONCHAMBER, EXPANSION
-
30624-526 TIE, PERFORATED BAND (5 FT)TIE, PERFORATED BAND (5 FT)
-
30624-541 TIE, PERFORATED BAND (25 FT)TIE, PERFORATED BAND (25 FT)
-
41612-178 SPRING, EXHAUSTSPRING, EXHAUST
-
51612-590 PACKING, EXPANSION CHAMBER (UPPER)PACKING, EXPANSION CHAMBER (UPPER)
-
61612-574 COVER, EXPANSION CHAMBER (UPPER)COVER, EXPANSION CHAMBER (UPPER)
-
71612-591 PACKING, EXPANSION CHAMBER (LOWER)PACKING, EXPANSION CHAMBER (LOWER)
-
81612-573 COVER, EXPANSION CHAMBER (LOWER)COVER, EXPANSION CHAMBER (LOWER)
-
90612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
100712-966 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
111612-678 MOUNT, EXPANSION CHAMBERMOUNT, EXPANSION CHAMBER
-
120612-820 SPRING, EXTENSIONSPRING, EXTENSION
-
131612-014 GASKET, EXHAUSTGASKET, EXHAUST
-
141612-323 GASKET, EXHAUST, TAILPIPEGASKET, EXHAUST, TAILPIPE
-
151712-022 RESONATORRESONATOR
-
160612-471 SPRING, EXHAUSTSPRING, EXHAUST
-
171612-685 MOUNT, RESONATOR, RUBBERMOUNT, RESONATOR, RUBBER
