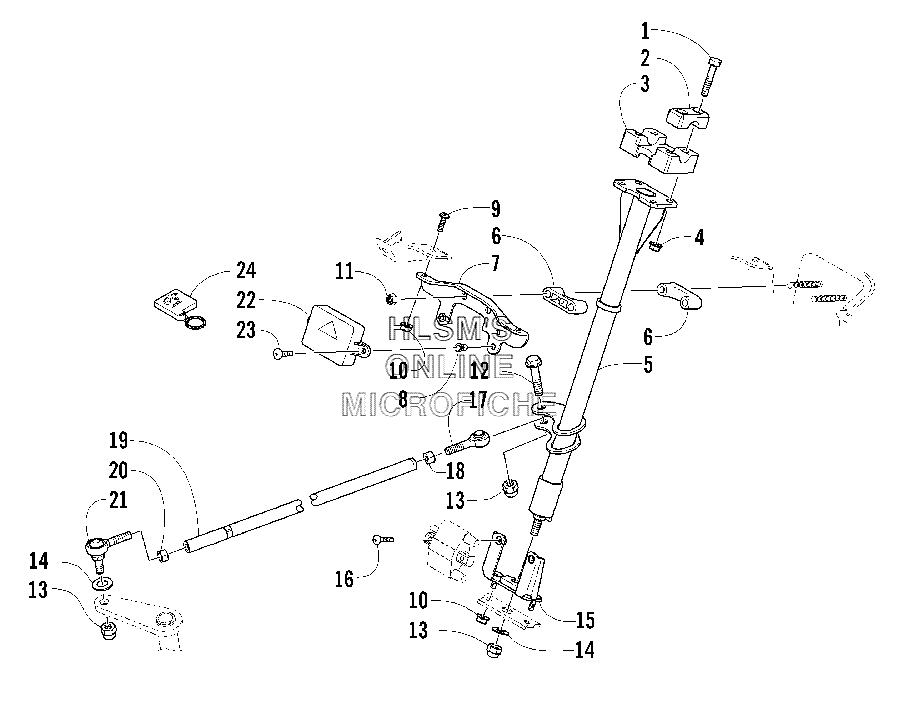

STEERING POST ASSY. для Arctic Cat Sabercat 600 EFI LX (Red) - 2004 года выпуска
-
№АртикулНазвание
-
18002-137 SCREW, CAPSCREW, CAP
-
20605-506 CAP, ADJUSTING BLOCKCAP, ADJUSTING BLOCK
-
30605-507 BLOCK, ADJUSTINGBLOCK, ADJUSTING
-
48048-426 NUT, LOCKNUT, LOCK
-
50705-844 POST, STEERINGPOST, STEERING
-
60605-576 BLOCK, MOUNTING, STEERING POSTBLOCK, MOUNTING, STEERING POST
-
70605-649 PLATE, RETAININGPLATE, RETAINING
-
70705-934 PLATE, RETAINING (INC. 8)PLATE, RETAINING (INC. 8)
-
80623-779 INSERTINSERT
-
98017-581 SCREW, MACHINESCREW, MACHINE
-
108048-366 NUT, LOCKNUT, LOCK
-
118040-426 NUT, LOCKNUT, LOCK
-
128004-225 SCREW, CAPSCREW, CAP
-
130623-025 NUT, LOCKNUT, LOCK
-
140623-044 WASHERWASHER
-
150705-947 STOP, STEERING POSTSTOP, STEERING POST
-
168017-402 SCREW, MACHINESCREW, MACHINE
-
170605-504 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
180623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
190605-672 TUBE, TIE RODTUBE, TIE ROD
-
200123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
210605-511 BALL JOINT, TIE ROD (LEFT)BALL JOINT, TIE ROD (LEFT)
-
220630-149 MODULE, CONTROL, REMOTE STARTERMODULE, CONTROL, REMOTE STARTER
-
230623-902 SCREW, MACHINESCREW, MACHINE
-
240630-146 CONTROL REMOTECONTROL REMOTE
